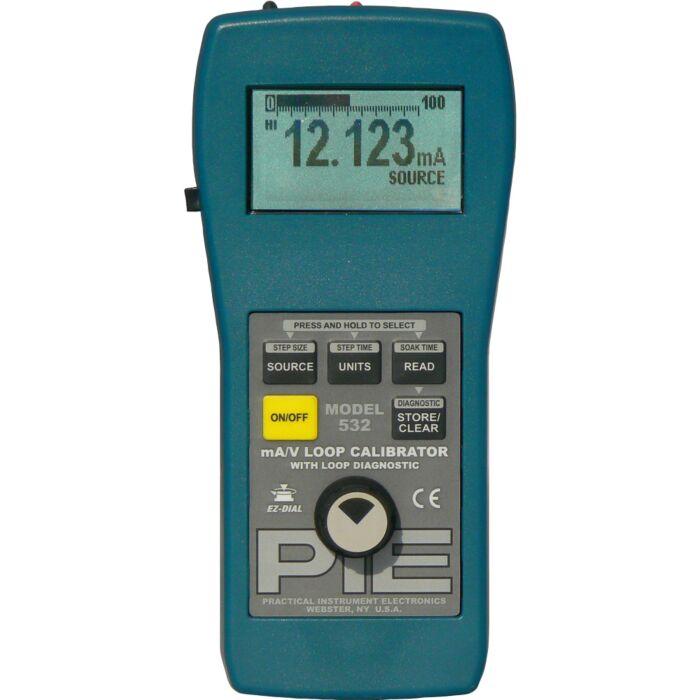

PIE 532
High Accuracy mA/V Calibrator Current Leakage Test, NIST
Order #: PIE 532
Mfg #: PIE 532
$1,989.00
PIE 532
High Accuracy mA/V Calibrator Current Leakage Test, NIST
Order #: PIE 532
Mfg #: PIE 532
Product Highlights
- True ±0.012% of reading accuracy
- Source and Read 0.000-24.000 mA
- Simulate 2-Wire Transmitters Power 2-Wire Transmitters and Read 0.000-24.000mA
- Display current in mA or -25.00-125.00 % of 4-20 mA
- Read 0.00 to ± 30.00 VDC with 4X over range ability
- Source 0.000 to 24.000 VDC with up to 20mA output
- Direct Calibration 1.000V to 5.000V
- Auto Step or Ramp
- Selectable step sizes, time in-between steps & soak time
- Full 5 Digit Display
- Uses (1) 9 Volt alkaline battery
- Superior battery life of 40 hours under typical continuous usage
- Easy access to battery compartment
- 240 VAC Tolerant
- Current Leak Detection
- Check all loop parameters such as Current, Voltage, Resistance, AC Voltage and Ground Fault errors
