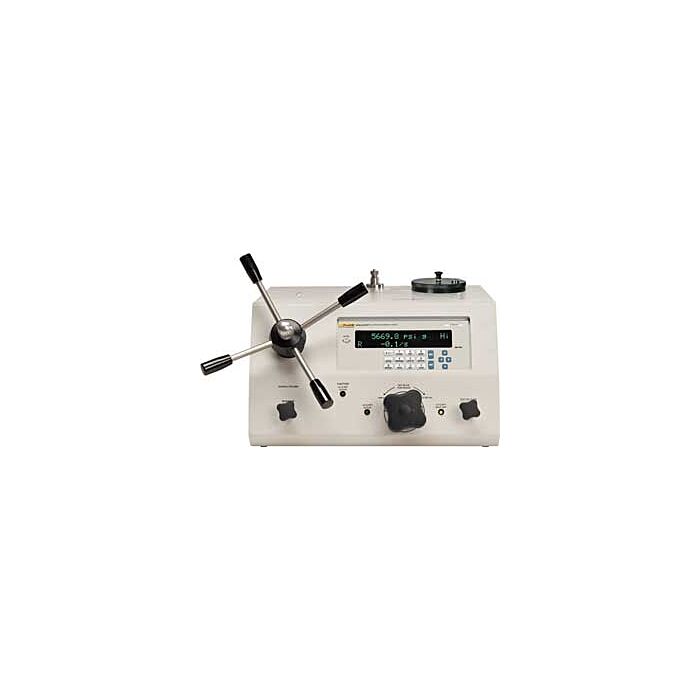

Fluke Calibration 6532-200M-B Deadweight Tester, E-DWT-H A200M/A20M, 4 to 200 MPa, 600 to 30000 PSI

Product Highlights

• One-year measurement uncertainty is ± 0.02% of reading from 10% to 100% with one Q-RPT, and from 1% to 100% with two Q-RPTs
• Low torque variable volume allows for pressure generation up to 200 MPa (30,000 psi) with minimal physical effort
• Separate fine adjustment tool for maximum, superfine control resolution
• User defined resolution and ready limits enable user to optimize performance based on DUT specifications
• High pressure isolation valve and pressure relief valve protect the low pressure reference transducer from over pressure when high pressure reference transducer is active
• AutoRange feature optimizes measurement and safety features for the specific range of the instrument being calibrated
• Simple rezeroing while vented at atmospheric pressure
• Simple, objective pressure “ready/not ready indicator with user adjustable criteria to ensure repeatable results among operators
• Not dependent on local gravity or ambient temperature
• Sets and reads any pressure value directly in any unit of measure, without moving weights
• Built-in priming system to fill system with test fluid and purge unwanted air to assure smooth operation
• Optional foot switch accessory allows hands-free data collection when running AutoTests

Each Unit Includes

• E-DWT-H Electronic Deadweight Tester with power supply and operating manual
• Vacuum liquid fill kit
• Test station quick-mount fitting
• NPT adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in
• BSP adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in
• Metric adapters: M20 x 1.5 and M14 x 1.5
