Order #: 9103-A-156-TRAN
Mfg #: 2431947

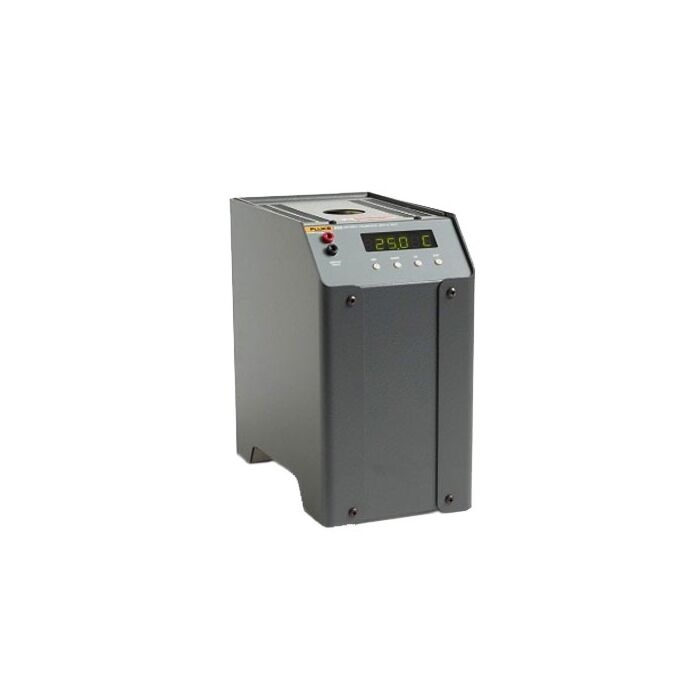

Fluke Calibration 9103-A Field Dry-Well Calibrator with Insert A (3103-2) 110V, 50/60Hz
Order #: 9103-A-156-TRAN
Mfg #: 2431947
Product Highlights
The 9103 covers below-ambient temperatures as low as –25 °C. The 9103 is stable to ±0.02 °C, and its display is calibrated to an accuracy of ±0.25 °C at all temperatures within its range. In just eight minutes, 0 °C is reached, and 100 °C is reached in six minutes, so your time is spent calibrating—not waiting.
The 9103 reaches temperatures 50 °C below ambient, so –25 °C is reached under normal ambient conditions. Our competitors like to advertise their units as reaching –45 °C when they really mean –45 °C below ambient, which typically means it will go to –20 °C. Our unit does not require you to work in a walk-in freezer to achieve its full advertised range.
Choose one of three removable inserts sized for probes from 1/16 inch to 1/2 inch in diameter. Insert A handles a full range of probe sizes with a single well of each size. Insert B features two wells each of 3/8, 1/4, and 3/16 inches in diameter for doing comparison calibrations. Insert C has six 1/4-inch-diameter wells for multiple probe calibrations, and Insert D has three pairs of metric sized wells.
- Range: –25°C to 140°C (–13°F to 284°F) at 23°C ambient
- Accuracy: ±0.25°C
- Stability: ±0.02°C at –25°C ±0.04°C at 140°C
- Well-to-Well Uniformity: ±0.1°C between similarly sized wells
- Heating Times: 18 minutes from ambient to 140°C
- Cooling Times: 20 minutes from ambient to –25°C
- Stabilization Time: 7 minutes
- Immersion Depth: 124mm (4.875in)
- Size (W x H x D): 143 x 261 x 245mm (5.63 x 10.25 x 9.63in)
- Weight: 12 lb (5.7 kg)
- NIST-Traceable Certificate Data at: –25°C, 0°C, 25°C, 50°C, 75°C, 100°C, and 140°C
Each Unit Includes
- Nist Traceable Certificate
- Insert A
Webinars
Automating and Documenting Temperature Calibration Webinar with Fluke Calibration
- Fluke Calibration 3103-3 Insert B with Comparison holes for the 9011 & 9103Insert, "B" with Comparison holes for the 9011 & 9103
Order #: 3103-3-FLUKE
Mfg #: 1651091
Availability: Call for availabilitySpecial Price $427.45 Regular Price $515.00 - Fluke Calibration 9308 Hard Carrying CaseHard Carrying Case
Order #: 9308
Mfg #: 1658575
Availability: Ships in 3-4 weeksSpecial Price $289.67 Regular Price $349.00 - Fluke Calibration 3103-2 Insert A with Miscellaneous holes for the 9011 & 9103Insert, "A" with Misc holes, for the 9011 & 9103
Order #: 3103-2-FLUKE
Mfg #: 1651084
Availability: Call for availabilitySpecial Price $458.99 Regular Price $553.00 - Fluke Calibration 3103-6 Insert D with 3mm (2), 4mm (2) 6mm (2) for the 9011 & 9103Insert, "D" with 3mm(2), 4mm(2) 6mm(2) for the 9011 & 9103
Order #: 3103-6
Mfg #: 1884839
Availability: Ships in 3-4 weeksSpecial Price $330.34 Regular Price $398.00
-
Fluke Calibration 9103-B Field Dry-Well Calibrator with Insert B (3103-3)Field Dry-Well Calibrator with Insert B (3103-3) NIST$5,244.00
-
Fluke Calibration 9103-C-156 Field Dry-Well Calibrator with Insert (3103-4) 110V, 50/60HzField Dry-Well Calibrator with Insert (3103-4) 110V, 50/60Hz$5,244.00
-
Fluke Calibration 9103-D-156 Field Dry-Well, -25C with 3103-6 insert, 115VDry-Well, -25C Field w/3103-6 115V$5,244.00
