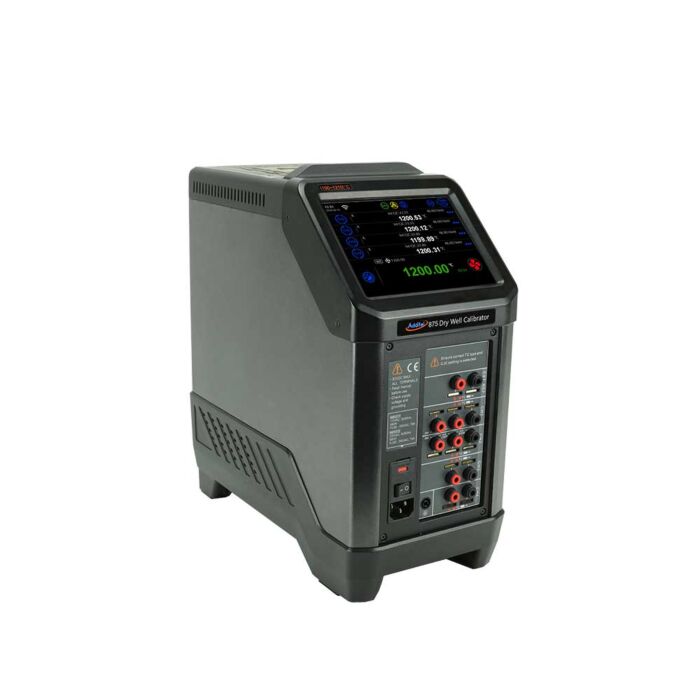

Additel ADT875-1210-HR-220V Thermocouple Calibration Furnace, 100C to 1210C, Insert HR, 220V
Order #: ADT875-1210-HR-220V
Mfg #: ADT875-1210-HR-220V
Product Highlights
Thermocouple Calibration Furnace, 100°C to 1210°C, Insert HR, 220V
- Temperature control from 100°C to 1210°C
- Two models to choose from: Reference (ADT878) and Standard (ADT875)
- Display Accuracy of ±1.5°C (ADT878)
- 4 on-board measurement channels (PC option)
- Process calibrator option provides a multi-channel readout for TCs, switches and transmitters, including task documentation and HART communication
- Portable, rugged and quick to temperature
- Self-calibration feature (PC option)
- Multi-zone temperature control
- Internal and external sensor control (PC option)
- Metallic interchangeable inserts
- Wi-Fi and Bluetooth capable
- Color touch screen display
- ISO 17025-accredited calibration w/data included
- Patent pending technology
We understand the many challenges associated with thermocouple calibration work. That is precisely why we decided to introduce the ADT875-1210 and ADT878-1210 Thermocouple Calibration Furnaces.
With an unmatched stability, uniformity and an optional on-board process calibrator, calibrating thermocouples has never been easier. With two separate units to choose from, the ADT875-1210 and ADT878-1210 furnaces include a patented multi-zone temperature control which provides a never before seen, highly stable and uniform heat source to ensure you get the best possible results from a modest investment. With metallic interchangeable inserts, users have the flexibility needed to service a wide variety of UUT
-
Additel 9080 Cold Junction Kit (TC Plug, Cable, S, R, B, K, J, T, E, N)Cold Junction Kit (incl TC Plug, Cable, S,R,B,K,J,T,E,N)Order #: 9080ADT
Mfg #: 9080
Availability: Ships in 2-3 weeks$496.00 -
Additel ADT110-875-TC-INSERT-AR Insert AR for ADT875-1210 Thermocouple Calibration FurnaceInsert AR for ADT875-1210 Thermocouple Calibration Furn.
Order #: ADT110-875-TC-INSERT-AR
Mfg #: ADT110-875-TC-INSERT-AR
Availability: Ships in 2-3 weeks$1,176.00 -
Additel ADT110-875-TC-INSERT-BS Insert BS for ADT875-1210 Thermocouple Calibration FurnaceInsert BS for ADT875-1210 Thermocouple Calibration Furn.
Order #: ADT110-875-TC-INSERT-BS
Mfg #: ADT110-875-TC-INSERT-BS
Availability: Ships in 2-3 weeks$1,176.00 -
Additel ADT110-875-H-INSERT-B Insert B for ADT875, High TemperatureInsert B for ADT875, High Temp
Order #: ADT110-875-H-INSERT-B
Mfg #: ADT110-875-H-INSERT-B
Availability: Ships in 2-3 weeks$480.00 -
Additel ADT110-875-H-INSERT-C Insert C for ADT875, High TemperatureInsert C for ADT875, High Temp
Order #: ADT110-875-H-INSERT-C
Mfg #: ADT110-875-H-INSERT-C
Availability: Ships in 2-3 weeks$480.00 -
Additel ADT110-875-TC-INSERT-ES Insert ES for ADT875-1210 Thermocouple Calibration FurnaceInsert ES for ADT875-1210 Thermocouple Calibration Furn.
Order #: ADT110-875-TC-INSERT-ES
Mfg #: ADT110-875-TC-INSERT-ES
Availability: Ships in 2-3 weeks$1,176.00 -
Additel ADT110-875-H-INSERT-Z Insert Z for ADT875, High Temperature, BlankInsert Z for ADT875, High Temp Blank
Order #: ADT110-875-H-INSERT-Z
Mfg #: ADT110-875-H-INSERT-Z
Availability: Ships in 2-3 weeksSpecial Price $298.30 Regular Price $314.00 -
Additel ADT110-875-L-INSERT-B Insert B for ADT875, Low TemperatureInsert B for ADT875, Low Temp
Order #: ADT110-875-L-INSERT-B
Mfg #: ADT110-875-L-INSERT-B
Availability: Ships in 2-3 weeks$375.00 -
Additel ADT110-875-L-INSERT-C Insert C for ADT875, Low TemperatureInsert C for ADT875, Low Temp
Order #: ADT110-875-L-INSERT-C
Mfg #: ADT110-875-L-INSERT-C
Availability: Ships in 2-3 weeks$375.00 -
Additel 9915-875 Carrying Case for ADT875-1210 or ADT878-1210 with WheelsCarrying Case for ADT875-1210 or ADT878-1210 with Wheels
Order #: 9915-875
Mfg #: 9915-875
Availability:In stock$779.00 -
Additel ADT110-875-L-INSERT-Z Insert Z for ADT875, Low Temperature, BlankInsert Z for ADT875, Low Temp Blank
Order #: ADT110-875-L-INSERT-Z
Mfg #: ADT110-875-L-INSERT-Z
Availability: Ships in 2-3 weeks$249.00 -
Additel ADT110-875-L-SHRT-IKIT ADT875 Drywell Short Probe KitADT875 Drywell Short Probe Kit
Order #: ADT110-875-L-SHRT-IKIT
Mfg #: ADT110-875-L-SHRT-IKIT
Availability: Ships in 2-3 weeks$2,047.00 -
Additel ADT110-875-L-SHRT-MKIT ADT875 Drywell Short Probe KitADT875 Drywell Short Probe Kit
Order #: ADT110-875-L-SHRT-MKIT
Mfg #: ADT110-875-L-SHRT-MKIT
Availability: Ships in 2-3 weeks$2,047.00 -
Additel AM1710-BEND-ADT-17025 100Ohm Secondary PRT, -40 to 160C, 1/4", 90deg Bend100Ohm Secondary PRT, -40 to 160C, 1/4", 90deg Bend at 7.5ô
Order #: AM1710-BEND-ADT-17025
Mfg #: AM1710-BEND-ADT-17025
Availability: Ships in 2-3 weeks$1,392.00 -
Additel AM1730-12-ADT Secondary PRT, -45 to 420C, 1/4"X12", 100 OmegaSecondary PRT, -45 to 420C 1/4"X12", 100 Omega
Order #: AM1730-12-ADT
Mfg #: AM1730-12-ADT
Availability: Ships in 2-3 weeks$1,757.00 -
Additel AM1730-12-ADT-17025 100Ohm Secondary PRT, -200 to 420C, 1/4"X12", with connector100Ohm Secondary PRT, -200 to 420degC, 1/4"X12", w/connector
Order #: AM1730-12-ADT-17025
Mfg #: AM1730-12-ADT-17025
Availability: Ships in 2-3 weeks$1,705.00 -
Additel AM1730-BEND-ADT-17025 100Ohm Secondary PRT, -200 to 420C, 1/4", 90deg Bend100Ohm Secondary PRT, -200 to 420C, 1/4",90deg Bend at 9.75ô
Order #: AM1730-BEND-ADT-17025
Mfg #: AM1730-BEND-ADT-17025
Availability: Ships in 2-3 weeks$1,865.00 -
Additel AM1751-12-ADT Secondary PRT, -45 to 660C, 1/4"X12", 100 OmegaSecondary PRT, -45 to 660C 1/4"X12", 100 Omega
Order #: AM1751-12-ADT
Mfg #: AM1751-12-ADT
Availability: Ships in 2-3 weeks$2,117.00 -
Additel AM1760-12-ADT Secondary Reference SPRT, 100 Ohm, 12" x 1/4" -200C to 670CSecondary Reference SPRT 100 Ohm, 12" x 1/4" -200C-670C
Order #: AM1760-12-ADT
Mfg #: AM1760-12-ADT
Availability: Ships in 2-3 weeks$3,551.00
| General Specifications | ||
|---|---|---|
| 875-1210 | 878-1210 | |
| Temperature Range | 100°C to 1210°C | |
| Display Accuracy | ±1.2°C @ 100°C | ±1.0°C @ 100°C |
| ±1.2°C @ 300°C | ±1.0°C @ 300°C | |
| ±1.2°C @ 600°C | ±1.0°C @ 600°C | |
| ±1.6°C @ 900°C | ±1.2°C @ 900°C | |
| ±2.0°C @ 1210°C | ±1.5°C @ 1210°C | |
| Stability | ±0.1°C | |
| Axial Uniformity (20mm zone) | ±0.6°C @ 100°C | ±0.4°C @ 100°C |
| ±0.9°C @ 300°C | ±0.6°C @ 300°C | |
| ±1.2°C @ 600°C | ±0.8°C @ 600°C | |
| ±1.5°C @ 900°C | ±1°C @ 900°C | |
| ±1.5°C @ 1210°C | ±1°C @ 1210°C | |
| Radial Uniformity | ±0.2°C @ 100°C | ±0.2°C @ 100°C |
| ±0.3°C @ 300°C | ±0.3°C @ 300°C | |
| ±0.4°C @ 600°C | ±0.4°C @ 600°C | |
| ±0.8°C @ 900°C | ±0.6C @ 900°C | |
| ±1°C @ 1210°C | ±0.8°C @ 1210°C | |
| Loading Effect | ±0.5°C | |
| Environmental Conditions | 8°C to 38°C guaranteed accuracy | |
| 0°C to 50°C, 0% to 90% RH non-condensing, | ||
| 3000 M altitude for normal operation | ||
| Storage Conditions | -20°C to 60°C | |
| Immersion Depth | XR style inserts = 138 mm (5.43") | |
| XS style inserts = 116 mm (4.57") | ||
| (see insert ordering info for more details) | ||
| Insert Size - OD | 24.8 mm (0.98 inches) | |
| Heating Time | 50 min: 23°C to 1210°C | |
| Cooling Time | 50 mins:1210°C to 300°C 50 mins: 300°C to 50°C | 55 mins:1210°C to 300°C 55 mins: 300°C to 50°C |
| Typical Time to Stability | 15 min | |
| Resolution | 0.01°C | |
| Units | °C, °F, and K | |
| Display | 6.5 in (165 mm) color touch screen | |
| Size (H x W x D) | 345 x 170 x 330 mm (13.6 x 6.7 x 13.0 in) | |
| Weight | 10.6 kg (23.4 lbs) | |
| Power Requirements | 115 V AC (±10%) or 230 V AC (±10%), switchable, 45-65 Hz, 580 W | |
| Mechanical Testing | Vibration: 2 g (10-500 Hz), 30 min for 2 sides | |
| Impact: 4 g three times | ||
| Drop test: 500 mm (19.6 in) | ||
| Communication | USB A, USB B, RJ45, WiFi, Bluetooth | |
| Localization | English, Chinese, Japanese, Russian, German | |
| Warranty | 1 year | |
| Input Specifications (Process Calibrator [PC] Option) | ||
|---|---|---|
| 875-1210 | 878-1210 | |
| TC Measurement Channels | Patented TC terminals: | |
| Accepting S, R, K, B, N, E, J, T, L, and U | ||
| TC Measurement Accuracy Type K Ch. 1-4 (excluding sensor) | ±0.182°C @ 100°C | ±0.172°C @ 100°C |
| ±0.266°C @ 300°C | ±0.236°C @ 300°C | |
| ±0.310°C @ 600°C | ±0.251°C @ 600°C | |
| ±0.397°C @ 900°C | ±0.304°C @ 900°C | |
| ±0.517°C @1210°C | ±0.382°C @ 1210°C | |
| TC Range | €"75 mV to 75 mV (UUT Channels 1-4) | |
| €"18 mV to 18 mV (Reference Channel) | ||
| TC Resolution | 0.0001 mV, Input Impedance < 10Î
| |
