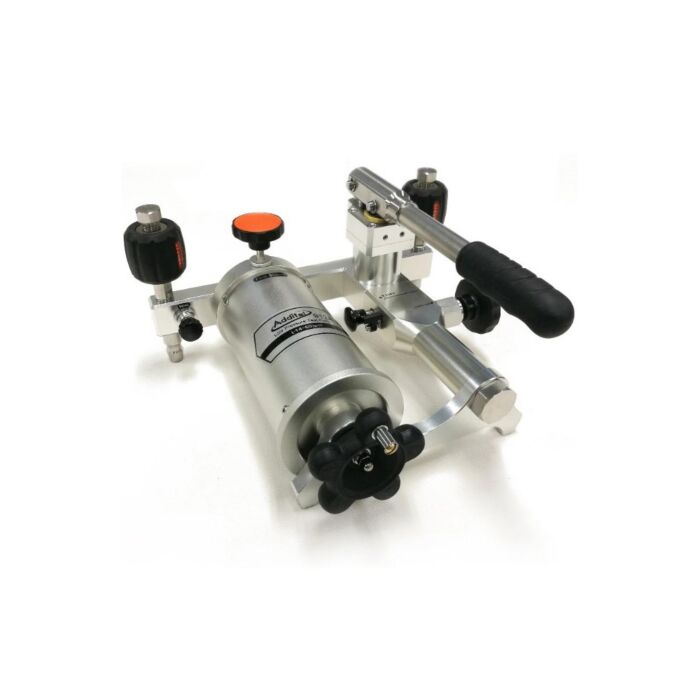

Additel ADT912A-N Low Pressure Test Pump, 1/4NPT F, -14 to 60 psi

Product Highlights

The 912A Pneumatic Pressure Test Pump is a hand operated pressure pump designed to generate pressure from 95% vacuum to 60psi (4bar). A high-quality screw press is designed for fine pressure adjustment, with an adjustment resolution up to 0.1 Pa (0.001 mbar). The 912A is a very stable low pressure calibrator. It makes use of an isothermal bellows chamber which is designed for reducing the possible effects of environmental temperature change. Most pumps make use of a check valve (non-returning valve) and are not well insulated which will cause large fluctuations in pressure with a change in ambient temperature or when the unit is touched. The 912A does not use a check valve and is remarkably stable. Two hand-tight connectors installed on the pump allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches. The 912A is an ideal comparison test pump for low pressure application.

It can be used in calibrating pressure gauges, transmitters, or other pressure measuring instruments.

• Pressure port type:N -1/4NPT female
• Media: Air
• Generated Pressure Range: 95% vacuum to 60 psi (4 bar) positive pressure
• Adjustment Resolution: 0.1 Pa (0.001 mbar)
• Material: Ram/adapters: SS, Body: SS, aluminum Seals: Buna-N, PTFE, Copper Alloy
• Piston volume: 1.6 in3 (27 ml )
• Connection: Hand-tight connectors for both test gauge and reference gauge. 1/4NPT female, 1/2NPT female, 1/4BSP female, 1/2BSP female, or M20X1.5 female
• Dimensions: Height: 5.51'' (140 mm) Base: 10.75'' (273 mm) x 10.16'' (258 mm)
• Weight: 6.2 lb (2.8 kg)
• Warranty: 1 year
• Portable: Only 6.2 lb!
• High-quality screw press for fine pressure adjustment
• Isothermal chamber: the pressure chamber is insulated to reduce the influence from environmental temperature changes
• Specially designed bellows minimize leakage to guarantee excellent stability
• Shut-off valve closes the air in the isothermal chamber during calibration
• Built-in gas-liquid isolator protects the pump from moisture and dirt
• Easy-to-use
• Hand-tight Quick Connectors allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches

Each Unit Includes

• O-ring: 20 pcs
