Order #: AM1640-9-ADT-17025
Mfg #: AM1640-9-ADT-17025

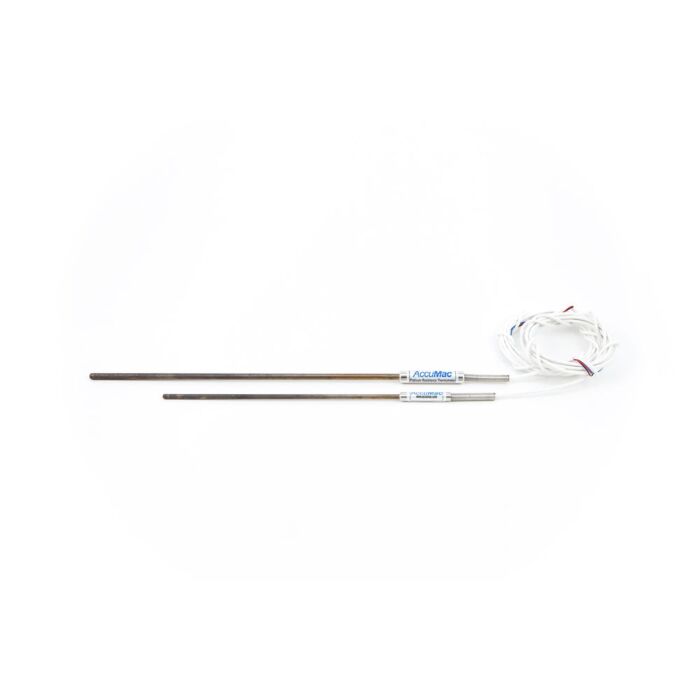

Additel AM1640-9-ADT-17025 100Ohm Precision Industrial PRT, -200 to 420C, 3/16"X9", with connector
Order #: AM1640-9-ADT-17025
Mfg #: AM1640-9-ADT-17025
![Loading...](https://www.transcat.com/static/version1721668873/frontend/Transcat/default/en_US/images/loader-1.gif)
Product Highlights
100 Ohm Precision Industrial PRT, -200 to 420°C, 3/16"X9", with Lemo smart connector, 2 m cable length, including accredited calibration.
- Temperature Range: -200°C to 670°C
- Accuracy: <0.035°C
- Long Term Drift: <0.03°C
- Short-term Stability: <0.01°C
- Durable and Shock Resistant
- Temperature Coefficient 0.00385 Ω/ Ω/ °C
- Inconel™ Sheath on AM1660/1640 Models
The AM1660 and AM1640 series Precision Industrial PRTs (IPRTs) are rugged probes with excellent accuracy and stability. These IPRTs cover a wide range of temperatures from -200°C to 670°C, with an amazing accuracy of ±0.035°C and a short term stability of ±0.01°C. To reach the best performance in stability and repeatability, the wire-wound sensing element has been specially designed to protect the platinum sensing wire from contamination at high temperatures. A unique supporting structure and filling material provide the best balance among the hysteresis effect, mechanical shock and thermal shock performance. This probe conforms to the standard 385 curve and comes standard with an NIST-traceable certificate of calibration.
AM1660-12 | AM1640-12 | AM1640-9 | |
---|---|---|---|
Temperature Range | -200°C to 670°C | -200°C to 420°C | |
Nominal Resistance at 0°C | 100 Ω | ||
Temperature Coefficient | 0.00385 Ω/Ω/°C | ||
Accuracy | <0.035°C at 0°C | ||
Long Term Drift at 0.01°C | <0.03°C at 0°C after 100 hours at maximum temperature | ||
Short Term Stability | <0.01°C | ||
Thermal Shock | <0.007°C after 10 thermal cycles from minimum to maximum temperatures | ||
Hysteresis | ≤0.01°C | ||
Self-heating | 50 mW/°C | ||
Response Time | 5 seconds | ||
Measurement Current | 0.5 mA or 1 mA | ||
Sensor Length | 1.26 in (32 mm) | ||
Sensor Location | 0.2 in (5 mm) from tip | ||
Insulation Resistance | >1000 MΩ at room temperature | ||
Sheath Material | Inconel™ | ||
Sheath Dimensions | 0.25 in (6.35 mm) (OD) x 12 in (305 mm) (L) | 0.25 in (6.35 mm) (OD) x 12 in (305 mm) (L) | 0.188 in (4.775 mm) (OD) x 9 in (228.6 mm) (L) |
External Leads | Teflon™ insulated copper wire, 4 leads, 6.5 feet (2 meters) | ||
Handle Dimension | 0.59 in (15 mm) (OD) x 2.56 in (65 mm) (L) | 0.59 in (15 mm) (OD) x 2.56 in (65 mm) (L) | 0.39 in (10 mm) (OD) x 1.97 in (50 mm) (L) |
Handle Temperature Range | -50°C to 180°C | ||
Calibration | NIST-Traceable calibration with data |
-
