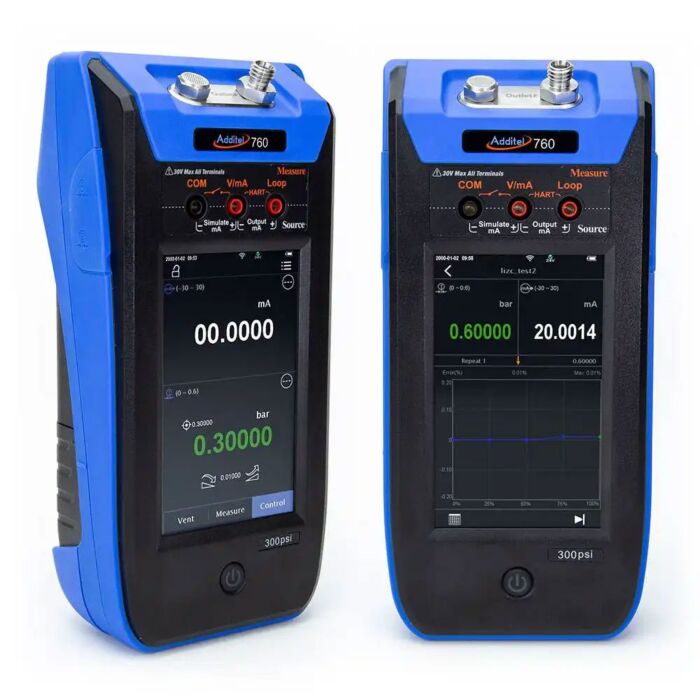

Additel ADT 760 Series Pressure Calibrator

Product Highlights

Additel's 760 Handheld Automated Pressure Calibrator Now Includes Emerson AMS Compatibility!

How does it work?

The Additel 760 series has a built-in pump and controller which automatically generates and controls pressure to the desired set point. With its large color touch screen display, and icon-based menu, the 760 is extremely easy to use. Weighing less than 4 lbs this unit can go anywhere you need to go.

How Accurate is it?

Most ranges have an accuracy of 0.02% FS with a control stability of 0.005% FS. Each unit includes a removable pressure module suited to the pressure range you desire. The accuracy and stability specifications are based on the full span of the module's range allowing you to switch modules and still get very accuracy measurements. Every Additel pressure sensor is specially aged and fully temperature compensated from -10 to 50°C ensuring the best performance regardless of the environmental conditions.

What ranges does it cover?

There are three base units designed to cover different ranges. The ADT760-LLP generates to 30 inH2O and has pressure modules available down to 0.25 inH2O. The ADT760-D generates to 35 psi and offers pressure modules as low as 10 inH2O. And the ADT760-MA generates both gauge and absolute pressures up to 300 psi. This unit accepts pressure modules as low as 10 psi.

This small calibrator utilizes a built-in pump, state-of-the-art sensor technology, and precision control to generate the desired pressures all with a touch of a button.

• Fully automatic calibrator with built-in pump and controller
• Switchable internal pressure modules for expandable ranges
• Accuracy as low as 0.01%FS
• External pressure modules available (measure only)
• Less than 4 lbs (1.8 kg) for handheld operation
• Source pressure, measure pressure and electrical
• 4 channels
• Optional HART communications
• Optional data logging and task documenting
• Bluetooth (new), USB, and Wi-Fi communication
• ISO 17025-accredited calibration w/data included

ADT760-LLP (Air: Up to ±30 inH2O)

The 760-LLP is designed for low pressure calibration and comes with a build-in pressure module of your choice. The maximum range module compatible with the ADT760-LLP is to ±30 inH2O (±75 mbar) and provides an accuracy to 0.05%FS (see ordering information for configurations with the option of the ADT760 and a module of your choice). Additional internal pressure modules (ADT155 series) are available and provide a variety of ranges down to ±0.25 inH2O (±0.62 mbar). The accuracy of 0.05%FS and control stability 0.005%FS is based on the internal module’s span. Measurements can be made in gauge or differential mode.

ADT760-D (Air: Up to 35 psi)

The 760-D gives you differential and gauge pressure but at a higher pressure range than the ADT760-LLP. Covering the range of -12.5 to 35 psi (-0.86 to 2.5 bar) and with an accuracy of 0.01%FS or 0.02%FS (depending on the interchangeable ADT155 module used), the ADT760-D is an ideal solution to cover very common gauge and differential pressure measurements. The Additel 760-D comes with an internal module covering its full range, but lower pressure configurations down to ±10 inH2O differential can be purchased to improve accuracy at lower pressures.

ADT760-MA (Air: Up to 300 psig)

The 760-MA generates and controls pressure from vacuum pressures up to 300 psig (20 bar.g) with an accuracy of 0.01%FS or 0.02%FS (depending on the interchangeable ADT155 module used). Equipped with a built-in barometric reference, each unit can switch between gauge and absolute pressure types. A variety of internal sensors are available which offer lower pressure ranges for improved performance.

Each Unit Includes

• ADT100-760-KIT adapter set (excl ADT760-LLP) 1 set (to 1/4BSPF, to 1/4NPTF, to M20F)
• USB to USB cable (ADT760-X-DL only)
• 9816-X 110V / 220V external power adapter
• 9724 chargeable Li-ion battery
• 9025 test leads for calibrator 1 sets (3 pcs)
• ADT100-760 Hose 1 pc for the ADT760-MA
• Pressure Hose 1 pc for the ADT760-D
• Silicone Tube 2 meters for the ADT760-LLP 1 meter for the ADT760-D
• 1220211206 Adapter, quick female to barb (Only for ADT760-D)
• ISO17025 accredited certificate
