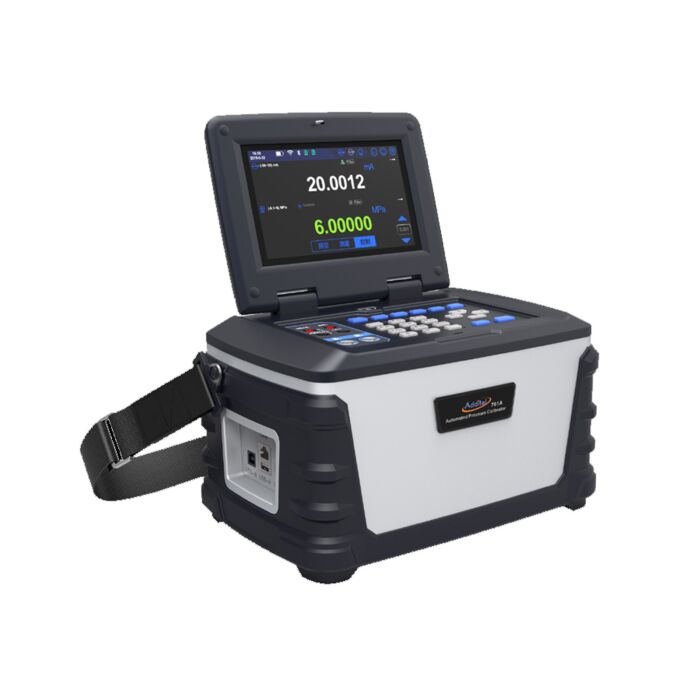

Additel ADT761A Series Automated Pressure Calibrator up to 1000 psi (40 bar)

The ADT761A has many improvements: increased pressure range to 1,500 psi (100 bar), removable internal pressure modules as low as 0.01%FS, increased speed to pressure, ability to read two external pressure modules, touch screen display, Wi-Fi, Bluetooth, and Ethernet communications, double the original battery life, and more!

Just like the rst generation, this second generation product is completely self-contained and automated with a built-in pump for pressure generation and precision control technology. Simply set the desired pressure and watch the calibrator do the work.

ADT761A-LLP

The Additel 761A-LLP is designed for low pressure calibration and comes with a ±30 inH2O (±75 mbar) high range module and a low range module of your choice ranging from ±20 inH2O to as low as ±0.25 inH2O (±50 to ±0.62 mbar). This unit has an accuracy of 0.05%FS with control stability better than 0.005%FS. All measurements can be made in differential or gauge pressures.

ADT761A-D

The Additel 761A-D also provides differential and gauge measurement which covers the range of -13.5 to 35 psi (-0.95 to 2.5 bar). This unit comes with a CP35 module (-13.5 to 35 psi) and one low range module of your choice ranging as low as ±10 inH2O (25 mbar). Each ADT761A-D can be preconfigured with the modules that fit your need to give you the best precision at the pressures you perform calibrations.

ADT761A-500

The Additel 761A-500 will generate and control from vacuum pressures up to 500 psig (35 bar.g). Both gauge and absolute pressures can be realized due to a built-in barometer. Each unit comes with a CP500 module (-13 to 500 psig) for the high range and the low range can be precongured based on the variety of modules available down to 10 psig (0.7 bar.g).

ADT761A-1K

The Additel 761A-1K will generate and control from vacuum pressures up to 1,000 psig (70 bar.g).Like the ADT761A-500, both gauge and absolute pressures can be realized due to a built-in barometer. Each unit comes with a CP1K module (-13.5 to 1,000 psig) for the high range and the low range can be precongured based on the variety of modules available down to 30 psig (2 bar.g).

ADT761A-1.5K

The Additel 761A-1.5K will generate and control from vacuum pressures up to 1,500 psig (100 bar.g). Like the ADT761A-500, both gauge and absolute pressures can be realized due to a built-in barometer. Each unit comes with a CP1.5K module (-13.5 to 1,500 psig) for the high range and the low range can be precongured based on the variety of modules available down to 35 psig (2.5 bar.g).

ADT761A-BP

The Additel 761A-BP is designed for calibration of barometer sensors. With a range of 100 to 1200 hPa and an accuracy of 0.01%FS, this unit is ideal for calibration on the bench or in the field.

Product Highlights

Automated and self-contained pressure generation and control to 1500 psi (100 bar)
Standard accuracy models as low as 0.01%FS
Two removable internal pressure modules for multi-range selection (Single pressure module for barometric)
Control stability to 0.003%FS or 0.02 hPa
Portable, designed for use in the field and in the lab
Ability to measure two external pressure modules
Wi-Fi, Bluetooth, USB and Ethernet communication
HART and profibus communication
Data logging and task management
Patented electric pump technology and improved speed

Each Unit Includes

ISO 17025-accredited calibration with data
ADT106A-X External Pressure Manifold (Excl ADT761A-LLP and ADT761A-1.5K)
9818 110V/220V external Power adapter
9725 Chargeable Li-ion battery
9240A DP gauge holder with a built-in 80 ml chamber (Only for ADT761A-LLP)
9060 (Pressure module connection cable)
ADT100-761A-X Hose Test Kit, 5 feet flexible hose(excl ADT761A-LLP and DT761A-1.5K)
1220211206 Adapter, quick female to barb(Only for ADT761A-D)
9022 Test Leads for calibrator
9907 Carrying case for 761A calibrator and accessory
O-rings 20 pcs
Pressure Hose 1 pc for the ADT761A-D 1 pc for the ADT761A-BPISO
Threaded plug (Excl ADT761A-LLP)
USB Cable
Barb Fitting (Only for ADT761A-Dand ADT761A-BP)
Silicone Tube 2 meters for the ADT761A-LLP 1 meter for the ADT761A-D
ADT111-X-KIT External Pressure Manifold (Only for ADT761A-1.5K)
ADT100-761A-1.5K-X Hose Test Kit, 5 feet flexible hose without filter(Only for ADT761A-1.5K)

Pressure Specifications
Specification	761A-LLP	761A-D	761A-500	761A-1K	761A-APXR	761A-BP
Max Pressure Range	30 inH2O (75 mbar)	35 psi (2.5 bar)	500 psig (35 bar.g)	1,000 pisg (70 bar.g)	Dependent on APXR	1,200 hPasensor
Min Pressure Range	-30 inH2O (-75 mbar)	-13.5 psi (-0.95 bar)	-13 psi (-0.9 bar)	-13 psi (-0.9 bar)	Dependent on APXR	100 hPasensor
Accuracy(1)	0.05%FS	0.02%FS	0.02%FS	0.02%FS	0.01%FS	0.01%FS
Stability	0.005%FS or 0.05 Pa	0.005%FS	0.005%FS	0.005%FS	0.003%FS	0.02 hPa
Pressure Type	Differential, Gauge	Differential, Gauge	Gauge, Absolute	Gauge, Absolute	Gauge, Absolute	Absolute
Over Range Indication	1.2
Resolution	6 digits
Measurement Units	Pa, hPa, kPa, mPa, bar, mbar, psi, mmHg@0°C, cmHg@0°C, mHg@0°C, inHg@0°C, inH2O@4°C, mmH2O@4°C, cmH2O@4°C, mH2O@4°C, mmH2O@20°C, cmH2O@20°C, mH2O@20°C, inH2O@20°C, inH2O@68°F, kg/m2, mtorr, torr, lb/ft2, tsi, custom
Barometric Accuracy	N/A	N/A	60 Pa	60 Pa	60 Pa	N/A
[1] One year accuracy (including 1 year stability). FS specification applies to the span of the module range.
[2] Specification based on gauge measurement. An additional 60 pa uncertainty will need to be included when measuring in absolute mode. Applicable only for use with the ADT761A-500 and ADT761A-1K
* Additel 761A calibrators support 160A intelligent digital pressure modules that are available for gauge, vacuum and absolute pressure from -15 psi to 60,000 psi (-1 bar to 4200 bar).For detailed specs, see the 160A pressure module data sheet.
