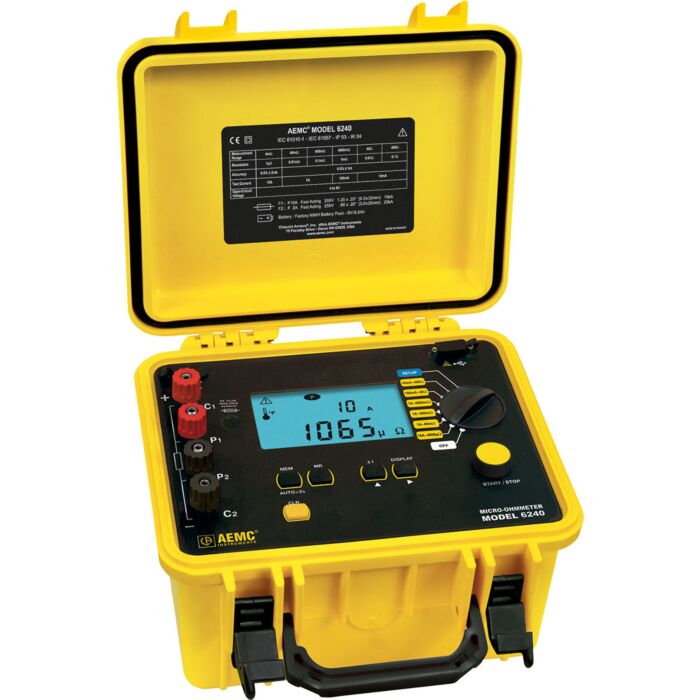

The 10A Micro-Ohmmeter Model 6240 is a rugged, low resistance tester designed for both plant maintenance and field use. Utilizing a four-lead Kelvin method of testing, the Model 6240 Micro-Ohmmeter accurately measures very low resistance within 0.25%.
Resistance measurements are automatically calculated from 5 µΩ to 400 Ω with resolutions down to 1 µΩ. The Model 6240 has selectable test currents of 10 A, 1 A, 100 mA and 10 mA and includes a polarity reversal function. The Model 6240 is designed to conduct tests on both resistive and inductive material. Up to 99 measurements can be stored and printed directly to a printer or from a PC.
DataView® (included) allows you to configure the instrument, temperature-compensate the test results, store data, and print reports.
Reliable low resistance measurements
Four-terminal Kelvin resistance measurement eliminates test lead resistance
1A test current at up to 4O
.25% basic accuracy
1 micro-ohm resolution
Direct reading, easy to operate
Six selectable resistance ranges
Reverse polarity switch
Overload and input fuse protection
Manufactured to international safety and environmental standards
Automatic decimal point and zeroing
Large terminals accept banana plugs and spade lugs

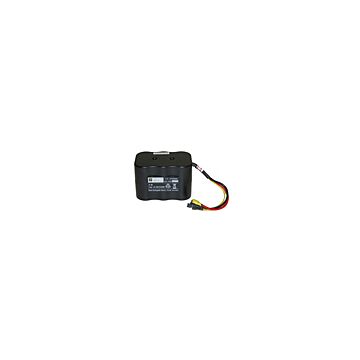

Rechargeable NiMH battery with internal charger (11/22V)
Includes DataView® software for data storage, real-time display, analysis and report generation
Each Unit Includes
extra large tool bag
optical USB cable
US 115V power cord
(2) spare fuses (12.5A)

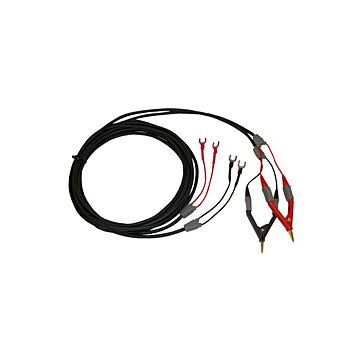

10 ft Kelvin Clips (10A - Hippo , Cat. #1017.84) and 10 ft Kelvin Probes (1A Spring loaded, Cat. #2118.73)
