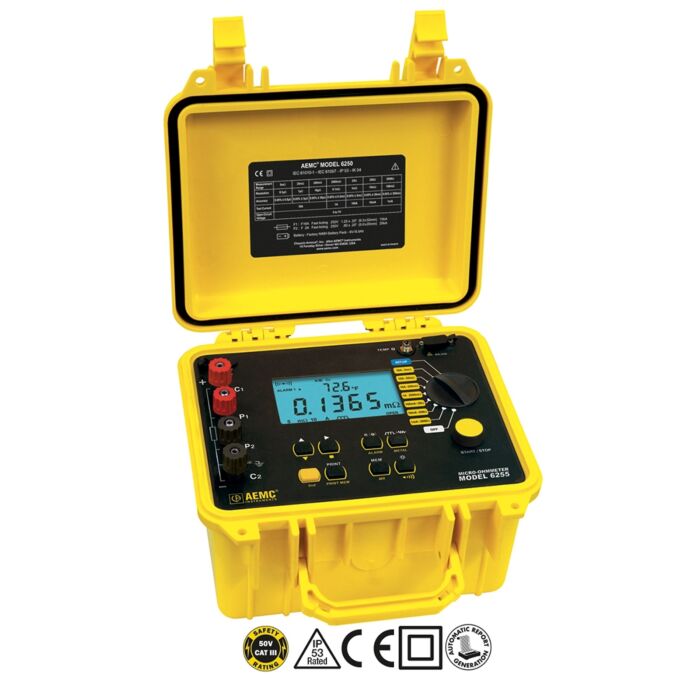

AEMC Instruments 6255 (2129.84) 10 A Micro-Ohmmeter

Product Highlights

The 10A Micro-Ohmmeter Model 6255 is a rugged, low resistance tester designed for both plant maintenance and field use. Utilizing a four-lead Kelvin method, the Model 6255 is the most accurate Micro-Ohmmeter available, with results within 0.05%.

The Model 6255 is uniquely designed to conduct tests on both resistive and inductive material, with operator selection directly from the front panel. Three test modes are available; resistive (instantaneous test), inductive (continuous test), and auto (repetitive test). Up to 1500 measurements can be stored and printed directly to a printer from a PC.

• Measure from 1µΩ (0.1µΩ resolution) to 2500.0Ω
• Test current selection of 1mA, 10mA, 100mA, 1A and 10A
• Tests up to 60 minutes at 10Amps
• RTD temperature probe (optional)
• Automatic and manual temperature correction
• Two programmable alarm set points
• Stores up to 1500 test results
• Selectable inductive or resistive test modes
• Automatic multiple test mode (multiple tests without pressing the test button)
• Large multi-line electroluminescent display
• Internal rechargeable batteries conduct up to 5000 – 10A tests
• Rugged, double insulated waterproof case
