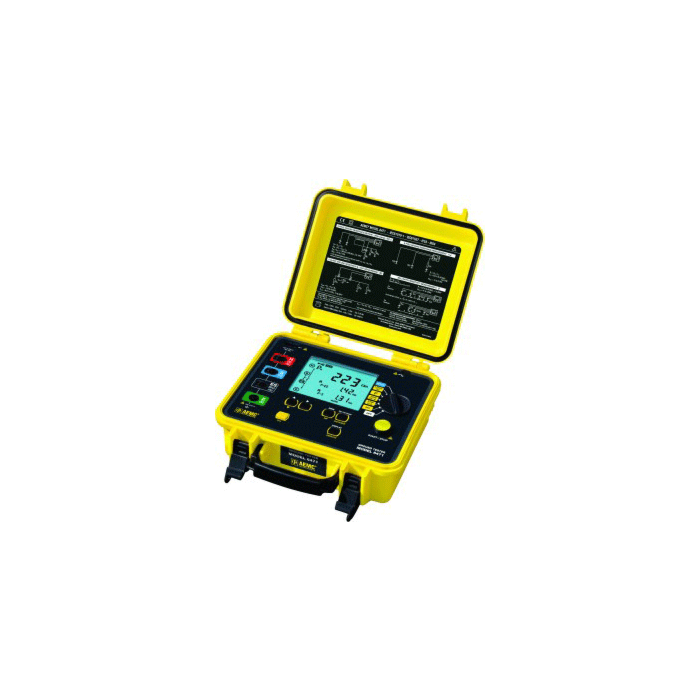

AEMC Instruments 6471 2135.48 Ground Resistance Tester Digital, 3 & 4-Point, Clamp-on
Ground Resistance Tester Digital, 3 & 4-Point, Clamp-on
Order #: 2135.48
Mfg #: 2135.48
Special Price
$2,573.55
Regular Price
$2,709.00
AEMC Instruments 6471 2135.48 Ground Resistance Tester Digital, 3 & 4-Point, Clamp-on
Ground Resistance Tester Digital, 3 & 4-Point, Clamp-on
Order #: 2135.48
Mfg #: 2135.48
Special Price
$2,573.55
Regular Price
$2,709.00
Availability: Ships in 1-2 weeks
Product Highlights
- Test ground resistance using the 2 clamp method (no auxiliary rods needed)
- 2- and 4-Pole Bond Resistance/Continuity measurement (DC Resistance) with automatic polarity reversal
- 3-Pole Fall-of-Potential measurement with manual or automatic frequency selection
- 4-Pole Soil Resistivity measurement with automatic calculation of Ρ and user selection of the Wenner or Schlumberger test method
- 3-Pole Earth Coupling measurement
- Manual and Automatic frequency scan from 41 to 513Hz for optimum test accuracy in electrically noisy environments
- Selectable test voltage of 16 or 32V up to 250mA of test current
- Auto-off power management
- Automatic recognition of all electrode connections and their resistance value
- Stores up to 512 complete test results in internal memory
- Optically isolated USB communication
- Remote set up and operation of all measurements using DataView® software
- Rechargeable NiMH batteries from wall charger or vehicle power
- Rugged dustproof and rainproof field case - IP54 rated in closed position
- Grounding standards IEC 61557 parts 4 and 5 compliant
- Includes DataView® software for data storage, real-time display, analysis, report generation and system configuration
- AEMC Instruments MN82 AC Current ProbeAC Current Probe for the 6471 and 6472
Order #: 2135.71
Mfg #: 2135.71
Availability: Ships in 1-2 weeksSpecial Price $332.50 Regular Price $350.00 - AEMC Instruments SR182 AC Current Probe (for Models 6471 & 6472)AC Current Probe for the 6471 and 6472, 40ARMS
Order #: 2135.72
Mfg #: 2135.72
Availability: Ships in 1-2 weeksSpecial Price $451.25 Regular Price $475.00 - AEMC Instruments 2135.85 Caddy - Set of 2, Reel CaddyCaddy - Set of 2, Reel Caddy for use w/Ground Kit Spools
Order #: 2135.85
Mfg #: 2135.85
Availability: Ships in 1-2 weeksSpecial Price $117.80 Regular Price $124.00 - AEMC Instruments 2135.35 Test Kit for 3-Point TestingTest Kit for 3-Point Testing
Order #: 2135.35
Mfg #: 2135.35
Availability: Ships in 1-2 weeksSpecial Price $565.25 Regular Price $595.00 - AEMC Instruments 2135.36 Test Kit for 4-Point TestingTest Kit for 4-Point Testing
Order #: 2135.36
Mfg #: 2135.36
Availability: Ships in 1-2 weeksSpecial Price $722.00 Regular Price $760.00 - AEMC Instruments 2135.37 Test Kit for 4-Point TestingGround Resistance Test Kit for 4-Point Testing - 500ft
Order #: 2135.37
Mfg #: 2135.37
Availability: Ships in 1-2 weeksSpecial Price $845.50 Regular Price $890.00
2 Clamp Measurement | |
---|---|
Range | O.01 to 500Ω |
Resolution | 0.01 to 1Ω |
Measurement Frequency | Auto: 1367Hz Manual: 128Hz-1367Hz-1611Hz-1758Hz |
3-Point Measurement | |
Range (Auto-Ranging) | 0.09Ω to 99.9kΩ |
Resolution | 0.01Ω to 100Ω |
Test Voltage | Nominal 16 or 32VRMS user selectable |
Resistance Measurement Frequency | 41 to 513Hz automatic or user selectable |
Test Current | Up to 250mA |
Accuracy | ±2% of Reading + 1ct @ 128Hz |
Soil Resistivity 4-Point Measurement | |
Test Method | Wenner or Schlumberger selectable with automatic calculation in Ω-meters, Ω-cm or Ω-feet |
Range (Auto-Ranging) | 0.01 to 99.99kΩ Max: 999kΩm |
Resolution | 0.01 to 100Ω |
Test Voltage | 16 or 32V user selectable |
Frequency | From 41 to 128Hz selectable |
External Voltage Measurement | |
Range (Auto-Ranging) | 0.1 to 65.0Vac/dc – DC to 440Hz |
Accuracy | ±2% of Reading + 1cts |
Resistance Measurement (Bond Testing) | |
Measurement Type | 2-Pole (with lead resistance compensation) or 4-Pole (Kelvin sensing) user selectable |
Range (Auto-Ranging) | 2-Pole 0.01O to 99.9kΩ; 4-Pole 0.001O to 99.99kΩ |
Accuracy | ±2% of Reading + 2cts |
Test Voltage | 16Vdc (+, - or auto polarity) |
Test Current | Up to 250mA max |
Data Storage | |
Memory Capacity | 512 test results |
Communication | Optically Isolated USB |
Power Source | 9.6V rechargeable battery pack |
Recharging Source | 110/220 50/60Hz external charger with 18Vdc, 1.9A output or 12V vehicle power |
