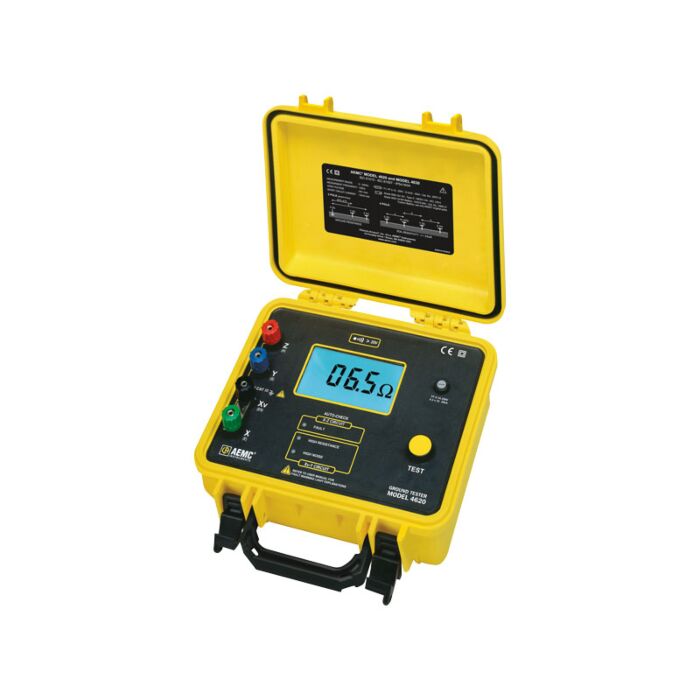

AEMC Instruments 4620 Ground Resistance Tester Kit, 300'
Ground Resistance Tester Kit 300ft.(4620 & 2135.36)
Order #: 2135.20
Mfg #: 2135.20
Special Price
$1,899.05
Regular Price
$1,999.00
AEMC Instruments 4620 Ground Resistance Tester Kit, 300'
Ground Resistance Tester Kit 300ft.(4620 & 2135.36)
Order #: 2135.20
Mfg #: 2135.20
Special Price
$1,899.05
Regular Price
$1,999.00
Availability: Ships in 1-2 weeks
Product Highlights
The Digital Ground Resistance Tester Model 4620 performs earth ground resistance and soil resistivity tests. This direct reading tester measures from 0 to 2000Ω, and is auto-ranging, so it automatically seeks outs the optimum measurement range. The Model 4620 is rugged, easy-to-use and is ideal for maintenance crews performing numerous tests. It exceeds mechanical and safety specifications for shock, vibration and drop tests specified in IEC standards. It is designed to reject high levels of interference, so it can be used under difficult conditions such as high stray currents that normally affect accuracy.
- Ground Integrity Measurement
- Measures soil resistivity (4-Point)
- Measures ground resistance (2- and 3-Point) Fall-of-Potential method
- Step voltage tests and touch potential measurements
- Auto-Ranging: automatically selects the optimum resistance range and test current
- Designed to reject high levels of noise and interference
- Extremely simple to operate: connect/press/hold/read
- LED on faceplate informs operator of high input noise, high auxiliary rod resistance and faulty connections
- Large easy-to-read backlit display
- Battery powered (Model 4620)
- AC powered with rechargeable NiMH battery pack(Model 4630)
- Rugged dustproof and watertight field case
- Color-coded terminals
Each Unit Includes
- Ground Resistance Tester Model 4620 and Test Kit for 4-Point Testing cat. #2135.36
- Carrying bag
- (2) 300 ft color-coded leads on spools (red/blue)
- (2) 100 ft color-coded leads (hand tied) (green/black)
- (2) 5 ft color-coded leads (red/blue)
- (4) 14.5" T-shaped auxiliary ground electrodes
- (1) set of 5 spaded lugs
- (1) 100 ft AEMC® tape measure
- User manual
-
AEMC Instruments 2119.82 Large Multi-purpose Canvas Bag, 22x10.5x12"Large Multi-purpose Canvas Bag, 22x10.5x12" (for ground kits)Order #: 2119.82
Mfg #: 2119.82
Availability: Ships in 1-2 weeksSpecial Price $157.70 Regular Price $166.00 -
AEMC Instruments 2130.59 Calibration Checker, 25ohm for Ground TestersCalibration Checker, 25ohm (for Ground Testers)
Order #: 2130.59
Mfg #: 2130.59
Availability: Ships in 1-2 weeksSpecial Price $84.55 Regular Price $89.00 -
AEMC Instruments 2135.35 Test Kit for 3-Point TestingTest Kit for 3-Point Testing
Order #: 2135.35
Mfg #: 2135.35
Availability: Ships in 1-2 weeksSpecial Price $565.25 Regular Price $595.00 -
AEMC Instruments 2135.36 Test Kit for 4-Point TestingTest Kit for 4-Point Testing
Order #: 2135.36
Mfg #: 2135.36
Availability: Ships in 1-2 weeksSpecial Price $722.00 Regular Price $760.00 -
AEMC Instruments 2135.37 Test Kit for 4-Point TestingGround Resistance Test Kit for 4-Point Testing - 500ft
Order #: 2135.37
Mfg #: 2135.37
Availability: Ships in 1-2 weeksSpecial Price $845.50 Regular Price $890.00 -
AEMC Instruments 2135.38 Ground Test Kit for 3-Point testingGround Test Kit for 3-Point testing
Order #: 2135.38
Mfg #: 2135.38
Availability: Ships in 1-2 weeksSpecial Price $264.10 Regular Price $278.00 -
AEMC Instruments 2135.39 Ground Rods, Set/2,14.5" Ground ElectrodesGround Rods,Set/2,14.5"T-shaped Auxiliary Ground Electrodes
Order #: 2135.39
Mfg #: 2135.39
Availability: Ships in 1-2 weeksSpecial Price $45.60 Regular Price $48.00 -
AEMC Instruments 2135.85 Caddy - Set of 2, Reel CaddyCaddy - Set of 2, Reel Caddy for use w/Ground Kit Spools
Order #: 2135.85
Mfg #: 2135.85
Availability: Ships in 1-2 weeksSpecial Price $117.80 Regular Price $124.00 -
AEMC Instruments 2130.60 Tape Measure, 100'Tape Measure,100ft.
Order #: 2130.60
Mfg #: 2130.60
Availability: Ships in 1-2 weeksSpecial Price $42.75 Regular Price $45.00
| Range (Auto-ranging) | 0 to 2000Ω |
| Resolution | 0.01 to 1Ω |
| Test Current | 0.1 to 10mA |
| Accuracy Typical | ±(2% Reading +1ct) |
| Open Voltage | 42V peak |
| Withstanding Voltage | 250V AC or 100V DC |
| Operating Frequency | 128Hz square wave |
| Interference | Rejection to high levels of interference voltage (DC, 50/60Hz, harmonics) |
| Maximum Auxiliary Rod Resistance | Current Circuit: |
| 3kΩ @ 20Ω range | |
| 30kΩ @ 200Ω range | |
| 50kΩ @ 2000Ω range | |
| Voltage Circuit: | 50kΩ on all ranges |
| Response Time | 4 to 8 seconds for a stabilized measurement |
| Display | 200 counts, 7 segment LCD, backlight |
| Power Source | 8 x 1.5V C alkaline batteries |
| Battery Life | 4500 15-seconds tests, low battery indicator |
| Dimensions | 10.8 x 9.7 x 5.0" (273 x 247 x 127mm) |
| Weight (with Battery) | 6.28 lbs (2.85kg) |
| Operating Temperature | 14° to 131°F (-10° to 55°C) |
| Storage Temperature | -40° to 158°F (-40° to 70°C) |
| Relative Humidity | Up to 90% |
| Ingress Protection (IP) | IP 65 (closed); IP 63 (open) |
| EMC | EN 61326-1 |
| Safety Compliance | EN 61557, EN 61010-1, 30V CAT III, Pollution Degree 2 |
