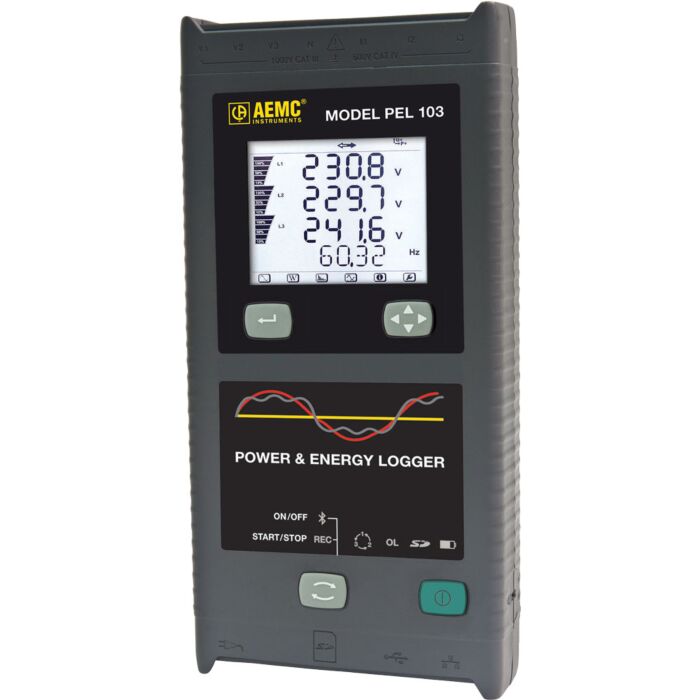

AEMC Instruments PEL 103 Power & Energy Logger with LCD
Power & Energy Logger with LCD and Sensors
Order #: 2137.52
Mfg #: 2137.52
$2,926.14
AEMC Instruments PEL 103 Power & Energy Logger with LCD
Power & Energy Logger with LCD and Sensors
Order #: 2137.52
Mfg #: 2137.52
$2,926.14
Availability: Ships in 1-2 weeks
Product Highlights
The PEL 103 is a low cost, simple to use, one, two (split phase) and three phase power/energy data logger. This product is ideal for electricians, engineers and contractors doing work in the area of building and system monitoring and upgrades, as well as residential and overall energy audits. All vital energy data is easily measured, recorded, and analyzed. Reports can be generated with confidence with minimal configuration time and effort (Standard and Customizable Reports supplied).
The instrument’s design enables it to be installed inside a load center panel (including the current sensors) allowing the door to close on most panels. The PEL 100 series offers all the essential functions for logging power/energy data from most electrical power networks in use today across the world (17 network set-ups provided). The PEL 100 series energy loggers measure and record three True RMS voltage inputs and current inputs, Watts, VARS, VA and Energy (kWh and kVA). Power Factor (PF), Displacement Power Factor (DPF), Crest Factor, Frequency and THD are calculated and recorded as well. Individual harmonic % information from 1 to the 50th harmonic are recorded at the operator’s choice. All variables are recorded and stored at a one second interval and on user selectable demand intervals from 1 to 60 minutes.
- Measurement of RMS voltages and currents at 128 times per cycle and stored every second
- Measurement of VA, W and var power values (total and per phase) stored every second
- Measurement of VAh, Wh and varh energy values (total and per phase) per second with source/load indication
- Calculation of the cos f Displacement Power Factor (DPF) and the Power Factor (PF) stored every second
- Calculation of Total Harmonic Distortion (THD)
- Measurement, calculation and display of the harmonics up to the 50th order for 50/60 Hz and 7th order for 400Hz
- Measurement of the DC quantities (RMS calculation)
- Display Measurements
- Electrical network quantities are stored on a removable SD-Card
- Automatic recognition of the connected current sensors
- DataView software for configuration, data retrieval and real-time viewing of measurements with a PC
- Compact and rugged case
- Versatile communication interface choices built in (USB, Ethernet, Bluetooth)
Each Unit Includes
- Small Classic Tool Bag
- Three MA193-10-BK Sensors
- 5' USB Cable
- Four Black Test Leads and Alligator Clips
- Power cord
- 12 Color-coded ID Markers
- Multifix Mounting System
- Safety Card for the PEL
- Sensor Compliance Sheet
- 2 GB SD Card with USB SD Card Reader
- USB Stick with Dataview
- Quick Start User Guide
- User Manual
