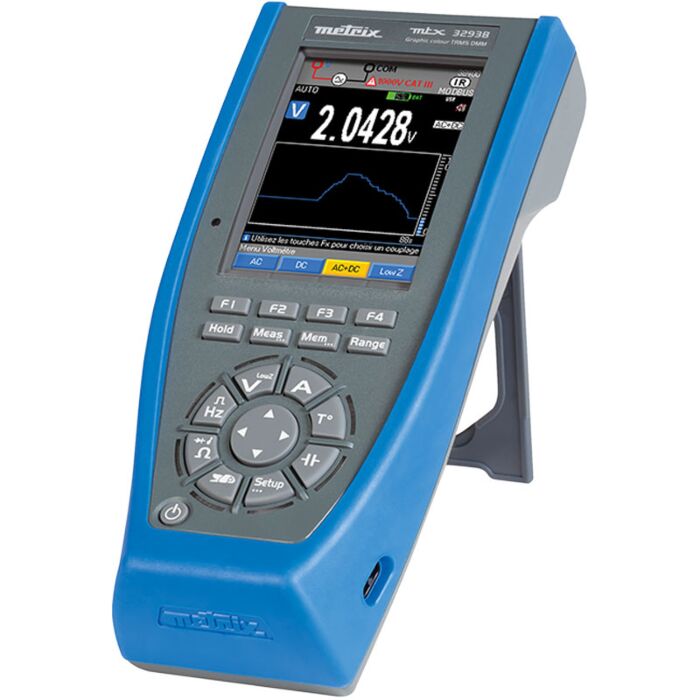

AEMC Instruments MTX 3293B Digital Multimeter, Graphical ASYC IV TRMS

Product Highlights

The Model MTX 3293B is a compact, portable, waterproof, multimeter with color graphic display that measures voltage (AC and DC), resistance, capacitance, temperature, duty cycle, pulse counts, and frequency with instant visualization of results. The meter performs continuity checks and diode testing (including forward bias voltage), and includes an AC voltmeter function with low input impedance for finding ghost voltages. Other features include monitoring Min, Max, Avg, and Peak measurement; Auto Range mode, and Data HOLD.

The meter is compact, rugged, comfortable to grip, and waterproof to the IP67 standard; and is rated for safety (EN 61010-1, NF EN 61010-2-30 1000 V CAT III, 600 V CAT IV).

High-performance graphic multimeters

• Highly readable 320 x 240 pixel color matrix screen with black background
• Graphic display of trends on a summary screen
• 600 Hz waveforms
• Recording of 30 sequences

Dynamic Recorder

• Up to 30,000 measurements in memory
• Simplified setting of the number of measurements, interval, duration and memory capacity
• Internal storage of 30 measurement sequences
• Interactive zoom function on recordings
• A simple monitoring mode displaying the time-stamped MIN/MAX/AVG and time-stamped PEAK

And Much More!

• Contextual reminder of connections
• Classic USB or optional Bluetooth communication / ANDROID application
• IP67 protection rating, waterproof and dustproof, suitable for outdoor conditions
• Rechargeable Ni-MH AA battery via USB charger
• Battery life up to 100 hours with battery level management
• No time wasted: the device works while it charges
