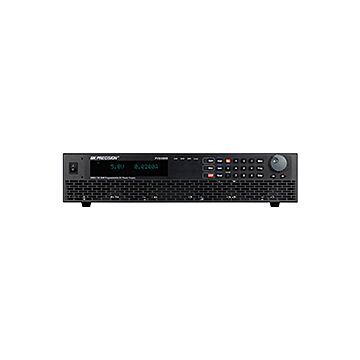

BK Precision PVS10005
Programmable DC Power Supply, 1000V, 5A, 5000W

Order #: PVS10005

Mfg #: PVS10005

Questions about availability or need help? Contact Us:

(800) 633-0561
$5,890.00

BK Precision PVS10005

Programmable DC Power Supply, 1000V, 5A, 5000W

Order #: PVS10005

Mfg #: PVS10005

Loading...
Print Email Save Item Compare
$5,890.00
Register to view exclusive member pricing
The PVS10005 programmable DC power supply offers clean output power up to 5 kW, excellent regulation, and fast transient response time characteristics in an industry-leading 2U package. These power supplies provide many useful features such as high-programming resolution, multiple remote interfaces for test systems, and a built-in SAS (solar array simulator) function to generate PV (photovoltaic) I-V curves. The PVS Series is well suited for both bench use and ATE systems integration, R&D, design verification, production test, and high voltage testing. In particular, the low-noise characteristic of the PVS Series makes these instruments ideal for motor inverter testing. When operated with the optional SAS software, these power supplies can be used for solar array testing applications.
Availability: Ships in 3-4 weeks

 Ships Free Over $100

Choose Your Options:

Product Highlights

  • Compact, high power density, 2U package
  • Output up to 1000V/5A (PVS10005) and 600V/8.5A (PVS60085 & PVS60085MR)
  • Model PVS60085MR is multi-ranging, allowing any combination of the rated voltage and current up to 3000 W
  • Convenient single-phase AC input configuration
  • Bright VFD display
  • High voltage and current resolution of 100 mV, 0.1 mA (PVS10005) or 10 mV, 0.2 mA (PVS60085 & PVS60085MR)
  • Fast transient response time of ≤ 0.5 ms
  • Adjustable voltage and current slope (rise and fall times)
  • List mode: 9 user-defined programs with up to 100 programmable steps each
  • Built-in SAS function for storage of up to 16 I-V curves with Voc, Isc, Vmp, and Imp parameters and 1024-point table
  • Standard USB (virtual COM), RS232, GPIB and LAN interfaces supporting SCPI commands
  • External analog programming and monitoring interface
  • LabVIEW driver and softpanel available for remote control, test sequence generation, and datalogging
  • Solar Array Simulation (SAS) Software Option
  • Ideal for testing PV and motor inverters
  • Simulate I-V curves under different weather conditions while validating the solar inverter's MPPT algorithm
  • Test to EN50530 and Sandia Labs standards
  • Monitors and logs real-time voltage, current, power, MPPT efficiency, and average MPPT efficiency
  • User-definable irradiance profile
