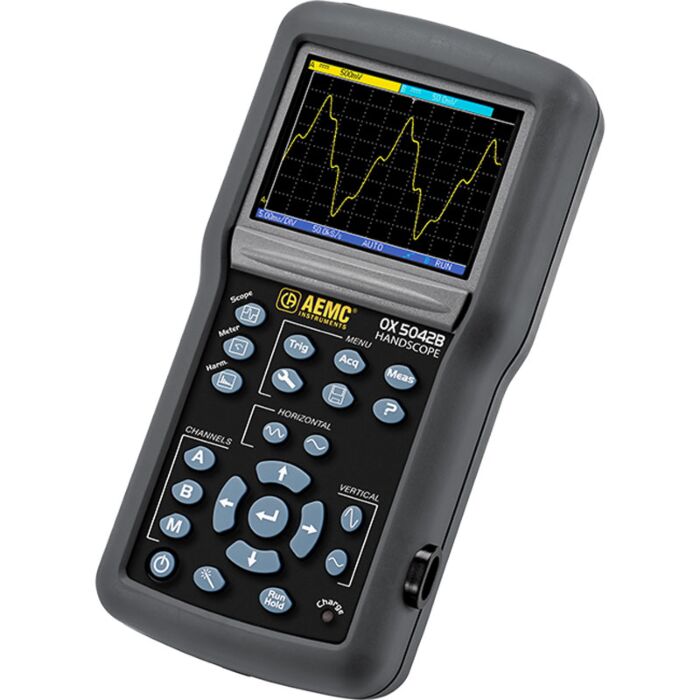

AEMC Instruments OX5042B 3-in-1 Handscope Portable Harmonic Analyzer
Order #: OX5042
Mfg #: 2150.21
Product Highlights
The compact, shockproof, IP54, 3-in-1 Handscope Model OX 5042B can be comfortably held in one hand. The Handscope is an ergonomically designed instrument equipped with a 3.5-inch color screen with LED backlighting for a precise and crisp data display. Integrated multilingual help screens are available at all times to make it simpler to use.
The Model OX 5042B combines three measuring instruments in one:
- Oscilloscope, 2 fully isolated channels, 40 MHz bandwidth, vertical sensitivity 5 mV to 200 V/div
- 2 fully isolated channel multimeter, 8000-count display, with power measurements
- 2 fully isolated channel harmonic analyzer, up to the 31st harmonic (fundamental frequency from 40 Hz to 450 Hz)
2 MB of storage are available for recording data. In the multimeter mode, it is possible to store graphic recordings of 2700 measurements from 5 min to 1 month. Communication via isolated USB SCPI protocol. This makes it simple to program the instrument remotely with the supplied SX-METRO software. This product has been developed using an Eco-Design approach to reduce its environmental impact and is supplied with a 3-year warranty.
Each Unit Includes
- Meter
- Small classic tool bag
- US wall plug
- USB cable
- Set of (2) 10 ft color-coded Leads (red/black)
- Set of (2) color-coded alligator Clips (red/black)
- Set of (2) color-coded probes (red/black)
- BNC adapter
- (2) probe 10:1 600 V BNC male
- (6) 1.2 V AA NiMH rechargeable batteries
- Quick Start Guide
- USB thumb drive with software and a user manual
| CHANNELS | |
| Inputs / Bandwidth | 2 X 600 V Isolated channels / 40 MHz |
| Input Impedance | 1 MΩ ± 0.5 %, 17 pF |
| INTERFACE | |
| Screen Specifications | Color 3.5 in TFT LCD 320 x 240 – LED Backlighting |
| Display Mode | 2500 real acquisition points on screen |
| Traces On Screen | 2 Traces + 2 References + memory trace or Math calculation |
| Front Panel Control | 24 keys |
| VERTICAL | |
| Vertical Sensitivity | 5 mV to 200 V/div and up to 156 μV/div in vertical zoom mode (12-bit converter) – Accuracy ± 1 % |
| Max Input Voltage | 600 Vrms CAT III – Derating -20 dB per decade from 100 kHz |
| HORIZONTAL | |
| Time Base Speed | 25 ns/div to 200 s/div. – accuracy 0.1-Roll mode from 100 ms to 200 s/div |
| Horizontal Zoom | Zoom factor : x1, x2, x5 |
| TRIGGER | |
| Mode | On all channels: Auto, Triggered, One-shot & trigger Roll |
| Type | Edge, Pulse width (20 ns to 20 s) |
| Coupling | AC or DC (dependent of the coupling of the triggering channel)- HF, LF, or noise rejection |
| Sensitivity | ≤ 1.2 divisions p-p up to 40 MHz |
| DIGITAL MEMORY | |
| Max. Sampling Rate | 2 GS/s in ETS – 50 MS/s in Single Shot Mode on each channel (9 bits) |
| Memory Depth | 2500 points/channel |
| Memory Capacity | 2 MB for storing various types files: trace, text, configuration, image files |
| GLITCH Mode | Duration ≥ 20 ns – 1,250 MIN Max pairs |
| Display Modes | Envelope, Averaging (factors 2 to 64) and XY (vector) |
| OTHER FUNCTIONS | |
| Math Functions | Channel inversion,, +, -, x, / and (adjustable scaling) |
| Automatic Measurement | 18 time, level, phase measurements |
| Multimeter Mode | 2 channels, 8000 counts + Min and Max bargraph – TRMS – graphic recording of 2700 measurements (5 min to 31 days) |
| AC, DC, AC+DC Voltages | 600 mV to 600 VRMS, 800 mV to 800 VDC: accuracy 2% R + 20 cts Bandwidth 50 kHz |
| Active Power and PF | Single phase-Balanced 3 phase, with or without Neutral, simultaneous display of current |
| Resistance, Temperature, Capacitance, Frequency, Speed Rotation and Diode Test | |
| Harmonic Analyzer Mode | |
| Multi-Channel Analysis | 2 channels, 31 orders, fundamental from 40 to 450 Hz |
| GENERAL FEATURES | |
| Interface | Isolated USB, SX-Metro software included |
| Batteries | (6) 1.2 V AA NiMH rechargeable batteries, External charger |
| Charging Time | External power adapter, (98 to 264) VAC (50/60 Hz) 2 hrs 30 min when OFF |
| Battery life | Up to 8 hrs 30 min |
| Dimensions (L x W x H) | (8.43 x 4.33 x 2.24) in (214 x 110 x 57) mm |
| Weight | 2.65 lbs. (1.2 kg) |
| Altitude Operating | 2000 m (6560 ft) |
| Operating Temperature | (32 to 104) °F (0 to 40) °C ≤80 % RH |
| Storage Temperature | (-4 to 140) °F (-20 to 60) °C |
| IP Rating | IP54 per IEC 60529 |
| Safety | IEC/EN 61010-1 (1000 V CAT II; 600 V CAT III), IEC 1326-1 |
