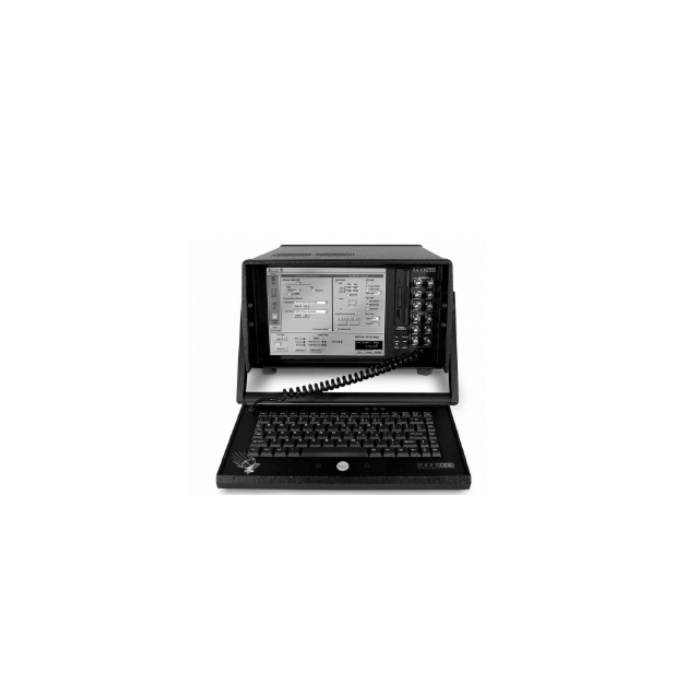

Used Aeroflex FB100A Fastbit BER Test Time Optimization System

Product Highlights

The FB100A is a modular, expandable, high data rate BER (Bit Error Rate) test system. With operation from DC to 160 Mb/s, serial and/or parallel data interfacing and INSTALOK™ synchronization, the versatility of the FB100A provides the flexibility to connect to the terminal equipment or evaluation boards of  most users and simply setup and run a test.

• Windows NT user interface Up to 160 Mbit/s operation Resident interfaces for TTL, ECL and PECL • Interface Pods for TTL, LVDS, RS-422 (V.11), MPEG SPI, ASI, OC3 and HSSI Signal connection capability includes "Pod to Header" and a "Pod to Micrograbbers" for circuit card and device probing Telecom Data Interface Pod for X.21, RS-449, V.35, V.36, RS-232 and EIA/TIA530/A interfaces Serial and 8 bit wide parallel data on TTL Pod 8 bit wide parallel data on LVDS and RS-422 (V.11) Pods Broadband Impairment Generation Options Frequency tunable noise from 5 MHz to 2.4 GHz with selectable channel bandwidths High accuracy, wide dynamic range Carrier to Noise and Interference Selectable Burst Noise and Flat Fading carrier profiles Automatic BER versus Carrier to Noise
