Order #: 63205-RENT3
Mfg #: 63205

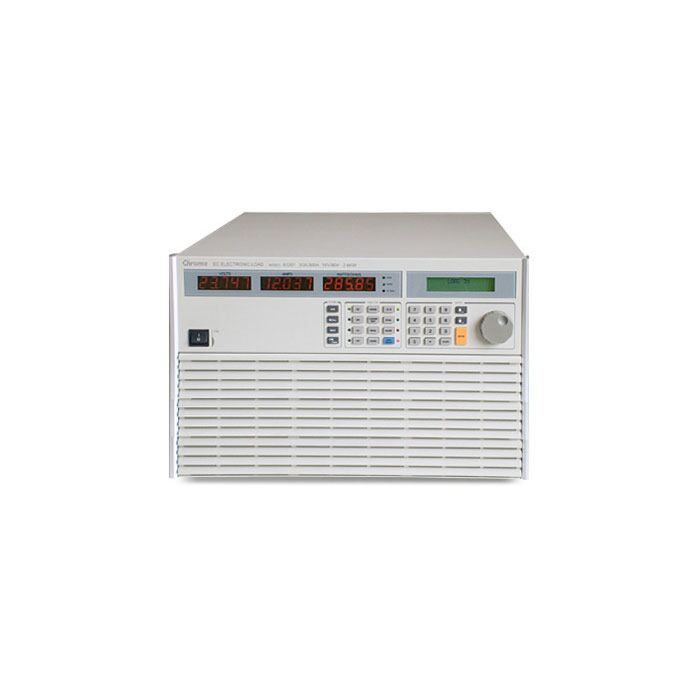

Chroma 63205 for Rent, DC Electronic Load, 6500W, 180A, 80V
Order #: 63205-RENT3
Mfg #: 63205
Request a Rental Quote
Have a Question? Speak to a Transcat Rental Expert: 800.264.4059
Product Highlights
The Chroma 63205 series of programmable electronic loads are designed for a wide variety of dc power conversion products including DC power sources, battery chargers, server power supplies, dc-dc converters, batteries and many others. Especially well-suited for high power applications, the Chroma 63205 DC loads have a built-in 15-bit precision A/D converter that can achieve 0.05%+0.05% F.S., 0.1%+0.1% F.S. and 0.3%+0.3% F.S. accuracy for voltage, current, and power measurements respectively.
The Chroma 63205 electronic DC load can sink rated current down to 1VDC even under the highest specified rise time. This unique feature guarantees the best loading performance for low voltage/high current applications. To satisfy many testing applications, the Chroma 63205 electronic loads offer outstanding high speed, programmable dynamic load simulation and control capabilities. The load can short a DC power source or any power supply that has a built in current limit function and measure its short circuit current so that users can verify if the UUT current limit is functional. GPIB, RS-232 and RS-485 PC controllable interfaces combined with the external waveform simulation and voltage/current monitoring capability make the Chroma 63205 DC electronic load ideal for automatic system integration.
Specifications for the Chroma 63205 High Power DC Electronic load include:
Low | High | |
Power | 650W | 6500W |
Current | 0-18A | 0-180A |
Voltage | 0-80V | 0-80V |
Min Operating Voltage | 0.5V@9A/1V@18A | 0.5V@90A/1V@180A |
-
-
