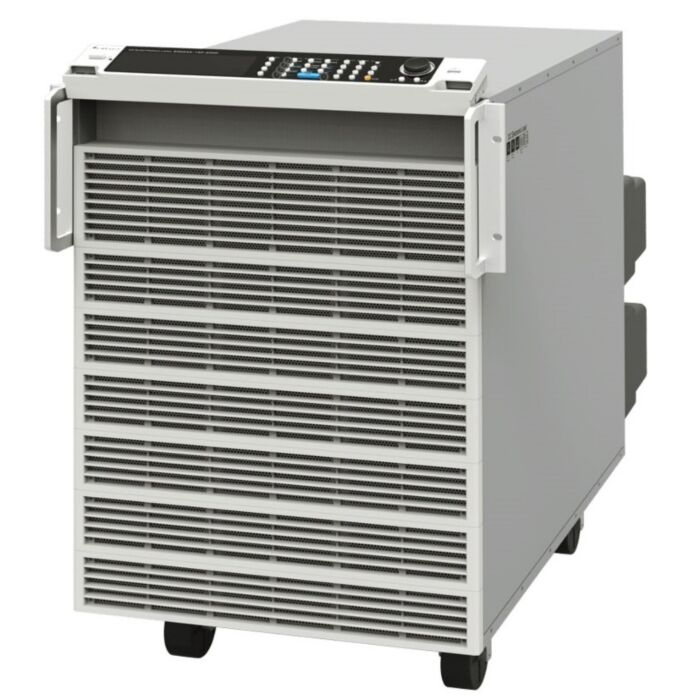

Chroma 63224A-1200-960 for Rent, High Power DC Electronic Load, 1200V, 960A, 24kW
High Power DC Electronic Load, 1200V, 960A, 24kW
Order #: 63224A-1200-960-RENT3
Mfg #: 63224A-1200-960
Call for price
Call for price
Chroma 63224A-1200-960 for Rent, High Power DC Electronic Load, 1200V, 960A, 24kW
High Power DC Electronic Load, 1200V, 960A, 24kW
Order #: 63224A-1200-960-RENT3
Mfg #: 63224A-1200-960
Product Highlights
The Chroma 63224A series high power DC electronic loads are designed for testing a wide range of power conversion products including AC/DC and server power supplies, DC/DC converters, EV batteries, automotive charging stations, and other power electronics components. They have unique user defined waveform (UDW) capability and external analog modulating input for simulating realworld, custom waveforms. . In addition, a 255-set of data storage function has been built in for recall of the stored settings at any time. The Chroma 63224A-1200-960 loads offer versatile front panel operation and are able to be controlled remotely via standard USB or optional Ethernet and GPIB interfaces.
The Chroma 63224A-1200-960 DC load provides three operating and measuring ranges which can provide different applications of current operating and can minimize the measurement error by selecting the suitable range. A built-in highly precision A/D converter, achieving 0.015%+0.015%F.S., 0.04%+0.04%F.S. and 0.1%+0.1%F.S. accuracy for voltage, current and power measurement respectively. The Chroma 63224A-1200-960 electronic DC load also offers a unique dynamic frequency sweep with variable frequencies up to 50kHz. Since short circuit testing is one of the essential power testing items, the Chroma 63224A-1200-960 series provides short circuit simulation to effectively solve the application demands for power and automated testing.
Specifications for the Chroma 63224A-1200-960 Programmable DC Electronic load include:
| Low | Mid | High | |
| Voltage | 0-1200V | ||
| Current | 0-96A | 0-480A | 0-960A |
| Power | 0-24000W | ||
| Min Operating Voltage | 2V@96A | 10V@480A | 20V@960A |
-
