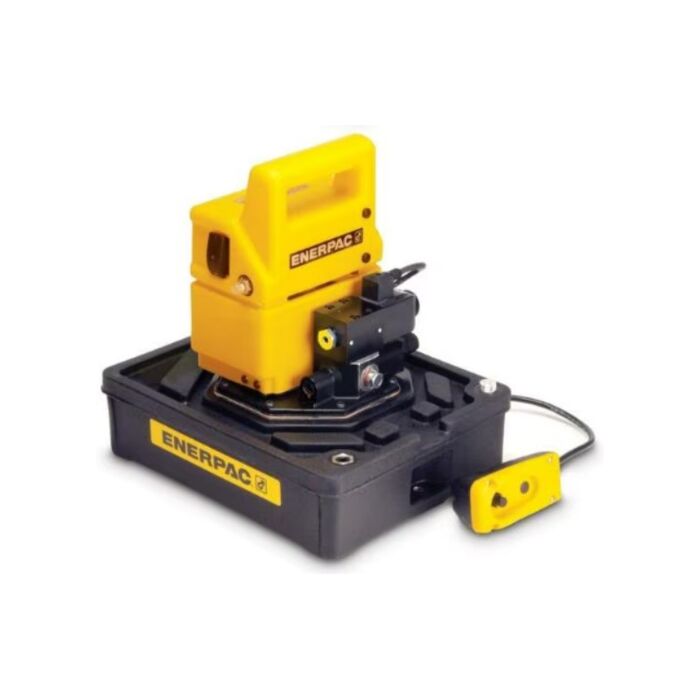

Enerpac PUD1101B Economy Electric Hydraulic Pump, 2-Speed, Dump Valve, 115V
Order #: PUD1101B
Mfg #: 106493
Product Highlights
Two Speed, Economy Electric Hydraulic Pump, Dump Valve, 115V, For use with Single-Acting Cylinders
PU Series electric over hydraulic pumps combine economy with high-performance - ideal for intermittent use when working with small to medium size cylinders and other hydraulic tools.
All models in the series are 2-speed for enhanced productivity, and each is supplied with a 10 ft (3 m) cord and control pendant for operator safety. The high-strength molded shroud with integral handle protects the motor from contamination and damage in industrial environments.
Within the PU Series is a selection of pumps that offer a choice of reservoir capacities, valve functions and voltage.
PUD1100 Series
- For advance and retract of single-acting cylinders
- For applications not requiring load holding
- Ideal for punching applications
PUD1300 Series
- Providing advance, hold, and retract of single-acting cylinders
- Ideal for applications requiring load holding
- For applications requiring solenoid valves
PUJ-Series
- Manual valves provide advance, hold, and retract operation
- 3 and 4-way valves for single or double-acting cylinders
| Maximum Operating Pressure (psi) | 10,000 |
| Pressure Rating (psi) 1st Stage | 200 |
| Pressure Rating (psi) 2nd Stage | 10,000 |
| Cylinder Compatability | Single-acting |
| Reservoir Capacity (in3) | 231 |
| Usable Oil Capacity (in3) | 1 |
| Maximum Flow at Rated Pressure | 20 in3/min |
| Output Flow Rate (in3/min) 1st Stage | 200 |
| Output Flow Rate (in3/min) 2nd Stage | 20 |
| Motor Size (hp) | 0.5 |
| Motor Voltage | 115 V |
| Duty Cycle | Intermittent |
| Valve Function | Advance / Retract |
| Power Source | Electric |
| Pump Operation | Dump |
| Pump Control | Pendant |
| Motor Electrical Specification | 115 V, 50/60 Hz |
| Current Draw (amps) | 9.5 |
| Sound Level (dBa) | 85 |
| Weight (lbs) | 35 |
