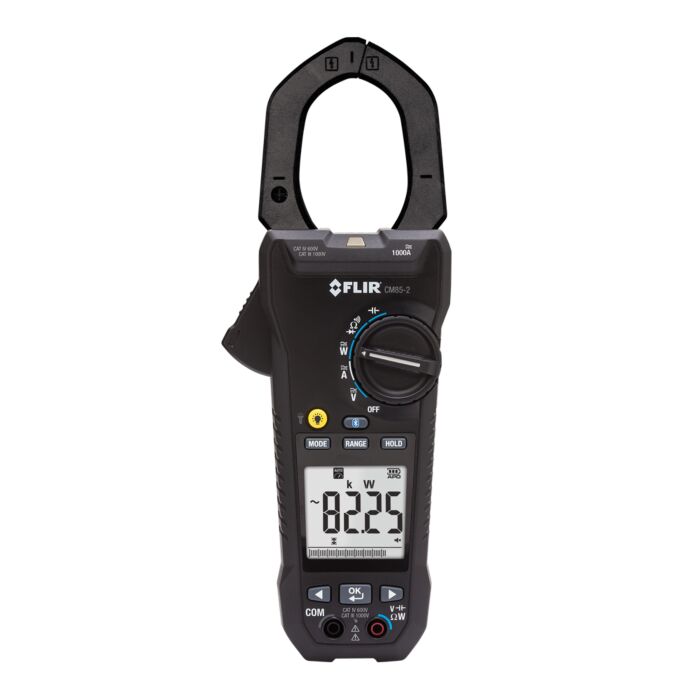

FLIR CM85-2 1000A, True RMS Power Clamp Meter with Wireless METERLiNK
1000 A True RMS Power Clamp Meter with Wireless METERLiNK

Order #: CM85-2

Mfg #: CM85-2

Questions about availability or need help? Contact Us:

(800) 633-0561
$499.00

FLIR CM85-2 1000A, True RMS Power Clamp Meter with Wireless METERLiNK

1000 A True RMS Power Clamp Meter with Wireless METERLiNK

Order #: CM85-2

Mfg #: CM85-2

New
Loading...
Print Email Save Item Compare
$499.00
Register to view exclusive member pricing
Availability: Ships in 3-4 weeks

 Ships Free Over $100

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

The FLIR CM85-2 is an industrial power clamp meter with advanced power analysis and variable frequency drive (VFD) filtering functions required by electrical troubleshooters for full-scale equipment. Accurately analyze voltage in complex machinery by including harmonics, inrush, current, and phase rotation testing with a wide AC/DC voltage range and base accuracy of +/-1%. Stream live data in real time from the CM85-2 to your mobile device over Bluetooth®. Using the METERLiNK® app, you can compare log files, create alarm thresholds, visualize trends, and create reports to share with team members.

Superior Power Analysis

VFD mode increases accuracy when working on VFD-controlled equipment. Conduct multiple conductor measurements with True RMS AC Current up to 1000 Amps.

Purpose Built for Inspections

Dual LED lights eliminate the need to carry additional tools, and an ergonomic industrial design offers ease of use and operation.

Inspect at a Safe Distance

Stream live readings in real time from the meter to your mobile device over Bluetooth using the METERLiNK app from a distance up to 10 m (32 ft).

Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
Specifications
Jaw Opening 45 mm (1.77 in)
AC Current 99.99 A, 50-60 Hz ± (2% + 5 digits); >60-400 Hz ± (2.5% + 5 digits)
999.9 A, 50-60 Hz ± (2% + 5 digits); >60-400 Hz ± (2.5% + 5 digits)
Safety Category CAT IV-600 V, CAT III-1000 V
Measurement & Analysis
AC Current 99.99 A, 50-60 Hz ± (2% + 5 digits); >60-400 Hz ± (2.5% + 5 digits)
999.9 A, 50-60 Hz ± (2% + 5 digits); >60-400 Hz ± (2.5% + 5 digits)
AC Voltage 99.99 V, 50-500 Hz ±(1.0% + 5 digits)
999.9 V, 50-500 Hz ±(1.0% + 5 digits)
Capacitance 3.999 µF, ±(1.9% + 8 digits)
39.99 µF, ±(1.9% + 8 digits)
399.9 µF, ±(1.9% + 8 digits)
3.999 mF, ±(1.9% + 8 digits)
Continuity 999.9 Ω, ±(1.0% + 5 digits)
DC Current 99.99 A, ±(2% + 0.5 A)
999.9 A, ±(2% + 5 digits)
DC Voltage 99.99 V, ±(0.7% + 2 digits)
999.9 V, ±(0.7% + 2 digits)
Diode 0.40 to 0.80 V, ±0.1 V
Frequency 20.00 to 99.99 Hz, ±(0.5% + 3 digits)
20.0 to 999.9 Hz, ±(0.5% + 3 digits)
0.020 to 9.999 kHz, ±(0.5% + 3 digits)
Harmonics Total harmonic distortion ACA/ACV: 99.9%, ±(3.0% + 10 digits)
Harmonic distortion: H01-H12 99.9%, ±(5% + 10 digits)
Harmonic distortion: H13-H25 99.9%, ±(10% + 10 digits)
Inrush Current ACA:
99.99 A, ±(3% + 0.3 A)
999.9 A, ±(3% + 5 digits)
Measuring Rate 3 times per second
Peak Hold ACV:
140.0 V, ±(3.0% + 15 digits)
1400 V, ±(3.0% + 15 digits)

ACA:
140.0 A, ±(3.5% + 15 digits)
1400 A, ±(3.5% + 15 digits)
Power Factor -1.00 to 0.00 to +1.00, ±3° ±1 digit
Recording Data recording available via METERLiNK App
Resistance 999.9 Ω, ±(1.0% + 5 digits)
9.999 kΩ, ±(1.0% + 3 digits)
99.99 kΩ, ±(1.0% + 3 digits)
VFD ACV:
99.99 V, 50-60 Hz ±(1% + 5 digits)
999.9 V, 50-60 Hz ±(1% + 5 digits)

ACA:
99.99 A, 50-60 Hz ±(2% + 5 digits)
999.9 A, 50-60 Hz ±(2% + 5 digits)
Watts DC:
9.999 kW (10 V, 5 A min), ±(3% + 0.05 kW)
99.99 kW (10 V, 5 A min), ±(3% + 0.5 kW)
999.9 kW (10 V, 5 A min), ±(3% + 10 digits)

AC:
9.999 kW (10 V, 5 A min), ±(3% + 10 digits)
99.99 kW (10 V, 5 A min), ±(3% + 10 digits)
999.9 kW (10 V, 5 A min), ±(3% + 10 digits)
Communication & Data Storage
Bluetooth range max 10 m (32 ft)
Power
Auto Power Off Approximately 30 minutes
Battery Life 50 hours with alkaline batteries (backlight, work light, and Bluetooth are off)
Power Requirements 6 x 1.5 V AAA alkaline batteries
General
Dimensions (L x W x H) 276 mm x 101 mm x 50 mm (10.87 in x 3.98 in x 1.97 in)
Jaw Opening 45 mm (1.77 in)
Weight Total weight including batteries: 0.65 kg (1.43 lb)
Worklights Yes
Environmental & Certifications
Certifications UL, CE, FCC, IC, UKCA, CSAUS
Drop test 1.2 m (4 ft)
EMC FCC:
47 CFR Part 15 Subpart B

CE:
EN IEC 61326-1:2021
EN IEC 61326-2-2:2021
EN 301 489-1 V2.2.3 (2019-11)
EN 301 489-17 V3.2.4 (2020-09)

RF:
ETSI EN 300 328 V2.2.2
EN 62479:2010
EN 50663:2017
Operating Temp & Humidity 0°C to 10°C (32°F to 50°F) (non?condensing)
10°C to 30°C (50°F to 86°F) (≤80% RH)
30°C to 40°C (86°F to 104°F) (≤75% RH)
40 to 50°C (104°F to 122°F) (≤45% RH)
Safety Category CAT IV-600 V, CAT III-1000 V
Safety Standards IEC 61010-1:2010, IEC 61010-2-032:2012, IEC 61010-2-033:2012
Shock & Vibration Random vibration per MIL?PRF?28800F Class 2 (5 Hz to 55 Hz, 3 g maximum)
Storage temperature and relative humidity [RH] -10°C to 50°C (14°F to 122°F). 0-80% RH (batteries not fitted)
Temperature Coefficient 0.2 x (specified accuracy)/°C, <18°C, >28°C
