Order #: E54
Mfg #: 84512-1201

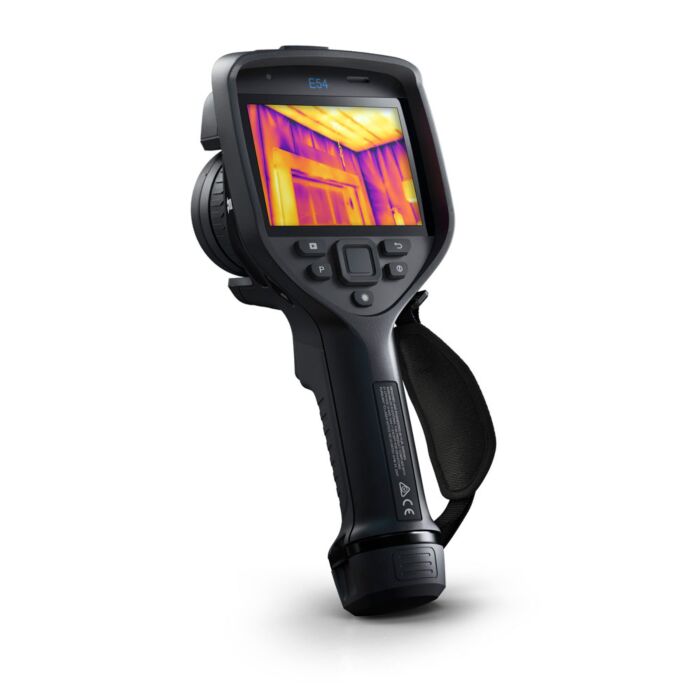

FLIR E54 Thermal Camera, 24 degree Lens, 320x240, -20C to 650C
Order #: E54
Mfg #: 84512-1201
Product Highlights
The FLIR E54 offers the resolution and sensitivity you need for basic condition monitoring, electrical/mechanical inspection, and building inspection. The 320 ×240 pixel thermal detector accurately measures temperatures up to 650°C (1202°F) and produces crisp, vibrant imagery that can be enhanced with patented FLIR MSX technology for added detail and perspective. The onboard FLIR Inspection Route runs pre-planned routes to help you stay organized when surveying large or multiple locations. FLIR Ignite provides automatic uploading of E54 images directly from the camera to the cloud for easy, secure storage and sharing.
- IR Resolution: 320 × 240 pixels
- 5 MP, fixed focus, with built in LED light bulit-in visual camera
- Thermal sensitivity: <40 mK @ 30°C (86°F)
- Temperature range: -20°C to 120°C (-4°F to 248°F); 0°C to 650°C (32°F to 1202°F)
- Accuracy: ±2°C (±3.6°F) or ±2% of the reading
- Focus modes: Manual
- Digital zoom: 1–4x continuous
- Measurement tools: 3 spotmeters in live mode, 1 area meter in live mode
Each Unit Includes
- Accessory Box 1:
- Power supply for battery charger
- Power supply, 15W / 3A
- Printed documentation
- SD card (8 GB)
- USB 2.0 A to USB Type-C cable, 1.0 m
- USB Type-C to HDMI adapter, standard specification UH311
- USB Type-C to USB Type-C cable (USB 2.0 standard), 1.0 m
- Accessory Box 2:
- Accessory Box 3:
- Front protection fastener
- Hand strap bracket, left
- Hand strap bracket, right
- Screws
- Torx T10 wrench
- Carabiner hook
- Front protection
- Hand strap
- Lanyard strap, camera
- Lens cap strap
- Wrist strap
- Accessory Box 3:
- Battery (2 ea)
- Battery charger
- Hard transport case
- Infrared camera with lens
- Lens cap, front
- Lens cap, front and rear (only for extra lenses)
- FLIR Thermal Studio
Please Note: Thermal Imaging Cameras are classified by the U.S. Department of Commerce as "dual use" instruments. Transcat is authorized to sell these instruments only in the United States and Canada. Diversion contrary to U.S. law is prohibited. To ensure that Thermal Imagers sold by Transcat do not go outside the US or Canada, we require a Dual Use Instrument End-User Certification Form to be filled out at time of purchase.
