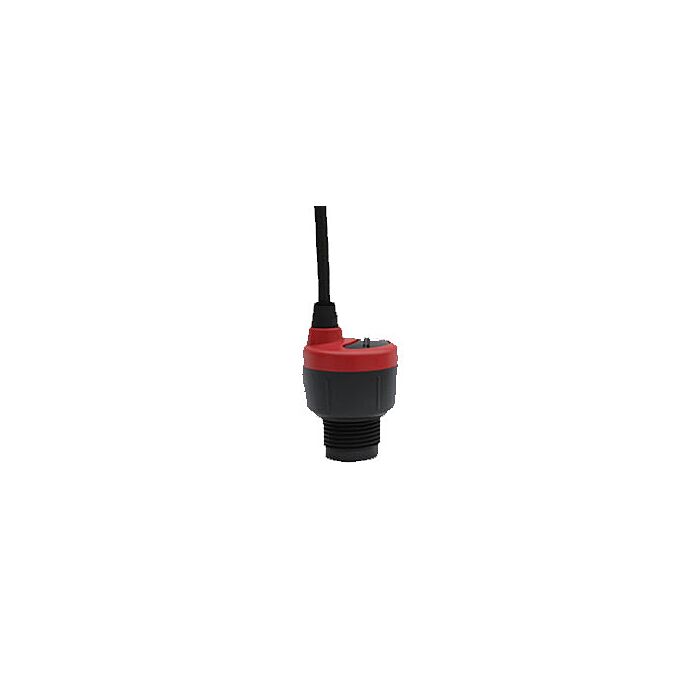

Flowline DS14-01

EchoPod (Red) Switch & Cont.-1.25m range, 1 NPT

Order #: DS14-01

Mfg #: DS14-01

Clearance

Special Price Regular Price

Limited quantities. Pricing valid for quantities in stock only.

Availability:

In stock

Add Calibration

Qty

Tariff fees or manufacture imposed surcharges may be applicable.

Switch and control functions with continuous level measurement output up to 49.2" (1.25m)
Configuration is fast and easy via WebCal software and USB adapter
Narrow 2" beam width and short 2" dead band optimized for small tanks
Four (4) programmable relays rated @ 1A / 60VA for switch, pump or valve control and fail-safety
PVDF transducer and 6P polycarbonate enclosure for corrosive liquids
Automatic temperature compensation for accurate measurement
Range: 49.2" (1.25m)
Accuracy: 0.125" (3mm)
Resolution: 0.019" (0.5mm)
Dead band: 2" (5cm)
Beam width: 2" (5cm)
Configuration: WebCal® PC Windows® USB 2.0
Memory: Non-volatile
Supply voltage: 12-24 VAC / VDC
Consumption: 0.5W
Contact type: (4) SPST relays
Contact rating: 60 VA, 1A maximum
Contact fail-safe: Power loss: Hold last
Power on: Open, close or hold last
Hysteresis: Selectable
Process temp.: F: 20° to 140°C: -7° to 60°
Temp. comp.: Automatic
Ambient temp.: F: -31° to 140°C: -35° to 60°
Pressure: MWP = 30 PSI (2 bar)
Enclosure rating: Type 6P, encapsulated, corrosion resistant & submersible
Encl. material: Polycarbonate
Strain relief mat.: Santoprene
Trans. material: PVDF
Cable jacket mat.: Polyurethane
Cable type: 9-conductor, shielded
Cable length: 48" (1.2m)
Process mount: 1" NPT (1" G)
Mount gasket: Viton®
Classification: General purpose
Compliance: CE, RoHS
Approvals: cFMus
