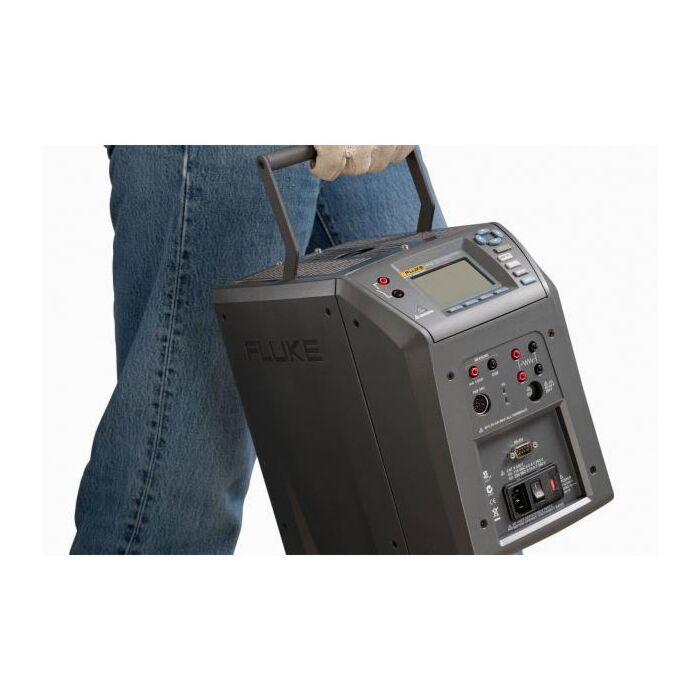

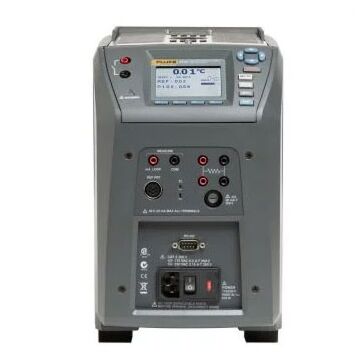

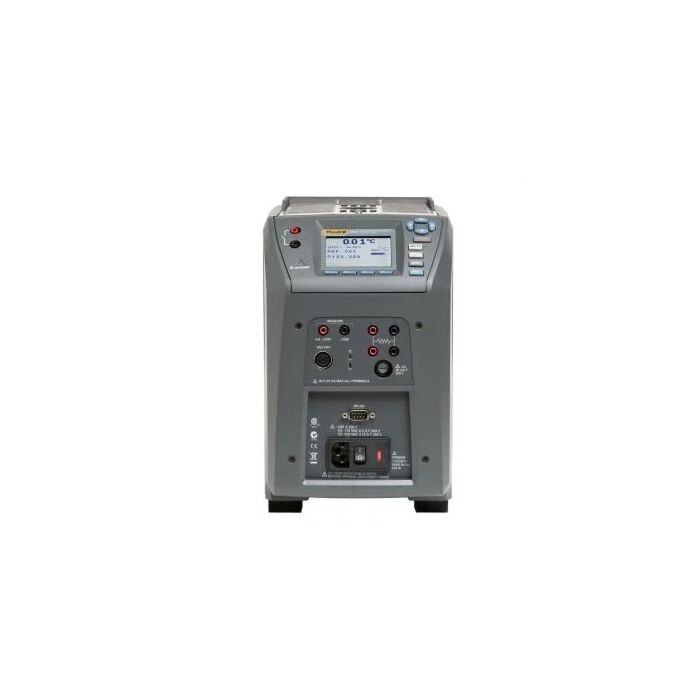

Fluke Calibration 9143-B-156 Mid-Temperature Dry-Well Field Calibrator with 9143-INSB, 115V

Product Highlights

• Field Metrology Well, 33 °C to 350 °C, w/9143-INSX
• Temperature Range at 23 °C: 33 °C to 350 °C (91 °F to 662 °F)
• Display Accuracy: ± 0.2 °C Full Range
• Stability: ± 0.02 °C at 33 °C ± 0.02 °C at 200 °C ± 0.03 °C at 350 °C
• Axial Uniformity at 40 mm (1.6 in): ± 0.04 °C at 33 °C ± 0.1 °C at 200 °C ± 0.2 °C at 350 °C
• Radial Uniformity: ± 0.01 °C at 33 °C ± 0.015 °C at 200 °C ± 0.02 °C at 350 °C
• Loading Effect (with a 6.35 mm reference probe and three 6.35 mm probes): ± 0.015 °C Full Range
• Hysteresis: 0.03°C
• Operating Conditions: 0 °C to 50 °C, 0 % to 90 % RH (non-condensing)
• Environmental Conditions (for all specifications except temperature range): 13 °C to 33 °C
• Immersion (Well) Depth: 150 mm (5.9 in)
• Insert OD: 25.3mm (1.00 in)
• Heating Time: 5 min: 33 °C to 350 °C
• Cooling Time: 32 min: 350 °C to 33 °C 14 min: 350 °C to 100 °C
• Resolution: 0.01 °
• Display: LCD, °C or °F user-selectable
• Size (H x W x D): 290 mm x 185 mm x 295 mm (11.4 x 7.3 x 11.6 in)
• Weight: 7.3 kg (16 lb)

Each Unit Includes

• Insert B
• RS-232 and 9930 Interface-it control software
