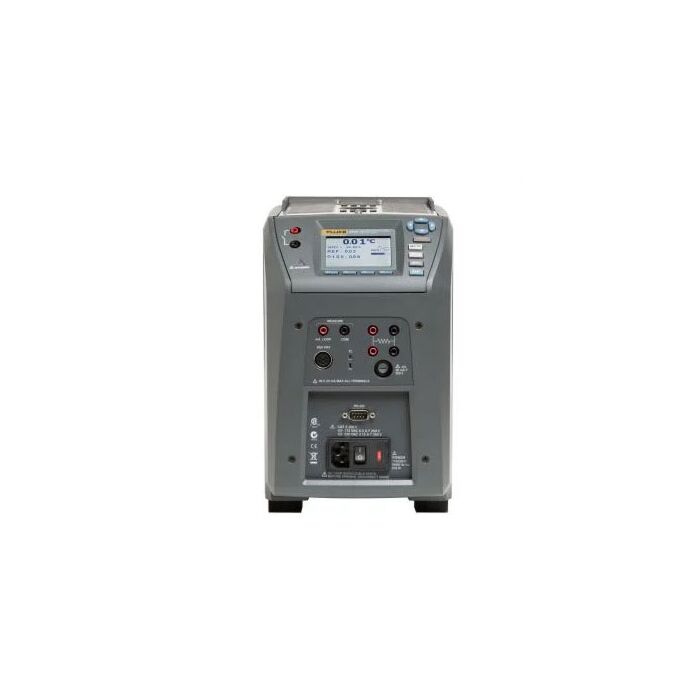

Fluke Calibration 9143-DW-156 Mid-Temperature Dry-Well Field Calibrator, No Insert, 115V
Mid-Temperature Dry-Well Field Calibrator, No Insert, 115V
Order #: 9143-DW
Mfg #: 3054724
$5,861.00
Fluke Calibration 9143-DW-156 Mid-Temperature Dry-Well Field Calibrator, No Insert, 115V
Mid-Temperature Dry-Well Field Calibrator, No Insert, 115V
Order #: 9143-DW
Mfg #: 3054724
$5,861.00
Availability: Ships in 3-4 weeks
Product Highlights
- The Hart 9143-X is equipped with a large, easy-to-read LCD display, function keys, and menu navigation buttons
- New control technology guarantees excellent performance in extreme environmental conditions
- The Hart 9143 is stable from ± 0.02 °C at 33 °C and ± 0.03 °C at 350 °C
- Lightweight, portable, and fast
- Built-in two-channel readout for PRT, RTD, thermocouple, 4-20 mA current
- True reference thermometry with accuracy to ±0.01 °C
- On-board automation and documentation
- Metrology performance in accuracy, stability, uniformity, and loading
- Display accuracy of ± 0.2 °C over full range
- Heating Time: 5 min: 33 °C to 350 °C
- Cooling Time: 32 min: 350 °C to 33 °C, 14 min: 350 °C to 100 °C
- Immersion (Well) Depth: 150 mm (5.9 in)
- Insert OD: 25.3 mm (1.00 in)
- Size (H x W x D) 290 x 185 x 295mm
- Weight: 7.3 kg (16 lb)
- Hart Scientific 9143-X Warranty: 1 year
Each Unit Includes
- Hart 9143 Users Manual
- Technical Manual on CD
- Serial Cable 9930
- Interface-it Software
- Report of Calibration
- Insert Removal Tool
