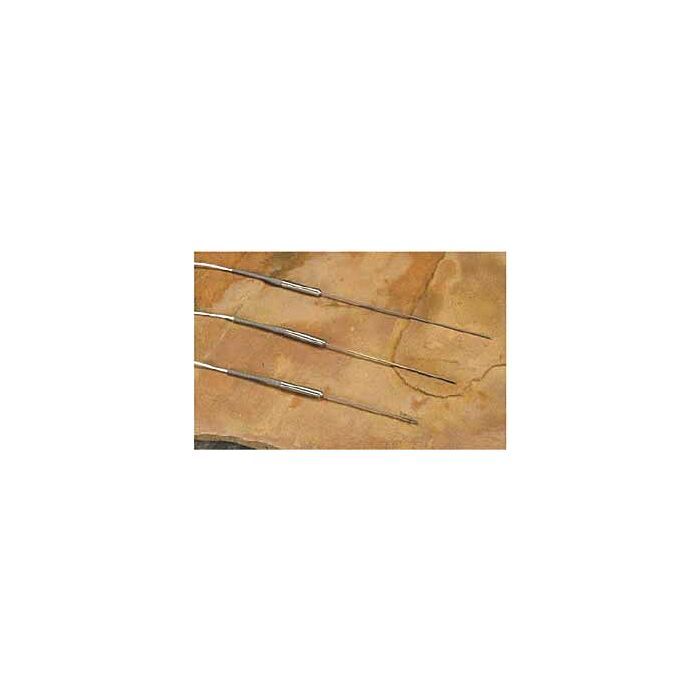

Fluke Calibration 5618B-12-B Secondary PRT Probe, 12" x 1/8"
Secondary PRT Probe, 12" x 1/8" OD
Order #: 5618B-12-B
Mfg #: 3003240
$1,700.00
Fluke Calibration 5618B-12-B Secondary PRT Probe, 12" x 1/8"
Secondary PRT Probe, 12" x 1/8" OD
Order #: 5618B-12-B
Mfg #: 3003240
$1,700.00
Availability: Ships in 3-4 weeks
Product Highlights
- Resistance: Nominal 100Ω at 0 °C
- Temperature Coefficient: 0.003923Ω/Ω/ °C nominal
- Temperature Range: -200 °C to 500 °C
- Drift Rate: ±0.1 °C when used periodically to 500 °C
- Sheath Material: 316 SST
- Leads: 22 AWG Teflon, 6'
- Termination: 5 pin DIN
- Hysteresis: Less than 0.01 °C at 0 °C when using -196 °C and 420 °C as the end points.
- Time Constant: 9 seconds max for 63.2 %
- Thermal EMF: Less than 25 mV at 420 °C
- Size: 305 mm L x 3.2 mm dia. (12 x 1/8 in)
Each Unit Includes
- accredited calibration w/ITS-90 coefficients, R vs. T values in 1 °C increments
