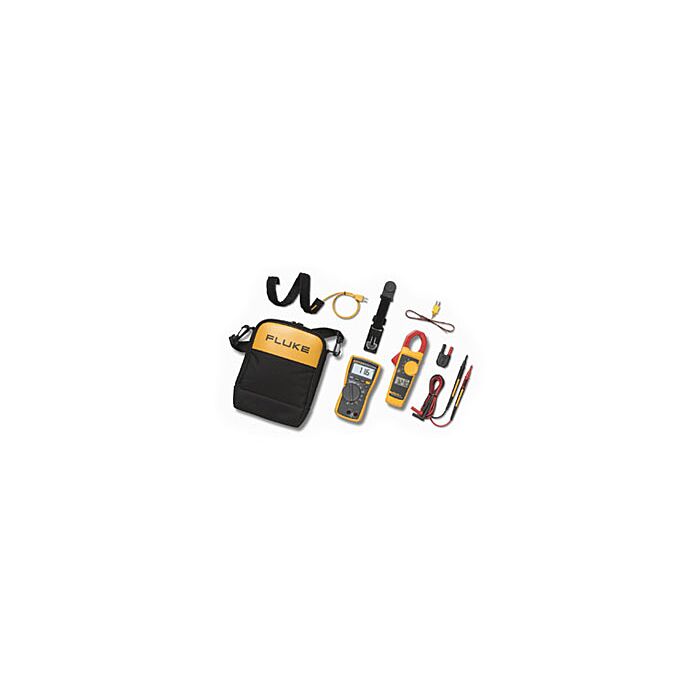

Fluke 116/323 KIT HVAC Combo Kit - Includes Multimeter and Clamp Meter
HVAC Combo Kit - Includes Multimeter and Clamp Meter
Order #: 116/323 KIT
Mfg #: 4296029
Special Price
$356.89
Regular Price
$429.99
Fluke 116/323 KIT HVAC Combo Kit - Includes Multimeter and Clamp Meter
HVAC Combo Kit - Includes Multimeter and Clamp Meter
Order #: 116/323 KIT
Mfg #: 4296029
Special Price
$356.89
Regular Price
$429.99
Availability:
In stock
Overview
Everything You Need in an HVAC Meter
With the ability to take temperature and microamp measurements, the Fluke 116 Digital Multimeter has everything you need to help you quickly troubleshoot problems with HVAC equipment and flame sensors. The Fluke 116 measures resistance, continuity, frequency and capacitance. Fluke 116 multimeters are independently tested for safe use in CAT III 600 V Environments.
Product Highlights
- For the complete solution to HVAC troubleshooting the extra value-packed HVAC Multimeter and Clamp Meter Combo Kit, provides the ability to troubleshoot and solve problems more efficiently by providing all the needed accessories an HVAC professional would need in a compact carry case
Each Unit Includes
- Fluke 116 HVAC Multimeter with Temperature and Microamps
- Fluke 323 True-rms Clamp Meter
-
Fluke C25 Soft Carrying Case for Fluke MetersSoft Carrying Case for Fluke MetersOrder #: C25
Mfg #: 681114
Availability:In stockSpecial Price $45.64 Regular Price $54.99 -
Fluke 80PK-8 Probe Pipe Clamp, Temperature ProbeProbe Pipe Clamp, Temperature Probe
Order #: 80PK-8
Mfg #: 200360
Availability:In stockSpecial Price $199.19 Regular Price $239.99 -
Fluke TL220 Industrial Test Lead Set for All Fluke MetersIndustrial Test Lead Set for All Fluke Meters
Order #: TL20
Mfg #: 2003625
Availability: Ships in 3-4 weeksSpecial Price $91.29 Regular Price $109.99 -
Fluke 80PK-10 Pipe Clamp Temperature ProbePipe Clamp Temperature Probe
Order #: 80PK-10
Mfg #: 3439199
Availability: Ships in 1-2 weeksSpecial Price $278.87 Regular Price $335.99 -
Fluke C115 Soft Carry Case with Shoulder StrapSoft Carry Case w/Shoulder Strap
Order #: C115
Mfg #: 2826063
Availability: Ships in 1-2 weeksSpecial Price $45.64 Regular Price $54.99 -
Fluke TLK-225 SureGrip Master Accessory SetSureGrip Master Accessory Set
Order #: TLK225
Mfg #: 2097031
Availability:In stockSpecial Price $192.96 Regular Price $229.99 -
Fluke TLK289 Industrial Master Test Lead SetIndustrial Master Test Lead Set
Order #: TLK289
Mfg #: 3045646
Availability:In stockSpecial Price $199.19 Regular Price $239.99 -
Fluke PRV240 Battery-powered voltage source proving unitBattery-powered voltage source proving unit
Order #: PRV240
Mfg #: 4566209
Availability:In stockSpecial Price $167.79 Regular Price $199.99 -
Fluke Toolpak Meter Hanging KitMeter Hanging Kit
Order #: TPAK80-4
Mfg #: 1281997
Availability:In stockSpecial Price $46.13 Regular Price $54.99
| Specifications | ||
| Maximum voltage between any terminal and earth ground | 600 V | |
| Surge protection | 6 kV peak per IEC 61010–1 600 VCAT III, Pollution Degree 2 | |
| Display | Digital: 6,000 counts, updates 4 per second | |
| Bar graph | 33 segments, updates 32 per second | |
| Operating temperature | -10°C to + 50°C | |
| Storage temperature | -40°C to + 60°C | |
| Battery type | 9 volt Alkaline, NEDA 1604A/ IEC 6LR61 | |
| Battery life | 400 hours typical, without backlight | |
| Accuracy Specifications | ||
| DC millivolts | Range/resolution | 600.0 mV / 0.1 mV |
| Accuracy | ±([% of reading] + [counts]): 0.5% + 2 | |
| DC volts | Range/resolution | 6.000 V / 0.001 V |
| 60.00 V / 0.01 V | ||
| 600.00 V / 0.1 V | ||
| Accuracy | ±([% of reading] + [counts]): 0.5% + 2 | |
| Auto volts | Range/resolution | 600.0 V / 0.1 V |
| Accuracy | 2.0% + 3 (DC, 45 Hz to 500 Hz) | |
| 4.0% + 3 (500 Hz to 1 kHz) | ||
| AC millivolts¹ True RMS | Range/resolution | 600.0 mV / 0.1 mV |
| Accuracy | 1.0% + 3 (DC, 45 Hz to 500 Hz) | |
| 2.0% + 3 (500 Hz to 1 kHz) | ||
| AC volts¹ True RMS | Range/resolution | 6.000 V / 0.001 V |
| 60.00 V / 0.01 V | ||
| 600.0 V / 0.1 V | ||
| Accuracy | 1.0% + 3 (DC, 45 Hz to 500 Hz) | |
| 2.0% + 3 (500 Hz to 1 kHz) | ||
| Continuity | Range/resolution | 600 Ω / 1 Ω |
| Accuracy | Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of | |
| 500 μs or longer. | ||
| Ohms | Range/resolution | 600.0 Ω / 0.1 Ω |
| 6.000 kΩ / 0.001 kΩ | ||
| 60.00 kΩ / 0.01 kΩ | ||
| 600.0 kΩ / 0.1 kΩ | ||
| 6.000 MΩ / 0.001 MΩ | ||
| Accuracy | 0.9% + 1 | |
| Range/Resolution | 40.00 MΩ / 0.01 MΩ | |
| Accuracy | 5% + 2 | |
| Diode Test | Range/resolution | 2.00 V / 0.001 V |
| Accuracy | 0.9% + 2 | |
| Capacitance | Range/resolution | 1000 nF / 1 nF |
| 10.00 μF / 0.01 μF | ||
| 100.0 μF / 0.1 μF | ||
| 9999 μF / 1 μF | ||
| 100 μF to 1000 μF | ||
| Accuracy | 1.9% + 2 | |
| Range/resolution | > 1000 μF | |
| Accuracy | 5% + 20% | |
| Lo-Z Capacitance | Range | 1 nF to 500 μF |
| Accuracy | 10% + 2 typical | |
| Temperature² | Range/resolution | -40°C to 400°C / 0.1°C |
| (Type-K thermocouple) | Accuracy | 1% + 10² |
| Range/resolution | -40°F to 752°F / 0.2°F | |
| Accuracy | 1% + 18² | |
| AC μA true-rms (45 Hz to 500 Hz) | Range/resolution | 600.0 μA / 0.1 μA |
| Accuracy | 1.5% + 3 | |
| DC μamps | Range/resolution | 600.0 μA / 0.1 μA |
| Accuracy | 1.0% + 2 | |
| Hz (V or A input)² | Range/resolution | 99.99 Hz / 0.01 Hz |
| 999.99 Hz / 0.1 Hz | ||
| 9.999 Hz / 0.001 Hz | ||
| 50.00 Hz / 0.01 Hz | ||
| Accuracy | 0.1% + 2 | |
| 1. All AC voltage ranges except Auto-V/LoZ are specified from 1% to 100% of range. Auto-V/LoZ is specified from 0.0 V. | ||
| 2. Temperature uncertainty (accuracy) does not include the error of the thermocouple probe. | ||
| 3. Frequency is AC coupled, 5 Hz to 50 kHz for AC voltage. Frequency is DC coupled, 45 Hz to 5 kHz for AC current. | ||
| 4. Temperature Range/Resolution: -40°F to 752°F / 0.2°F. | ||
| Mechanical and General Specifications | ||
| Size | 167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in) | |
| Weight | 550 g | |
| Warranty | 3 years | |
