Fluke 1555 KIT 10kV Insulation Tester Kit
10kV Insulation Tester Kit

Order #: 1555/KIT

Mfg #: 3665111

Questions about availability or need help? Contact Us:

(800) 633-0561
$7,831.99

Fluke 1555 KIT 10kV Insulation Tester Kit

10kV Insulation Tester Kit

Order #: 1555/KIT

Mfg #: 3665111

$7,831.99
Ideal for testing a wide range of high voltage equipment including switchgear, motors, generators, and cables.
Availability: Ships in 3-4 weeks
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Evaluate the trends, eliminate the doubt

The Fluke 1555 insulation resistance tester offers digital insulation testing up to 10 kV, making them ideal for testing a wide range of high voltage equipment including switchgear, motors, generators and cables.

Fluke insulation testers can now conduct the entire range of test voltages specified in IEEE 43-2000 with a best in class, 3 year warranty and CAT IV 600 V safety rating. With measurement storage and PC interface, the 1555 is the perfect tool for preventive or predictive maintenance programs designed to identify potential equipment failures before they occur.

Product Highlights

  • Test voltages up to 10 kV provides solutions for all applications
  • CAT IV 600 V safety rating
  • Voltage breakdown detection alerts the user that voltage is present and gives the voltage reading up to 600 V ac or dc for increased user safety
  • Selectable test voltages in 50 V steps from 250 to 1000 V, and 100 V steps 1000 V
  • Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall
  • Long battery life gives the user over 750 tests between charges
  • Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
  • Guard system eliminates the effect of surface leakage current on high-resistance measurements
  • Large digital/analog LCD for easy viewing
  • Capacitance and leakage current measurement
  • Ramp function for breakdown testing
  • Resistance measurements up to 2TΩ
  • Timer settings up to 99 minutes for timed tests
  • 3-year warranty

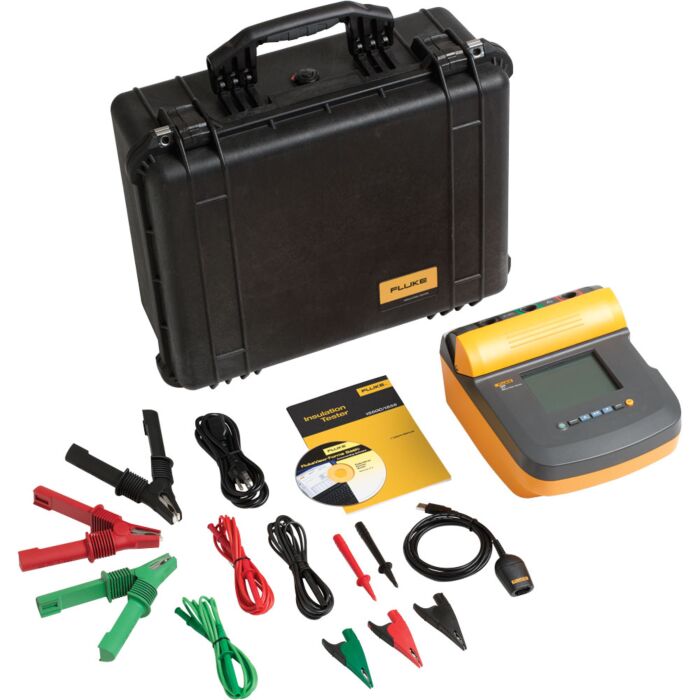

Each Unit Includes

  • Test cables with alligator clips (red, black, green)
  • Ruggedized Alligator clips
  • Infrared adapter with interface cable
  • FlukeView Forms basic CD-ROM
  • AC power cord
  • IP67 hard carrying case
  • Users manual on CD-ROM
  • Quick Reference card
  • English manual
  • USB-IR cable installation guide
  • FlukeView Forms installation guide
  • Certificate of calibration
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
  1. Fluke TL71 Premium Test Lead Set
    Fluke TL71 Premium Test Lead Set
    Premium Test Lead Set

    Order #: TL71

    Mfg #: 1274382

    Availability: Ships in 1-2 weeks
    Special Price $36.51 Regular Price $43.99
  2. Fluke TL26A 60" 5-Way Test Lead Set
    Fluke TL26A 60" 5-Way Test Lead Set
    60" 5-Way Test Lead Set

    Order #: TL26

    Mfg #: 1273172

    Availability: Ships in 3-4 weeks
    Special Price $75.52 Regular Price $90.99
  3. Fluke TL75
    Fluke TL75 Hard Point Test Lead Set
    Hard Point Test Lead Set

    Order #: TL75

    Mfg #: 855705

    Availability:
    In stock
    Special Price $30.70 Regular Price $36.99
  4. Fluke TL175 TwistGuard Test Leads
    Fluke TL175 TwistGuard Test Leads
    TwistGuard Test Leads

    Order #: TL175

    Mfg #: 3521976

    Availability: Ships in 4-6 weeks
    Special Price $38.17 Regular Price $45.99
  5. Fluke TL40 Retractable Tip Test Lead Set
    Fluke TL40 Retractable Tip Test Lead Set
    Retractable Tip Test Lead Set

    Order #: TL40

    Mfg #: 1590606

    Availability:
    In stock
    Special Price $57.26 Regular Price $68.99
Electrical Specifications
The tester's accuracy is specified for one year after calibration at operating temperatures of 0°C to 35°C. For operating temperatures outside the range (-20°C to 0°C and 35°C to 50°C), add ±.25% per °C, except on the 20% bands add ±1% per °C.
Test voltage (DC)
250 V Range < 250 kΩ,
250 kΩ to 5 GΩ
5 GΩ to 50 GΩ
> 50 GΩ
Accuracy (± reading) Unspecified
5%
20%
Unspecified
500 V Range < 500 kΩ
500 kΩ to 10 GΩ
10 GΩ to 100 GΩ
> 100 GΩ
Accuracy (± reading) Unspecified
5%
20%
Unspecified
1000 V Range < 1 MΩ
1 MΩ to 20 GΩ
20 GΩ to 200 GΩ
> 200 GΩ
Accuracy (± reading) Unspecified
5%
20%
Unspecified
2500 V Range < 2.5 MΩ
2.5 MΩ to 50 GΩ
50 GΩ to 500 GΩ
> 500 GΩ
Accuracy (± reading) Unspecified
5%
20%
Unspecified
5000 V Range < 5 MΩ
5 MΩ to 100 GΩ
100 GΩ to 1 TΩ
> 1 TΩ
Accuracy (± reading) Unspecified
5%
20%
Unspecified
10000 V Range < 10 MΩ
10 MΩ to 200 GΩ
200 GΩ to 2 TΩ
> 2 TΩ
Accuracy (± reading) Unspecified
5%
20%
Unspecified
Bar graph range 0 to 1 TΩ (1550C) - 0 to 2 TΩ (1555)
Insulation test voltage accuracy -0%, +10% at 1 mA load current
Induced AC mains current rejection 2 mA maximum
Charging rate for capacitive load 5 seconds per μF
Discharge rate for capacitive load 1.5 s/μF
Leakage current measurement Range 1 nA to 2 mA
Accuracy ±(5% + 2 nA)
Capacitance measurement Range 0.01 μF to 15.00 μF
Accuracy ±(15% rdg + 0.03 μF)
Timer Range 0 to 99 minutes
Resolution setting 1 minute
Resolution indication 1 second
Live circuit warning Warning range 30 V to 660 V AC/DC, 50/60 Hz
Voltage accuracy ±(15% + 2 V)
Software specifications FlukeView Forms™ basic software requires a PC running Windows XP, Windows Vista , Windows 7 or Windows 8.
General Specifications
Display 75 x 105 mm
Power 12 V lead-acid rechargeable battery, Yuasa NP2.8-12
Charger Input (AC) 85 V to 250 V AC 50/60 Hz 20 VA
This Class II (double insulated) instrument is supplied with a Class 1 (grounded) power cord. The protective earth terminal (ground pin) is not connected internally. The extra pin is for added plug retention only.
Dimensions 269 x 277 x 160 mm (10.6 x 10.9 x 6.3 in)
Weight 3.7 kg (8.2 lb)
Temperature (operating) -20°C to 50°C (-4°F to 122°F)
Temperature (storage) -20°C to 65°C (-4°F to 149°F)
Humidity 80% to 31°C decreasing linearly to 50% at 50°C
Altitude 2000 m
Enclosure sealing IP40
Input overload protection 1000 V AC
Electromagnetic compatibility EN 61326
Safety compliance IEC 61010-1: Overvoltage category II, Pollution Degree 2.
IEC 61010-2-030: Measurement 600V CAT IV / 1000V CAT III
IEC 61557-1, IEC 61557-2
