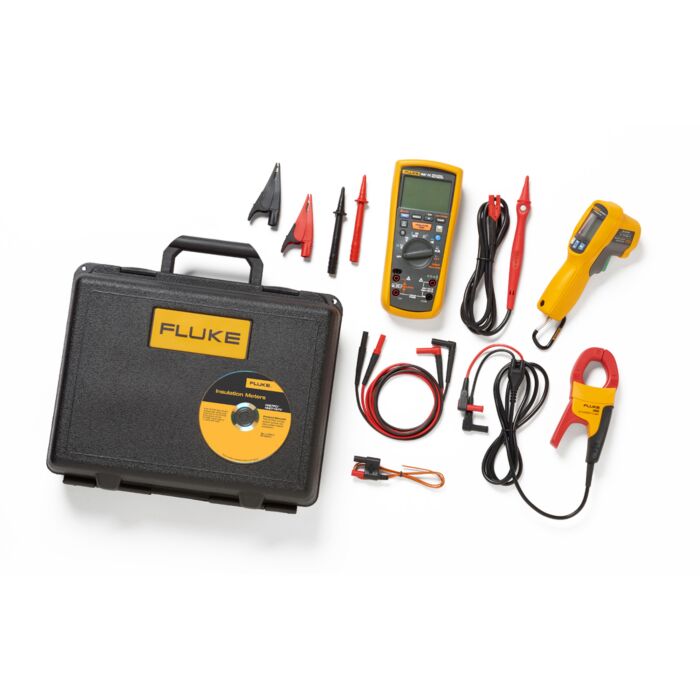

Fluke 1587 KIT/62 MAX+FC 2-IN-1 Advanced Electric Multimeter with 62MAX IR Gun and I400 Current Clamp

Product Highlights

Includes a Fluke 1587 FC 2-in-1 Insulation DMM, Fluke i400 Current Clamp, and a Fluke 62 Max+ Infrared Thermometer

• With the Fluke 1587 FC, perform insulation tests, plus a wide-range of DMM tasks with confidence and ease
• Use the Fluke i400 with your Fluke 1587 FC to accurately measure AC current without breaking the circuit
• The Fluke 62 MAX+ Infrared Thermometer measure -30 °C to 650 °C (-22 °F to 1202 °F), is extremely accurate, and has an IP54 rating for water resistance and dust proof

The Fluke 1587 FC 2-in-1 Insulation DMM

• Pl/DAR measurements with TrendIt™ graphs
• Memory storage through Fluke Connect Measurements app
• Temperature Compensation through Fluke Connect Measurements app
• VFD low-pass filter for accurate motor drive measurements
• Insulation test voltages 50 V, 100 V, 250 V, 500 V, 1000 V
• Insulation test voltages 500 V, 1000 V
• Insulation test: 0.01 M? to 2.0 G?
• Insulation test: 0.1 M? to 600 M?
• Auto-discharge of capacitive voltage
• Insulation test smoothing reading
• Frequency / Capacitance / Diode test / Temperature
• Min/Max / AC/DC Voltage / DC Millivolts / AC/DC Milliamps
• Resistance (0.1 ? to 50 M?) / Continuity / Auto power off
• Three-year warranty / Remote probe, test leads, alligator clips, K-type thermocouple, hard case

Fluke i400 AC Current Clamp

• Use with your Fluke 1587 FC to measure 1A AC to 400 A AC
• 1 mA/Amp output guarantees easy reading CAT III 1000 V / CAT IV 600 V overvoltage rating for added user protection
• Specially designed to offer maximum utility in a very compact shape
• Maximum conductor: Ø 32 mm
• 1 year warranty

Fluke 62 MAX+ Infrared Thermometer

• Temperature range -30 °C to 650 °C (-22 °F to 1202 °F)
• Accuracy ±1.0 °C or ±1.0% of reading, whichever is greater
• -10 °C to 0 °C: ±2.0
• -30 °C to -10 °C: ±3.0
• Response time (95%) Fluke 62 MAX+ < 300 ms (95% of reading)
• Spectral response 8 to 14 microns
• Emissivity 0.10 to 1.00
• Optical resolution 12:1 (calculated at 90% energy)
• Display resolution 0.1 °C (0.2 °F)
• Repeatability of readings ±0.5%
• Reading or < ±0.5 °C (1 °F), whichever is greater
• Power AA battery
• Battery life 8 hours with laser and backlight on

Each Unit Includes

• Fluke 1587 Insulation Multimeter
• Fluke i400 Current Clamp
• Fluke 62 Mini Infrared Thermometer
