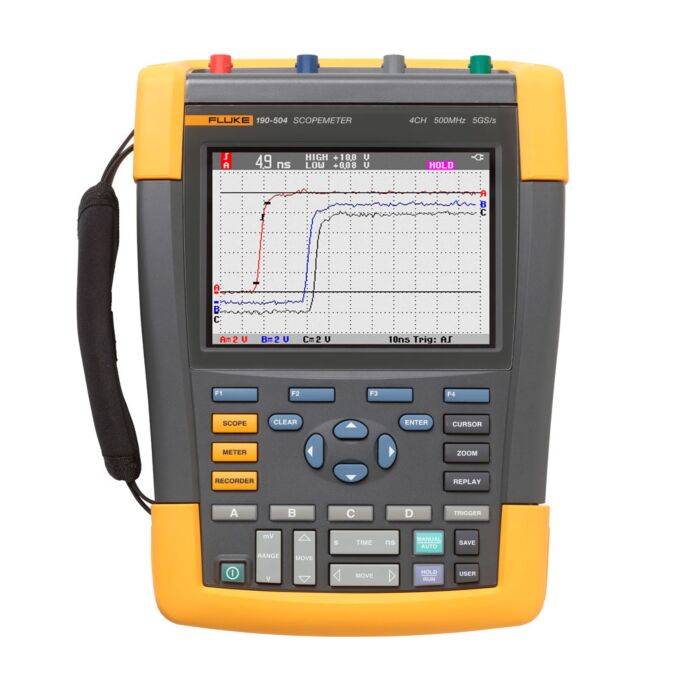

Fluke 190-504/S for Rent, Scopemeter, 500MHz, 4-Channel

Product Highlights

Why choose the new 500 MHz four-channel ScopeMeter® test tool?

A faster sample rate and higher bandwidth means greater accuracy and clarity. The scope will capture and display unknown waveform shapes, amplitudes and any disturbances. In order to display at least the fifth harmonic component of a signal, a good rule of thumb is to select a scope with a bandwidth of at least five times the maximum clock rate of the device under test. The faster the sample interval, the more accurate and detailed the scope will display a signal edge (dV/dt) and peaks of any reflections or transients.

• The 190 Series II is the one test tool you will reach for to tackle just about any troubleshooting task. They include a multimeter, TrendPlot™ and ScopeRecord™ roll paperless recorder modes and hands free operation with Connect-and-View™ triggering, and much more:
• Four electrically isolated inputs
• CAT III 1000 V / CAT IV 600 V safety rated
• Choose from 60 MHz, 100 MHz, 200 MHz or 500 MHz bandwidth models
• Fast sampling rate, up to 5 GS/s with up to 200 ps resolution (Depending on model and channels used)
• Deep memory: 10,000 samples per channel waveform capture so you can zoom in on the details
• Dedicated 999 Count digital multimeter.
• Four meter measurements via scope BNC inputs in four-channel models
• Connect-and-View™ continuous auto-trigger, single shot, pulse width, and video triggering
• ScopeRecord roll mode, capture waveform sample data for up to 48 hours
• TrendPlot, trend measurement readings for up to 22 days
• Advanced automatic measurements, power (Vpwm, VA, W, PF) and time (mAs, V/s, w/s)
• IP-51 rated for dust and drip proof to withstand harsh environments
• Isolated USB ports for memory devices and PC connectivity
• Li-Ion battery for extended operating timespan: 190-X04, four-channel models up to 7 hour (BP291 included standard)
• Charge spare battery using optional external battery charger EBC290
• Easy-access battery door to make it easy to swap batteries
• A handy slot to tether and lock down the oscilloscope while unattended using a standard Kensington® lock
