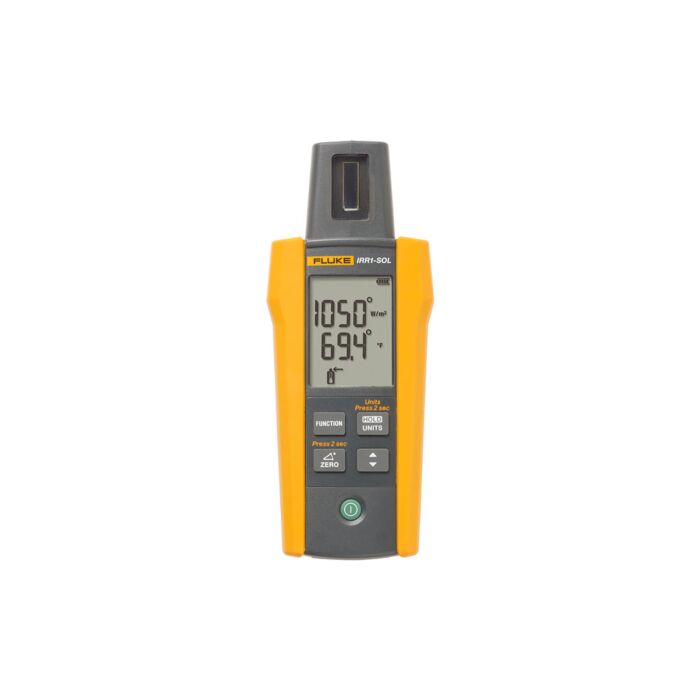

Fluke IRR1-SOL Solar Irradiance Meter, with temperature probe, carry case

Product Highlights

The Fluke IRR1 Irradiance Meter has been designed from the ground up to simplify the installation, commissioning and troubleshooting of photovoltaic arrays, measuring irradiance, temperature, and inclination of the solar array in a single handheld tool.

• Make the critical measurements needed for installing, testing, maintaining and reporting on solar panels or photovoltaic systems with one, easy-to-use tool.
• High precision mono-crystalline solar sensor: instantaneous irradiance measurements up to 1400 w/m2
• Two options for temperature measurement: use built-in temperature sensor or external suction mount temperature probe to measure ambient and panel temperature
• Integrated compass and inclination sensor: measure and document site and panel orientation and inclination

Key Attributes

• Irradiance (Range, Resolution and Accuracy)
• 0 - 1400 W/m²; 1 W/m²; ± (5 % + 5 Digit)
• Temperature (Range)
• -22 °F to 257 °F (-30 °C to 125 °C)
• Inclination Sensor (Range, Resolution, Accuracy)
• -90° to +90°; 0.1°; ±1.5°
• Compass (Range)
• 0° to 360°

Key Use of this Product

• Measure Solar Irradiance on Solar panels and sites
• Measures temperature of solar panel's surface
• Measures site and panel's inclination and direction (in degrees) with integrated compass
• FLK-SOL1 Irradiance Meters includes carrying case and external temperature probe with suction cup
