Order #: SOL-INS37-KIT
Mfg #: 5602284
Fluke SOL-INS37-KIT Solmetric PVA high efficiency IV Curve Tracer Insulation Testing 2500V Kit
Order #: SOL-INS37-KIT
Mfg #: 5602284
![Loading...](https://www.transcat.com/static/version1724161005/frontend/Transcat/default/en_US/images/loader-1.gif)
Product Highlights
The Solmetric line of PV Analyzer I-V curve tracers are widely used in Commissioning, Auditing, O&M, and Troubleshooting of PV systems.
The PVA-1500 kit offers an array of advanced features, including high throughput I-V curve tracing, providing quick and detailed performance data. Its intuitive user interface enables easy navigation and real-time analysis, allowing for immediate identification of potential issues. By pinpointing problems early, you can maximize your solar energy production and minimize downtime.
This toolkit combines the precision of the Fluke Solmetric PVA-1500HE2 I-V Curve Tracer with the advanced capabilities of the Fluke 1537 Insulation Tester, offering comprehensive diagnostics for solar arrays. The PVA-1500HE2 offers an array of advanced features, including high throughput I-V curve tracing, providing quick and detailed performance data. Its intuitive user interface enables easy navigation and real-time analysis, allowing for immediate identification of potential issues. Complementing this, the 1537 Insulation Tester provides insulation resistance testing up to 2500V, helping to detect potential safety hazards and prevent system failures. Together, these tools empower solar professionals to ensure the efficiency, reliability, and safety of solar installations with confidence, from commissioning and routine maintenance to troubleshooting and performance optimization.
- Comprehensive Diagnostics: The toolkit combines the precision of the Fluke Solmetric PVA-1500HE2 I-V Curve Tracer with the advanced capabilities of the Fluke 1537 2500V Insulation Tester, offering comprehensive diagnostics for solar arrays.
- Advanced I-V Curve Tracing: With high throughput I-V curve tracing, the PVA-1500HE2 provides quick and detailed performance data, enabling efficient troubleshooting and optimization of solar installations.
- Insulation Resistance Testing: The 1537 Insulation Tester offers insulation resistance testing up to 2500V, aiding in the detection of potential safety hazards and prevention of system failures, ensuring the safety and reliability of solar installations.
- Confidence in Efficiency and Safety: Together, these tools empower solar professionals to ensure the efficiency, reliability, and safety of solar installations with confidence, covering all aspects from commissioning and routine maintenance to troubleshooting and performance optimization.
Key Attributes
- DC Voltage: 1500V
- Current: 30A DC (Module Efficiency <19%)
- Current: 30A DC (Module Efficiency ≥19%)

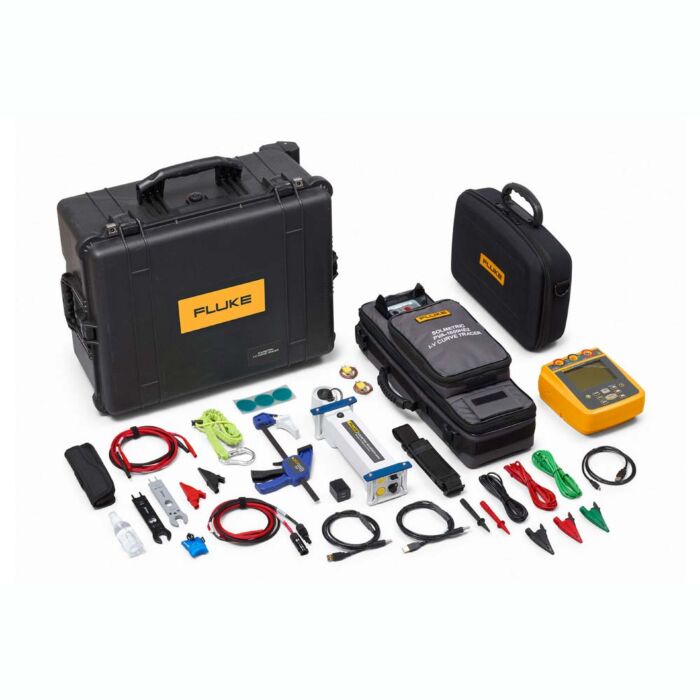

- Accessories Included: PVA-1500HE2: PVA HE2 unit, transit case, SolSensor™ and clamp, Windows application, alligator test leads, MC4 disconnect tool, chargers, Data Analysis Tool (DAT), 2x thermocouples and adhesive disks, sensor cleaning supplies, 1537: Insulation Resistance Tester, Test leads with alligator clips (red, black, green), Probe (red, black), Soft carrying case, USB cable, PC software
Features
- Best accuracy
- High Efficiency
- Highest measurement throughput (# I-V measurements per hour)
- 1537+ SOL PVA IV HE
- Largest display with best array troubleshooting features
- Database of 70,000 PV modules
- Measures up to 1500V at 30A
- 300 foot wireless sensor range
1537 Features
- Stable Resistance Measurements: Achieve faster, more stable insulation resistance measurements with a short circuit current up to 5mA.
- Fine-tunable Test Voltage: Adjust the test voltage from 250 V to 2500 V in 100 V increments to meet specific testing requirements.
- Dielectric Discharge Rate Calculation: Automatically calculate the dielectric discharge rate (DD) to aid in identifying elusive insulation issues.
- Ramp Test Mode: Linearly increase the applied test voltage 100 V/s to help identify potentially hard to identify fault conditions.
- Visual and Audio Continuity Indicator: Verify continuity visually on the screen display or with the audible indicator so you can focus on your testing procedure without looking at the display.
- Customizable Testing Parameters: Set user-defined labels, adjust test duration, and store measurement results for a tailored testing experience.
- Effortless Data Management: Download and manage data effortlessly with the provided PC software.
- Extended Warranty: Enjoy peace of mind with an extended 3-year warranty
-
