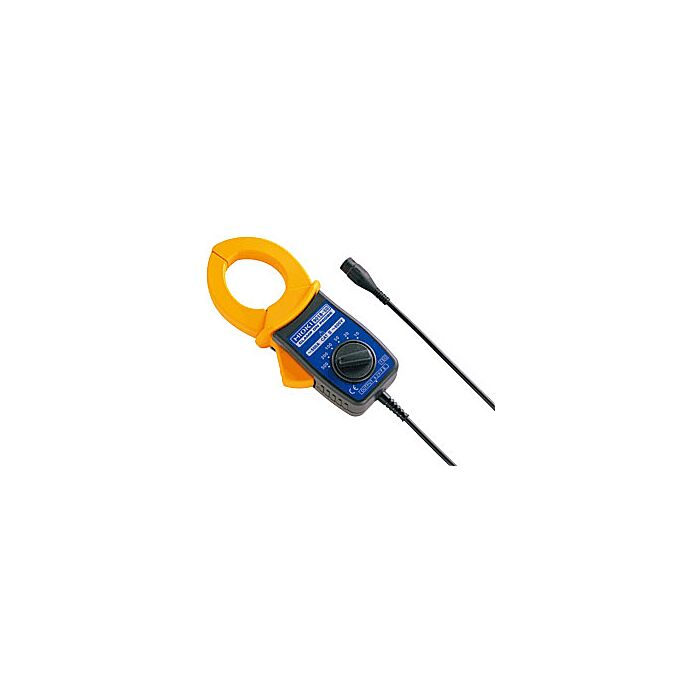

Hioki 9018-50 Clamp On Probe
Clamp On Probe
Order #: 9018-50
Mfg #: 9018-50
$406.00
Hioki 9018-50 Clamp On Probe
Clamp On Probe
Order #: 9018-50
Mfg #: 9018-50
$406.00
Availability: Ships in 3-4 weeks
Product Highlights
- 10 Amp to 50 Amp
- Rated current 500 A AC (10 A to 500 A full scale, 6 ranges selectable)
- Frequency band width 40 to 3 kHz (±1 % max.), phase ±2.5 ° max.
- Accuracy (at 50 or 60 Hz) ±1.5 % rdg. ±0.1 % f.s.
- Output rate 0.2 V AC at full scale range (waveform output), Output terminal: Insulated BNC
- Max. circuit voltage 600 V AC rms (insulated wire)
- Core jaw dia. Ø46 mm(1.81 in), or 50 mm(1.97 in) × 20 mm(0.79 in) busbar
- Power supply None
- Dimensions, mass 74 mm(2.91 in)W × 184 mm(7.24 in)H × 37 mm(1.46 in)D, 410 g (14.5 oz), cord length: 3 m(9.84 ft)
-
-
