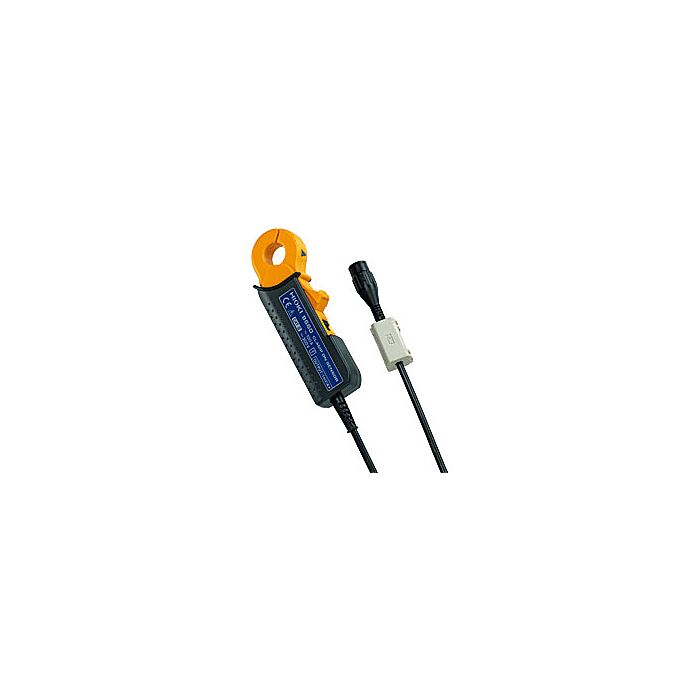

Hioki 9660 Clamp On Sensor
Clamp on Sensor
Order #: 9660
Mfg #: 9660
$329.00
Hioki 9660 Clamp On Sensor
Clamp on Sensor
Order #: 9660
Mfg #: 9660
$329.00
Availability: Ships in 3-4 weeks
Product Highlights
- Hioki Model# 9660
- Rated input current 100 A AC
- Rated output voltage 0.1 V AC
- Accuracy (at 45 to 66 Hz) Amplitude: ±0.5 % rdg. ±0.2 % f.s. , Full scale (f.s.) is the 3196 range value, Phase: ±1 ° or less (at 90 A or less), ±1.3 ° or less (at 90 A to 100 A)
- Frequency characteristics 66 Hz to 5 kHz (±1 % or less from accuracy)
- Max. allowable input continuous 130 A rms (45 to 66 Hz)
- Max. circuit voltage 300 V AC rms (insulated wire)
- Core jaw dia. Ø15 mm(0.59 in)
- Dimensions, mass 46 mm(1.81 in)W × 135 mm(5.31 in)H × 21 mm(0.83 in)D, 230 g (8.1 oz), cord length: 3 m(9.84 ft)
-
