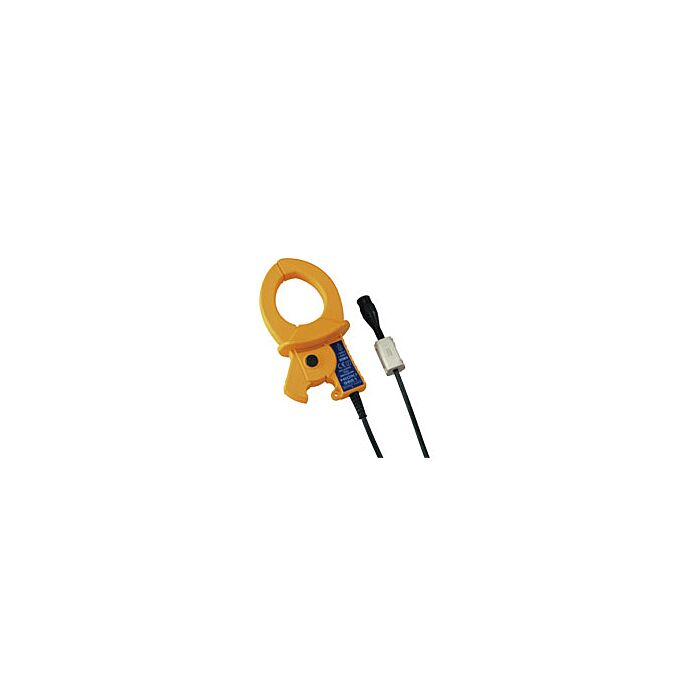

Hioki 9661 Clamp On Sensor
Clamp On Sensor

Order #: 9661

Mfg #: 9661

Questions about availability or need help? Contact Us:

(800) 633-0561
$359.00

Hioki 9661 Clamp On Sensor

Clamp On Sensor

Order #: 9661

Mfg #: 9661

$359.00
Availability: Ships in 3-4 weeks

Choose Your Options:

Tariff fees or manufacture imposed surcharges may be applicable.
This product is available for shipping to the United States and Puerto Rico only.

Product Highlights

  • For inverter devices or commercial power lines
  • Up to 500 A, or 1000 A measure
  • Rated primary current AC 500 A
  • Output voltage AC 500 mV f.s. (AC 1 mV/A)
  • Amplitude accuracy ±0.3 % rdg. ±0.01 % f.s. (45 to 66 Hz, f.s.= rated primary current)
  • Phase accuracy ±0.5° (at 45 Hz - 5 kHz)
  • Max. allowable input Continuous 550 A rms (at 45 - 66 Hz)
  • Frequency characteristics 40 Hz to 5 kHz: ± 1.0% (deviation from accuracy)
  • Max. rated voltage to earth AC 600 V rms (insulated wire)
  • Core jaw dia. 46 mm (1.81 in)
  • Dimensions, mass 77 mm (3.03 in) W × 151 mm (5.94 in) H × 42 mm (1.65 in) D, 380 g (13.4 oz), cord length 3 m (9.84 ft)
