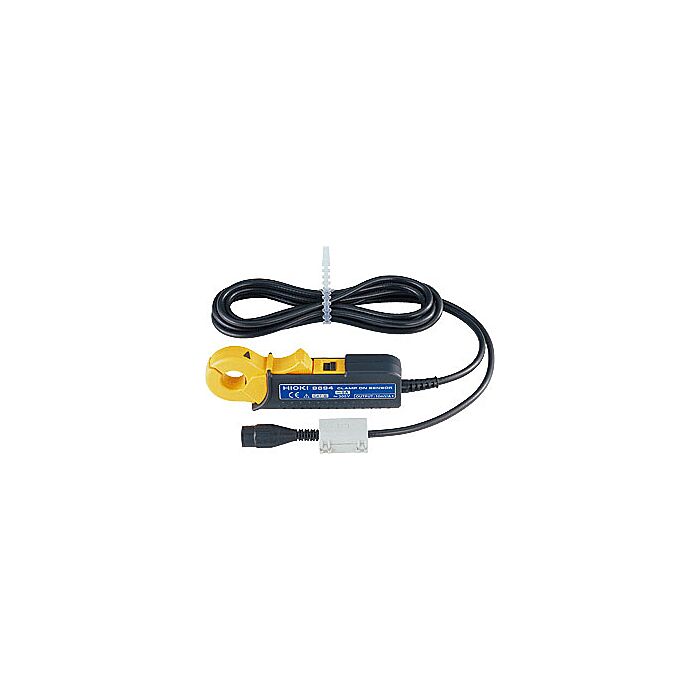

Hioki 9694 Clamp On Sensor, 5A AC
Clamp On Sensor 5A AC

Order #: 9694

Mfg #: 9694

Questions about availability or need help? Contact Us:

(800) 633-0561
$432.00

Hioki 9694 Clamp On Sensor, 5A AC

Clamp On Sensor 5A AC

Order #: 9694

Mfg #: 9694

Loading...
Print Save Item Compare
$432.00
Register to view exclusive member pricing
Availability: Ships in 3-4 weeks

 Ships Free Over $100

Choose Your Options:

Tariff fees or manufacture imposed surcharges may be applicable.
This product is available for shipping to the United States and Puerto Rico only.

Product Highlights

  • Rated input current: 5 A AC
  • Rated output current: 50 mV AC
  • Accuracy (at 45 to 66 Hz) Amplitude: ±0.3 % rdg. ±0.02 % f.s. - Full scale (f.s.) is the 3196 range value
  • Phase: ±2° or less
  • Frequency characteristics: 66 Hz to 5 kHz (±1 % or less from accuracy)
  • Max. allowable input: continuous 50 A rms (45 to 66 Hz)
  • Max. circuit voltage: 300 V AC rms (insulated wire)
  • Core jaw dia.: Ø15 mm(0.59 in)
  • Dimensions: 46 mm( 1.81 in) W × 135 mm (5.31 in) H × 21 mm (0.83 in) D
  • Weight: 230 g (8.1 oz)
  • Cord length: 3 m (9.84 ft)
