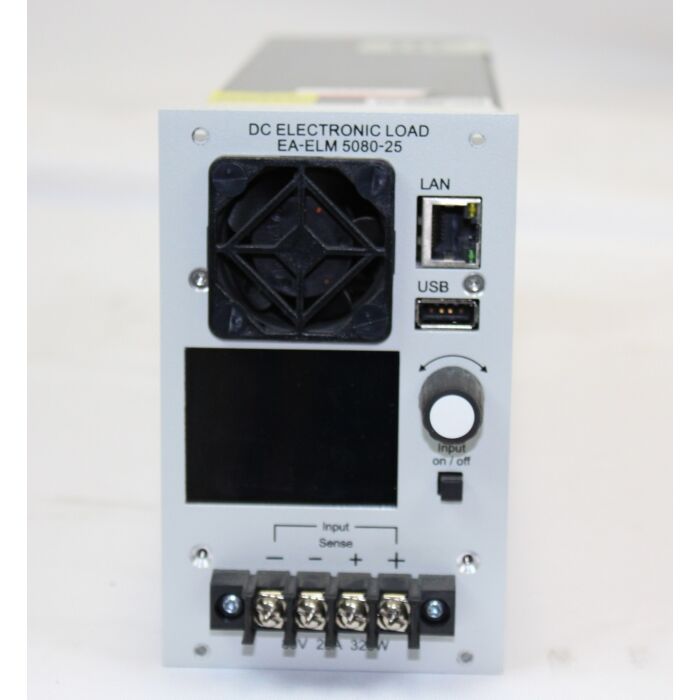

Used Intepro ELM5080-25 Multichannel DC Load with Energy Recovery, 80V/25A/320W
Order #: ELM5080-25-USED
Mfg #: ELM5080-25
Request a Used Instrument Quote
Have a Question? Speak to a Transcat Expert: 800.264.4059
Transcat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support
DC Load Modules
The load modules come in two voltage variants, 80 V and 200 V, and incorporate the common regulation modes, constant voltage (CV), constant current (CC) and constant power (CP). Both modules have a max. power of 320 W, while the 80 V module can take up to 25 A and the 200 V module can take up to 10 A. By installing up to 10 units of these load modules into a single rack it is possible to extend the power to 3200 W max.
Front Panel Control
The LCD touch panel offers a modern and intuitive user interface for controlling the four operating modes, Constant Voltage (CV), Constant Current (CC), Constant Power (CP) and Constant Resistance (CR).
Equipped with Ethernet
Equipped with an Ethernet port by default, the ELR 5000 load units can be easily integrated into a network of LAN devices. External control is possible via an included Windows software package or via custom applications created in LabView or other IDEs. The commonly known communication protocols SCPI and ModBus are supported.
Regenerative back to the grid
The energy recovery function inverts the supplied DC energy into a synchronous sine wave current and feeds it back into the local grid. This reduces the usual heat dissipation to a minimum and saves energy costs at the same time. This important feature of these electronic loads is that the AC input, i.e. grid connection, is also used as output for the recovery of the supplied DC energy, which will be converted with an efficiency of approximately 90%. This way of energy recovery helps to lower energy costs and avoids expensive cooling systems, such as required for conventional electronic loads which convert the DC input energy into heat.
