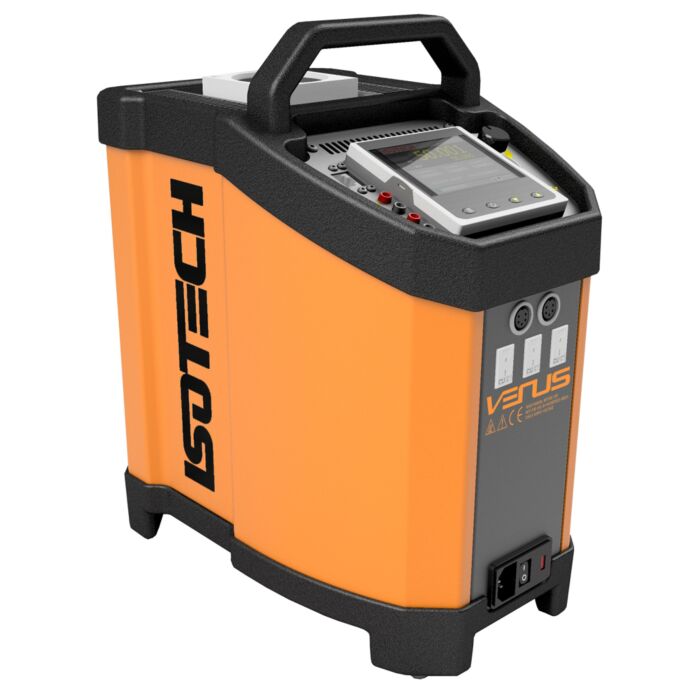

Isotech VENUS 4951 SITE

Product Highlights

• SITE - Includes inbuilt independent temperature indicator for a reference probe
• -45°C to 250°C. 35 x 160mm Volume
• Fast Response 35mm x 160mm Calibration Volume
• Calibrate Whole Measurement Loop
• Stability ±0.03°C
• Stability Blackbody ±0.03°C Surface Sensor ±0.5°C ITS-90 Cells ±0.0005°C
• Uniformity - Between Wells Dry Block Mode (Radial)Uniformity - Lower 40mm (Axial) Dry Block ModeUniformity - Radial Bath ModeUniformity - Lower 40mm (Axial) as Liquid BathHeating Time -30°C to 140°C: 15 mins
• Cooling Time 140°C to 0°C: 15 mins
• Calibration Volume 35 x 160mm
• Standard Insert 6 pockets, 2 x 4.5mm, 2 x 6.4mm, 1 x 8.0mm, 1 x 9.5mm diameter, all 157mm deep
• Insert Types Choice of three - See Accessories
• CJC Accuracy 0.35°C
• Dimensions 384H (including handle) x 212W x 312D mm
• Power 150 Watts
• Voltage 115Vac or 230Vac 50/60Hz
• Weight 10.2kg
• 1 In ambient of 20°C: Min. Temperature is 65°C Below Ambient, Absolute Minimum -55°C
• 2 In ambient of 20°C: Min. Temperature is 55°C Below Ambient, Absolute Minimum -45°C
• 3 In ambient of 20°C
• 4 Dry Block Mode only: Comparing 4.5mm Well to Controller Display Value
