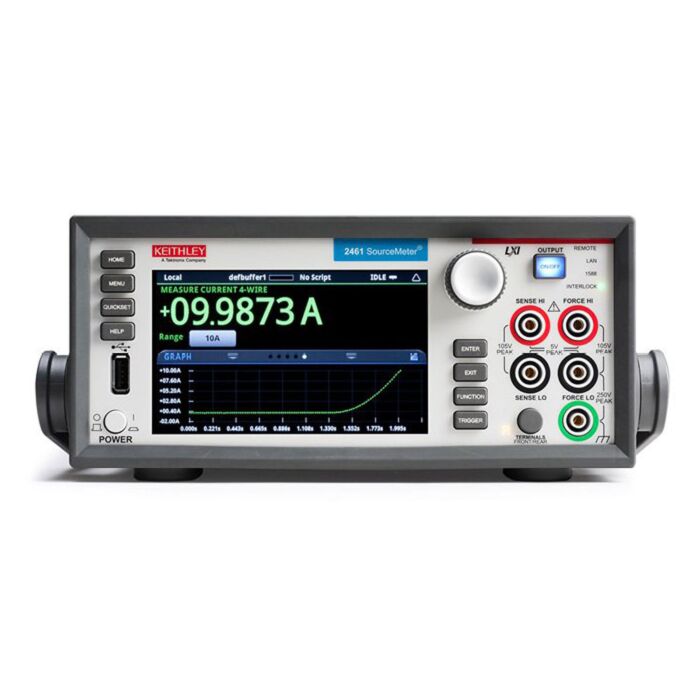

Keithley 2461 Hi Curr Interactive SourceMeter with 10A Pulse & Digitizer

Product Highlights

• Up to 105 V, 7 A DC, 100 W max; 100 V, 10 A Pulse 100 W max.
• Combines the capabilities of analyzers, curve tracers, and I-V systems
• Dual 1MS/s digitizers for fast sampling measurements
• Five-inch, high-resolution capacitive touchscreen GUI
• 0.012% DCV accuracy with 6-1/2 digit resolution
• Source and sink (4-quadrant) operation
• Four "Quickset" modes for fast setup and measurements
• Context-sensitive help function
• Front panel input banana jacks; rear panel mass termination screw connections
• SCPI and Test Script Processor (TSP®) programming modes
• Front-panel USB 2.0 memory I/O port for transferring data, test scripts, or test configurations
• One-year warranty

Each Unit Includes

• 2460-KIT Rear Panel Mating Mass Terminated Screw Connector, 8608 High Performance Test Leads, USB-B-1 USB Cable (Type A to Type B, 3.3 ft), CS-1616-3 Safety Interlock Mating Connector, CA-180-3A TSP-Link/Ethernet Cable, Documentation CD, 2461 QuickStart Guide, Test Script Builder Software, KickStart Startup Software and LabVIEW and IVI Drivers (Test Script Builder, KickStart and LabVIEW software available at www.tektronix.com)
