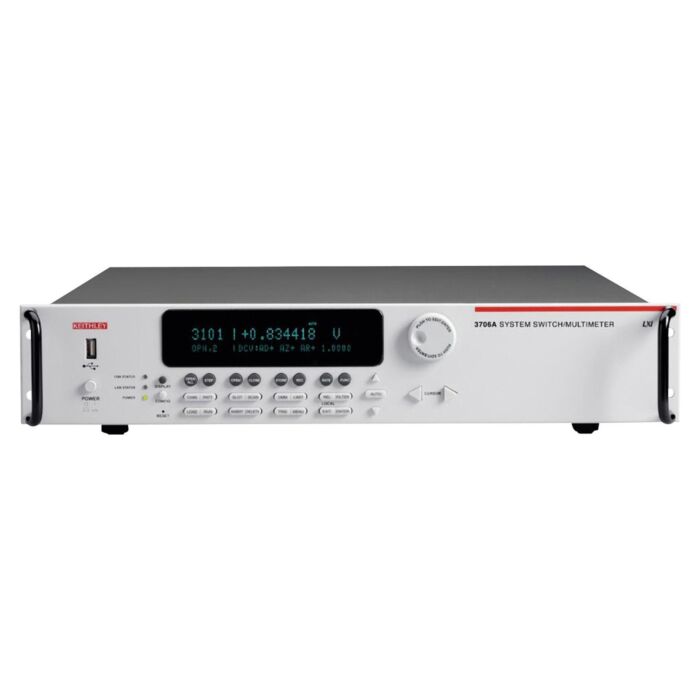

Keithley 3706A System Switch/Multimeter

Product Highlights

To provide users with greater versatility when designing test systems, the Series 3700A mainframes are equipped mwith many standard features. For example, easy connectivity is supported with three remote interfaces: LXI/Ethernet, General Purpose Interface Bus (GPIB), and Universal Serial Bus (USB). Fourteen digital I/O lines are also included, which are programmable and can be used to control external devices such as component handlers or other instruments. Additionally, system control can be greatly enhanced by using our Test Script Processor (TSP) technology. This technology provides “smart” instruments with the ability to perform distributed processing and control at the instrument level versus a central PC.

• Six-slot system switch mainframe with optional high performance multimeter
• Multi-processor architecture optimized for high throughput scanning and pattern switching applications
• Remote PC control via Ethernet, USB, and GPIB interfaces
• Up to 576 two-wire or 720 one-wire multiplexer channels in one mainframe
• Up to 2,688 one-pole matrix crosspoints in one mainframe
• Embedded Test Script Processor (TSP) offering unparalleled system automation, throughput, and flexibility
• TSP-Link Technology master/slave connection provides easy system expansion and seamless connection to Series 2600 and 2600B SourceMeter SMU instruments
• Capable of over 14,000 readings per second to memory with optional high performance multimeter
• LXI interface with embedded Web browser interface for test setup, maintenance, and basic application control

Each Unit Includes

• Test Script Builder Software Suite CD
• Ethernet Crossover Cable (CA-180-3A)
• Series 3700A Product CD (includes LabVIEW®, IVI C, and IVI.COM drivers)
