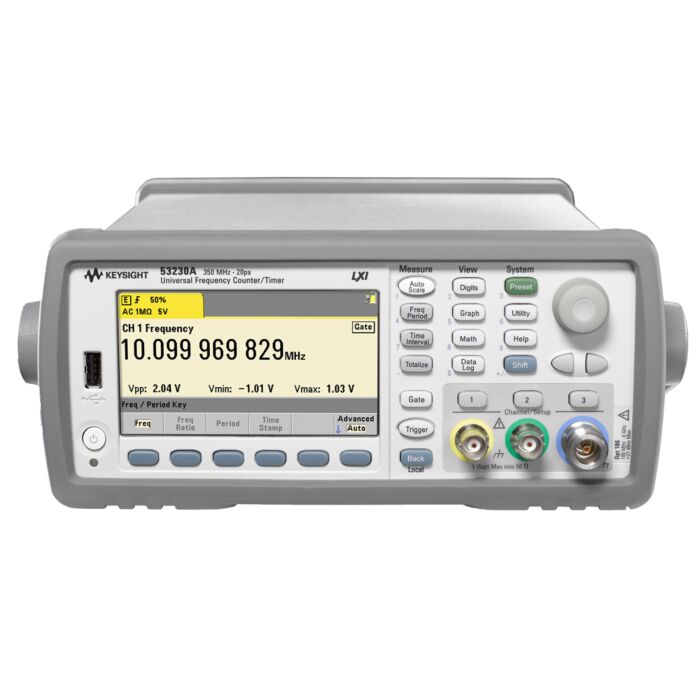

Keysight 53230A-106 Channel 3-6GHz CW Upgrade

Add Channel 3-6GHz CW

Order #: 53230A-106

Mfg #: 53230A-106

$2,049.00

Availability: Ships in 4-6 weeks

New Purchase Calibration

None

Calibration without Data + $384.38

Calibration with Data + $514.33

Accredited Calibration with Data and Uncertainties + $615.89

Add Calibration

Qty

This product is available for shipping to the United States and Canada only.

6 GHz Continuous Wave Microwave Channel 3 for 53230A

Frequency Range: 100 MHz _ 6 GHz
Connector: Front panel precision Type-N (f). Option 203 moves the input connector to a rear panel SMA (f)
Input Impedance: 50 Ω ± 1.5% (SWR < 2.5)
Input Coupling: AC
Amplitude Range: autoranged to +19 dBm max. (2 Vrms)
Sensitivity: -27 dBm (10 mVrms)
Maximum Input Damage Level: > +27 dBm (5 Vrms)
