Keysight DSOX2WAVEGEN WaveGen Function Generator, 20MHz
WaveGen Function Generator 20MHz

Order #: DSOX2WAVEGEN

Mfg #: DSOX2WAVEGEN

Questions about availability or need help? Contact Us:

(800) 633-0561
$688.00

Keysight DSOX2WAVEGEN WaveGen Function Generator, 20MHz

WaveGen Function Generator 20MHz

Order #: DSOX2WAVEGEN

Mfg #: DSOX2WAVEGEN

$688.00
Availability: Ships in 4-6 weeks
This product is available for shipping to the United States and Canada only.
This product is available for shipping to the United States and Canada only.
This product is available for shipping to the United States and Canada only.

Product Highlights

  • Built-in Function Generator Option
  • Integrated 20 MHz function generator
  • Turn on WaveGen at any time by ordering the DSOX2WaveGen option and install the license yourself

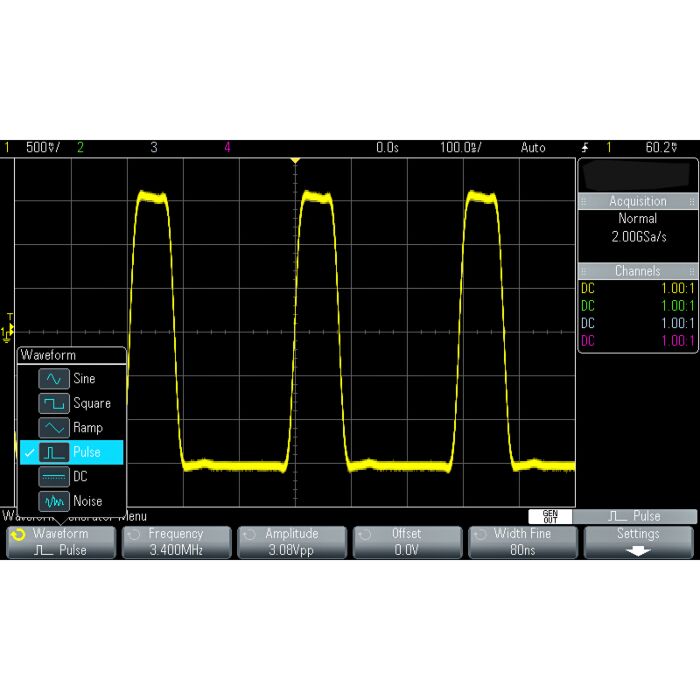

  • The WaveGen can produce the following wave shapes: sine wave, square wave (with variable duty cycle), ramp, pulse (with variable pulse width), DC, and noise
  • Output levels can range from 20 mVp-p up to 5.0 Vp-p when terminated into high impedance, or 10 mVp-p to 2.5 Vp-p when terminated into 50-Ω

Ideal for educational or design labs where bench space and budget are at a premium, the integrated function generator provides stimulus output of sine, square, ramp, pulse, DC, and noise waveforms to your device under test. No need to buy a separate function generator when you can get one integrated in your new oscilloscope. The WaveGen provides an industry-first, general-purpose, integrated 20-MHz function generator capabilities with user-definable frequencies, amplitudes, offset, and pulse widths. The WaveGens output is routed to a BNC on the front panel of the oscilloscope below the display. This WaveGen option works with all InfiniiVision 2000 X-Series 2 channel and 4 channel DSO and MSO models.
