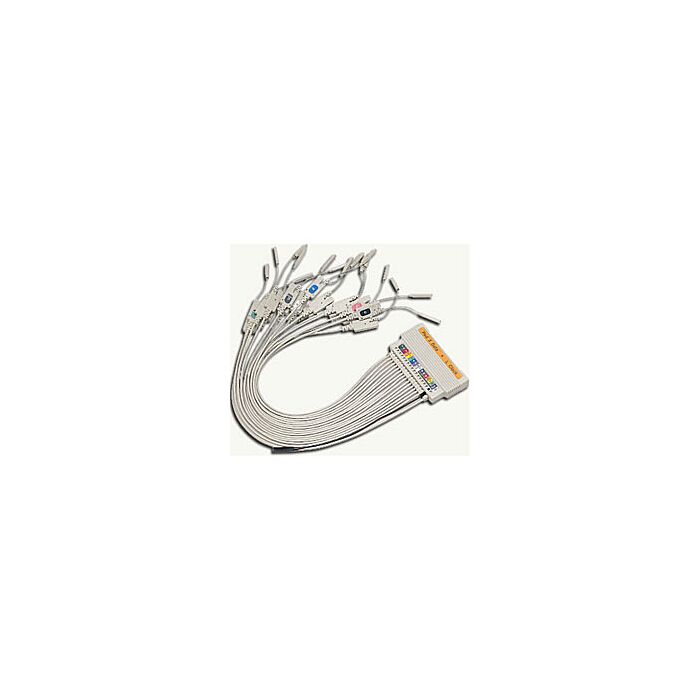

Keysight E5383B Probe, 17-Channel, Single-ended Flying Leads
Probe,17-Channel,Single-ended Flying Leads

Order #: E5383B

Mfg #: E5383B

Questions about availability or need help? Contact Us:

(800) 633-0561
$1,391.00

Keysight E5383B Probe, 17-Channel, Single-ended Flying Leads

Probe,17-Channel,Single-ended Flying Leads

Order #: E5383B

Mfg #: E5383B

$1,391.00
The E5383B flying lead set is the tool to use when probing points are dispersed on your target or a probing point was not designed in. This probe can be connected to designed-in connectors or used with the included IC test clip to attach to components and other board features. This probe can be used with any Keysight logic analyzer with a 40-pin cable connector.
Availability: Ships in 4-6 weeks
This product is available for shipping to the United States and Canada only.
This product is available for shipping to the United States and Canada only.
This product is available for shipping to the United States and Canada only.

Product Highlights

  • 17 channels: 16 single-ended data, 1 single-ended clock
  • 1.5 pF equivalent load capacitance
  • Equivalent to the logic analyzer data rate the probe is attached to
  • Measure signals with as little as 600 mV p-p signal amplitude
  • Acquire signals from randomly located points in your target
  • Can be connected to designed-in connectors or used with the included IC test clip
  • Logic analyzers with 40-pin cable connectors Logic Analyzer Cable Connectors
  • Connects to 0.63mm square pins or 0.66-0.84mm diameter round pins
