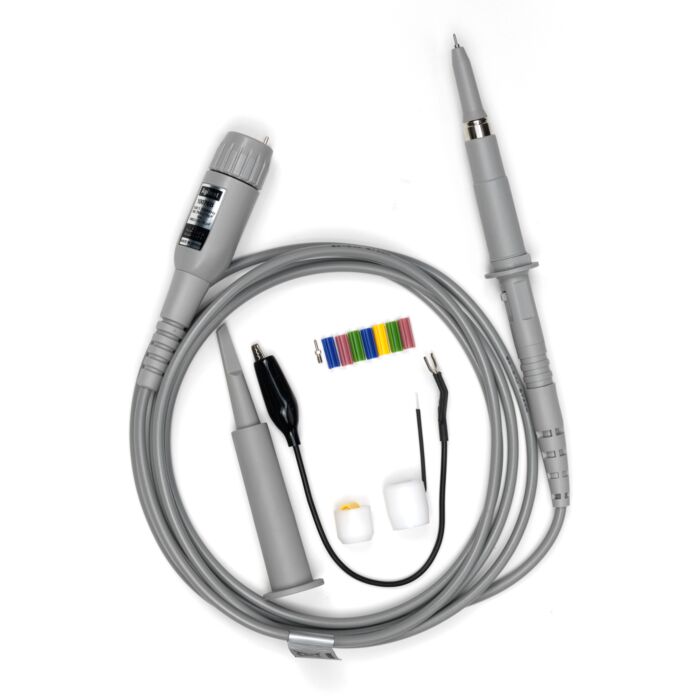

Keysight 10076C Passive Probe, 3kV High Voltage, 100:1, 500MHz
Passive Probe,3kV High Voltage 100:1,500MHz
Order #: 10076C
Mfg #: 10076C
$751.00
Keysight 10076C Passive Probe, 3kV High Voltage, 100:1, 500MHz
Passive Probe,3kV High Voltage 100:1,500MHz
Order #: 10076C
Mfg #: 10076C
$751.00
Availability: Ships in 4-6 weeks
![Loading...](https://www.transcat.com/static/version1724161005/frontend/Transcat/default/en_US/images/loader-1.gif)
Product Highlights
- Bandwidth (-3 dB): 500 MHz
- Rise time (calculated): <0.7 ns
- Attenuation ratio: 100:1
- Input resistance: 66.7 M Ω (when terminated into 1 M Ω) / Input capacitance: 3 pF (approximate)
- Compensation range: 7-20 pF
- Maximum input: 4000 Vpk
- Length: 1.8 m
- Probe ID: Yes
The Keysight 10076C 4 kV, 100:1 passive probe gives you the voltage and bandwidth you need for making high-voltage measurements. Its compact design makes it easier to probe today's small power electronics components, and its rugged construction means it can withstand rough handling without breaking. Compatible with 2000 X-, 3000 X-, 4000 X-, 6000 X-, 5000, 6000, 7000, 8000, 9000 and S-Series oscilloscopes.
