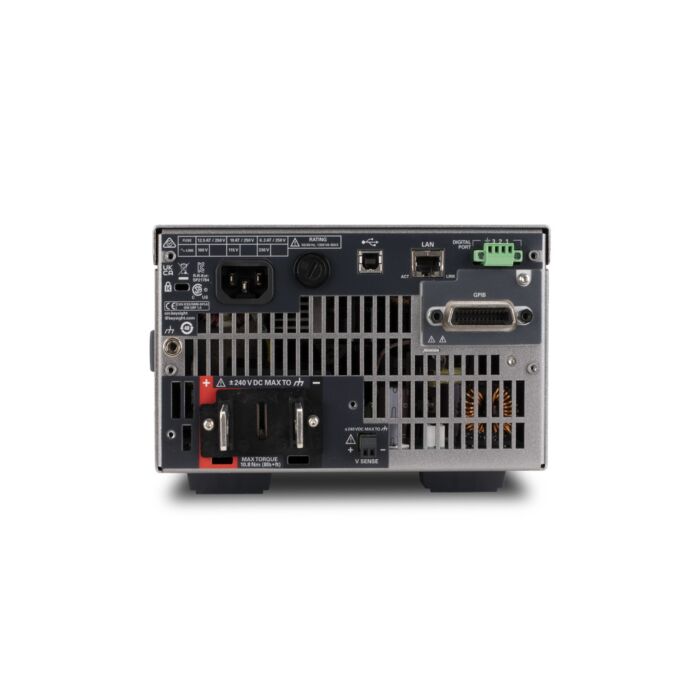

Keysight E36154A DC power supply, single-output, auto-range: 30V, 80A, 800W
DC power supply, single-output, auto-range: 30V, 80A, 800W
Order #: E36154A
Mfg #: E36154A
$3,820.00
Keysight E36154A DC power supply, single-output, auto-range: 30V, 80A, 800W
DC power supply, single-output, auto-range: 30V, 80A, 800W
Order #: E36154A
Mfg #: E36154A
$3,820.00
Availability:
In stock
![Loading...](https://www.transcat.com/static/version1724161005/frontend/Transcat/default/en_US/images/loader-1.gif)
Product Highlights
Features
- Plenty of usable power
- Autoranging
- Peak power handling up to 3X max power rating
- Safe, clean, and reliable power
- Low output ripple and noise
- Excellent line/load regulation
- 2-wire or 4-wire remote sense
- Detachable high current front binding post
- Over-voltage, over-current, and over-temperature protection
- Convenient benchtop capabilities and intuitive interfaces
- Thermal-control fan speed for minimal acoustic noise
- 4-wire front output terminal including sense and ground
- 4.3-inch LCD color display
- Individual knobs for voltage and current
- LAN/LXI, USB and GPIB (upgrade option) interfaces
- Advanced characterization
- Built-in voltage and current measurements
- Data logging
- Output sequencing and syncing with digital I/O
- LIST mode programming
- Low range current measurement
- Adjustable voltage slew rate
- Scope View (upgrade option)
- Arbitrary waveform generator (AWG) (upgrade option)
- Application Software and Automation
- BV0003B Pathwave BenchVue Power Supply App
- BV9200B/BV9201B BenchVue Advanced Power Control and Analysis
- Keysight E36150ADVU ScopeView & Arbitrary Waveform Generation CapabilitiesScopeView & Arbitrary Waveform Generation Capabilities
Order #: E36150ADVU
Mfg #: E36150ADVU
Availability: Ships in 3-4 weeks$525.00 - Keysight E363GPBU GPIB User Installable Interface ModuleGPIB User Installable Interface Module
Order #: E363GPBU
Mfg #: E363GPBU
Availability: Ships in 4-6 weeks$389.00
Model | E36154A | E36155A |
---|---|---|
Power Output | 800W | 800W |
No. of Channel | 1 | 1 |
DC Output Rating (0 to 40 °C) | 0 to 30 V | 0 to 60 V |
0 to 80 A | 0 to 40 A | |
Load Regulation ± (% of output + offset) | ||
Voltage | < 0.01% + 2 mV | |
Current | < 0.1% + 2 mA | |
Line Regulation ± (% of output + offset) | ||
Voltage | < 0.01% + 2 mV | |
Current | < 0.1% + 2 mA | |
Output Ripple and Noise (at approximately 23 °C) | ||
Normal mode voltage, Vpp (20 Hz to 20 MHz) | < 75 mV | |
Normal mode voltage, Vrms (20 Hz to 10 MHz) | < 5 mV | |
Programming Accuracy ± (% of output + offset) at 23 °C ± 5 °C for 12 months | ||
Voltage | 0.03% + 6 mV | 0.03% + 10 mV |
Current | 0.1% + 20 mA | 0.1% + 10 mA |
Readback Accuracy ± (% of output + offset) at 23 °C ± 5 °C for 12 months | ||
Voltage | 0.04% + 6 mV | 0.04% + 10 mV |
Current | 0.1% + 20 mA | 0.1% + 10 mA |
Low Range Current | 0.1% + 5 mA | 0.1% + 4 mA |
Load Transient Recovery Time | ||
Voltage Settling Band | 75 mV | 150 mV |
Time | < 1 ms |
