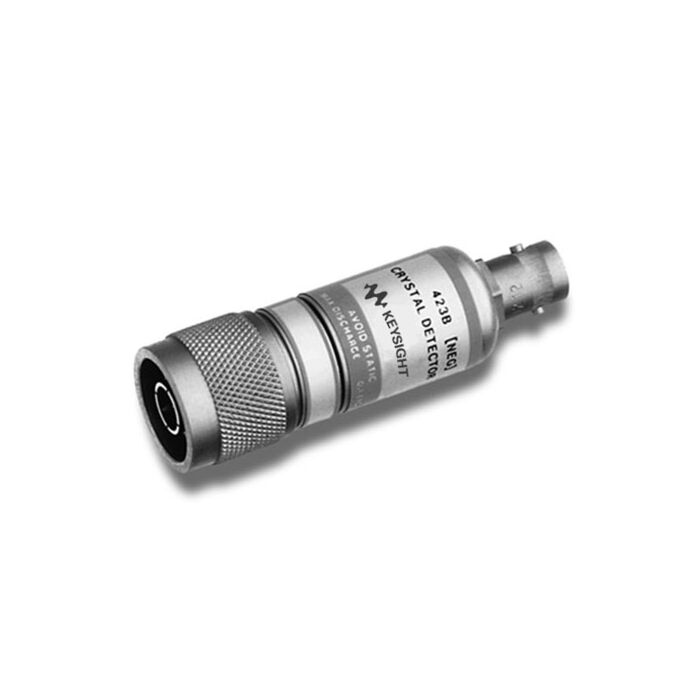

Keysight 423B Low-barrier Schottky Diode Detector
Low-barrier Schottky Diode Detector

Order #: 423B

Mfg #: 423B

Questions about availability or need help? Contact Us:

(800) 633-0561
$1,205.00

Keysight 423B Low-barrier Schottky Diode Detector

Low-barrier Schottky Diode Detector

Order #: 423B

Mfg #: 423B

$1,205.00
Availability: Ships in 4-6 weeks
This product is available for shipping to the United States and Canada only.
This product is available for shipping to the United States and Canada only.
This product is available for shipping to the United States and Canada only.

Product Highlights

  • The Keysight 423B Low-Barrier Schottky Diode detector has been widely used for many years in a variety of applications including leveling and power sensing. It offers good performance and ruggedness. Matched pairs (Option 001) offer very good detector tracking. A video load (Option 002) extends the square-law region to at least 0.1 mW (-10 dBm).
  • Frequency response: ±0.3 dB
  • Maximum SWR: 1.15 (10 MHz to 4 GHz), 1.3 (4 GHz to 12.4 GHz)
  • Low-level sensitivity: > 0.5 mV/uW
  • Output Polarity: Negative
  • Maximum operating input power: 200 mW
  • Typical short-term maximum input power (< 1 minute): 1 W
  • Noise: < 50 uV
