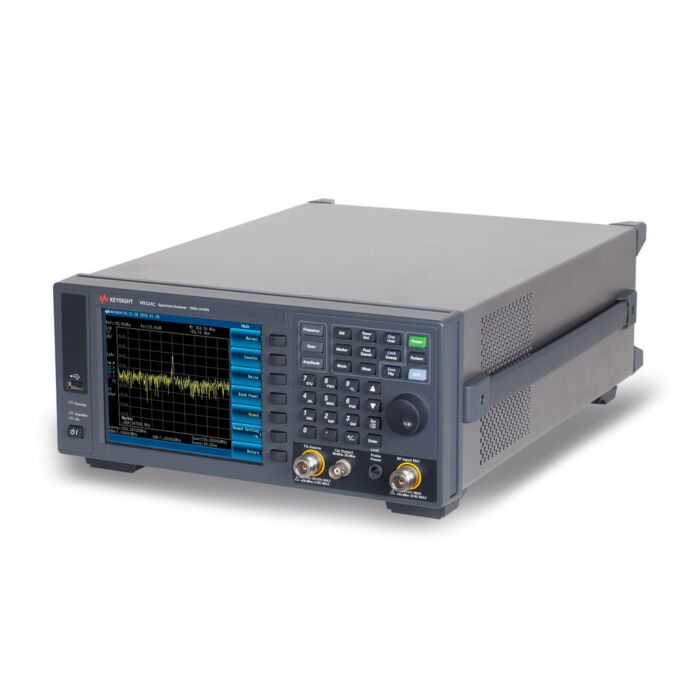

Keysight N9323C Basic Spectrum Analyzer, 1 MHz to 13.6 GHz
Basic Spectrum Analyzer, 1 MHz to 13.6 GHz
Order #: N9323C
Mfg #: N9323C
$22,071.00
Keysight N9323C Basic Spectrum Analyzer, 1 MHz to 13.6 GHz
Basic Spectrum Analyzer, 1 MHz to 13.6 GHz
Order #: N9323C
Mfg #: N9323C
$22,071.00
Availability: Ships in 4-6 weeks
Product Highlights
- 6.5" TFT color display with multiple language UI
- Multiple measurement modes: Spectrum analyzer (default), tracking generator, reflection measurement*, modulation analysis, and power meter mode
- One button power suite: channel power, OBW, ACPR, SEM, channel scanner and spectrogram
- User key for quick access to 18 frequently-used measurement configurations
- Tracking generator (including a built-in VSWR bridge*)
- 40 MHz calibration output
- Probe power
- RF input, 50 Ω
Reliable performance to microwave frequency range
- Frequency covers from 9 kHz to 4/7 GHz or 1 MHz to 13.6/20 GHz, with up to ± 0.1 ppm annual aging rate, reducing frequency drift for more accurate measurements
- Typical -162 dBm DANL allows to view low-level signals easily and clearly
- Typical ± 0.3 absolute amplitude accuracy provides you with greater confidence in power measurement results
Value-added capabilities help you gain more insight during RF design and troubleshooting
- Tracking generator with built-in VSWR bridge, supports transmission and reflection measurements 1
- Demodulation mode allows you to gain more insight easily and cost effectively into AM/FM and ASK/FSK signal analysis
- Supports Keysight U2000 Series and U2020 X-Series USB power sensors for precision power measurement
- Built-in DC input channel for AM/FM in-band, on-channel measurement, and xDSL measurement from 9 kHz to 10 MHz 1
Minimized learning curve enhances productivity
- User-definable softkeys provide quick access to 18 frequently used measurement setups, helping you easily switch from one task to another
- Task planner makes testing fast and easy by automating testing using pre-defined test routines
- SCPI commands compatible with Keysight ESA Spectrum Analyzer Series
Each Unit Includes
Accessories supplied as standard with each analyzer: USB cable, N-BNC adapter, BNC cable and power cord.
- Keysight Y1820A Hard transit case, 645 x 444 x 268 mm, 13 kg nominalHard transit case, 645 x 444 x 268 mm, 13 kg nominal
Order #: Y1820A
Mfg #: Y1820A
Availability: Ships in 4-6 weeks$601.00 - Keysight Y1821A Rack mount kitRack mount kit
Order #: Y1821A
Mfg #: Y1821A
Availability: Ships in 4-6 weeks$157.00 - Keysight Y1822A Rack mount kit with handleRack mount kit with handle
Order #: Y1822A
Mfg #: Y1822A
Availability: Ships in 4-6 weeks$298.00
Frequency Range | 1 kHz - 13.6 GHz |
Reference Aging Rate | ± 1 ppm, ± 0.1 ppm (w/Opt. PFR) |
Absolute Amplitude Accuracy | ± 0.3 dB |
Displayed Average Noise Level, 1 GHz (typical) | -154 dBm/Hz |
Resolution Bandwidth | 10 Hz - 3 MHz |
Third-Order Intercept (TOI) | +9 dBm |
Input Attenuator | 0 to 50 dB, in 5 db steps |
Phase Noise, 100 kHz offset | -97 dBc/Hz |
