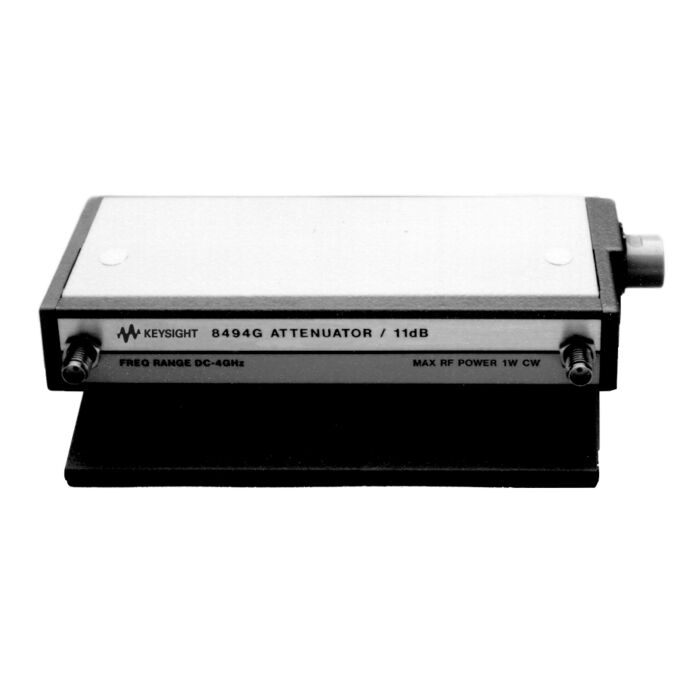

Keysight 8494G Programmable Attenuator, 4GHz, 11dB, 1dB Steps
Programmable Attenuator,4GHz 11dB,1dB Steps
Order #: 8494G
Mfg #: 8494G
$2,200.00
Keysight 8494G Programmable Attenuator, 4GHz, 11dB, 1dB Steps
Programmable Attenuator,4GHz 11dB,1dB Steps
Order #: 8494G
Mfg #: 8494G
$2,200.00
Availability: Ships in 4-6 weeks
Product Highlights
- Frequency range: dc to 4 GHz
- Insertion loss at 0 dB: 0.6 dB + 0.09 dB/GHz
- Maximum SWR: 1.5
- Repeatability life: 0.03 dB max 5 million cycles per section, typical
- 5 million cycles per section
- Maximum RF input power: 1 W (average), 100 W (peak)
- Connector type: choice of Type-N female, SMA female, APC-7
- Programming connector: 12-pin Viking, optional 14-pin DIP
