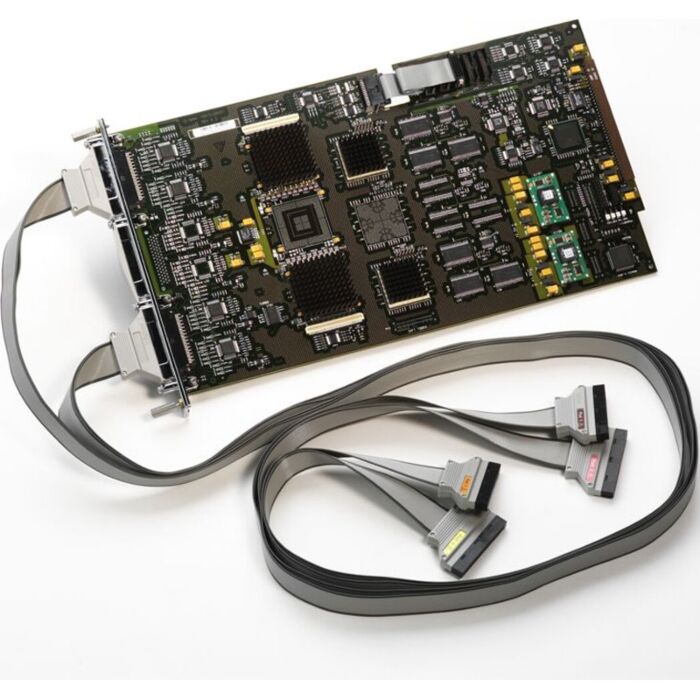

Used Keysight / Agilent 16911A Logic Analysis Module, 68 Channel, 4GHz Timing/250MHz State
Logic Analysis Module,68-Chan. 4GHz Timing/250MHz State
Order #: 16911A-USED
Mfg #: 16911A
$995.00
Used Keysight / Agilent 16911A Logic Analysis Module, 68 Channel, 4GHz Timing/250MHz State
Logic Analysis Module,68-Chan. 4GHz Timing/250MHz State
Order #: 16911A-USED
Mfg #: 16911A
$995.00
Request a Used Instrument Quote
Have a Question? Speak to a Transcat Expert: 800.264.4059
Transcat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support
Availability: Call for Availability
This item is available as RENTAL at
Call for price
Shop now
Product Highlights
Timing Analysis (Asynchronous Sampling)
- 4 GHz (250 ps) timing zoom with 64 K memory
- 1.0 GHz / 500 MHz (half / full-channel) conventional timing with deep memory
- 500 MHz transitional timing
State Analysis (Synchronous Sampling)
- State clock rates up to 450 MHz
- Data rates: up to 500 Mb/s
- Automated threshold/sample position setup for accurate measurements on high-speed buses
- Simultaneous eye diagrams on all channels identify problem signals quickly
Configuration Considerations
- 68-channels per module, combine up to 5 modules for 340 channels
- Selectable memory depths: 1 M, 4 M, 16 M, 32 M
- Compatible with 40-pin logic analyzer probes. Probes are ordered separately.
- Compatible with 16900 Series modular logic analyzers
Additional Capabilities
- Comprehensive single-ended signal support, threshold is adjustable from -5 V to 5 V (10 mV increments)
