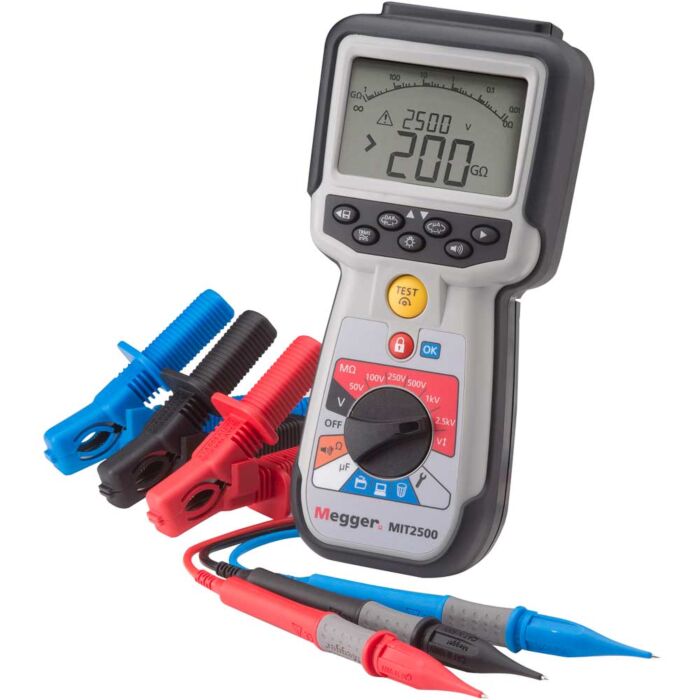

Megger MIT2500 Insulation & Continuity Tester, 50V to 2.50 kV
Order #: MIT2500
Mfg #: 1004-745
Designed for field and workshop testing of electrical motors, cable testing, general installation testing and specialist measurement where insulation test voltages up to 2500V are required.
Be sure to Login to transcat.com for preferred member pricing.
Product highlights
The MIT2500 high voltage handheld insulation and continuity tester has been designed for motor and cable testing, specialist applications, and electrical testing applications, where operation voltages exceed 1000 V and higher insulation test voltages are needed.
The MIT2500 offers both fixed range voltages of 50 V, 100V, 250 V, 500 V, 1000 V, and 2500 V, as well as a variable range that allows any voltage between 50 V and 2500 V to be 'dialled in'. This is supported by the new test voltage feedback control, which maintains the output test voltage to within 2 % of the selected range, even when under test. The feedback-controlled insulation test voltage is now accurate to +2 % -0 % compared to the original +20 %, providing a more accurate test voltage without the risk of overvoltage damage to circuits. A variable range allows the exact test voltage to be selected from 50 V to 999 V in 1 V steps, (1 kV to 2.5 kV in 10 V steps) providing 1100 test voltage options.
The MIT2500 uses a redesigned case, back-stand, and six cell battery compartment, as well as incorporating a guard terminal to reduce surface leakage currents that reduce accuracy at higher voltages. All instruments are over-molded for increased protection and have an IP54 weatherproof rating.
- Designed for Motor and Cable Testing, Specialist Applications and Electrical Testing Markets
- Insulation Testing to 2.50 Kv (New)
- 200 GΩ Measurement Range at ≥ 1.00kv
- Guard Terminal for Testing of Equipment With High Surface Leakage Issues
- Stabilized Insulation Test Voltage to -0% +2% +/-2V
- Variable Insulation Test Voltage from 50V to 999 V in 1V Steps
- Variable Insulation Test Voltage from 1.00 Kv to 2.50kv in 10V Steps
- Single Range, Fast Continuity Testing from 0.01Ω to 1MΩ
- 0.01mv to 600V TRMS AC and DC Voltage Measurement
- Test Result Storage and Bluetooth Downloading
- Live Circuit Detection and Protection
- CATIV 600V Applications & IP54 Environmental Protection
- Rechargeable Options for Mains and Car Charging
Each Unit Includes
- Red/Black/Blue 1 kV silicone test leads with probes and clips 1007-781
- Red/Black/Blue 2.50 kV silicone test leads with clips 1007-637
- Owners Information CD download at www.megger.com
- Batteries 6 x AA Alkaline 1002-753
- Hard carry case 2006-649
- Download manager software
